 Configuration 3: Liquid with cylinder, atomizing and fan air – for SSCo. VAU and VMAU spray nozzles.
HMI Control Panel Specifications

4.3" HMI Touch Screen display unit featuring custom programming.

UL Type 1, stainless steel control panel.
Not explosion proof (Non-Ex).
o

Power ON/OFF switch with Power on LED indicator light.

Power input 110-240VAC, 50/60 1 ph., 5A.
Global compatibility Multi-voltage power cords available
o

Output 24 Vdc
3 amps dedicated to electric spray nozzles and sensors
o

Inputs for 1 analog inputs, 2 digital inputs and 1 digital output.

Features local and remote triggering options.

Can control and drive up to eight (8) Spraying Systems Co. electric spray nozzles
AA10000AUH-03 PulsaJet
o
AA10000JJAU PulsaJet air atomizing spray nozzles – Eight (8)
o
AA10000AUH-10 PulsaJet spray nozzles – Three (3)
o
AA10000AUH-30 PulsaJet spray nozzles – One (1)
o
AA250AUH Electric spray nozzles - Eight (8)
o

Digital output for air atomizing solenoids.

Offers dual digital inputs for conveyor interlock type trigger.

Independent timing ranges for spray and delay adjustable from 0 to 9999 seconds.

Delays for atomizing air (anticipator and follower times) can be set 0 to 60 seconds.

0 – 100% duty cycle adjustment for PulsaJet and other electric spray nozzles.

Offers easy to use timing modes of Fixed Spray Time; Variable Spray Time, and Repeat.

Power cord, 6 ft. (2m) length.

Ambient temperature ratings for electric control panel:
41° F Minimum (5°C)
o
104° F Maximum (40°C)
o
Enclo sure and Process Components

Air piloted liquid pressure regulator.

Externally mounted liquid strainer with 100 mesh filter.

1/2" NPT female inlet for compressed air feed - 100 psi (7 bar) max. – English connections
1/2" BSPT female inlet for compressed air feed - 7 bar (100 psi) max. – Metric connections
o
 1/2" O.D. tube inlet and outlet connections for air and liquid - English
12 mm O.D. tube inlet and outlet connections for air and liquid - Metric
o

1/4" O.D. tube cylinder air outlet - English
8

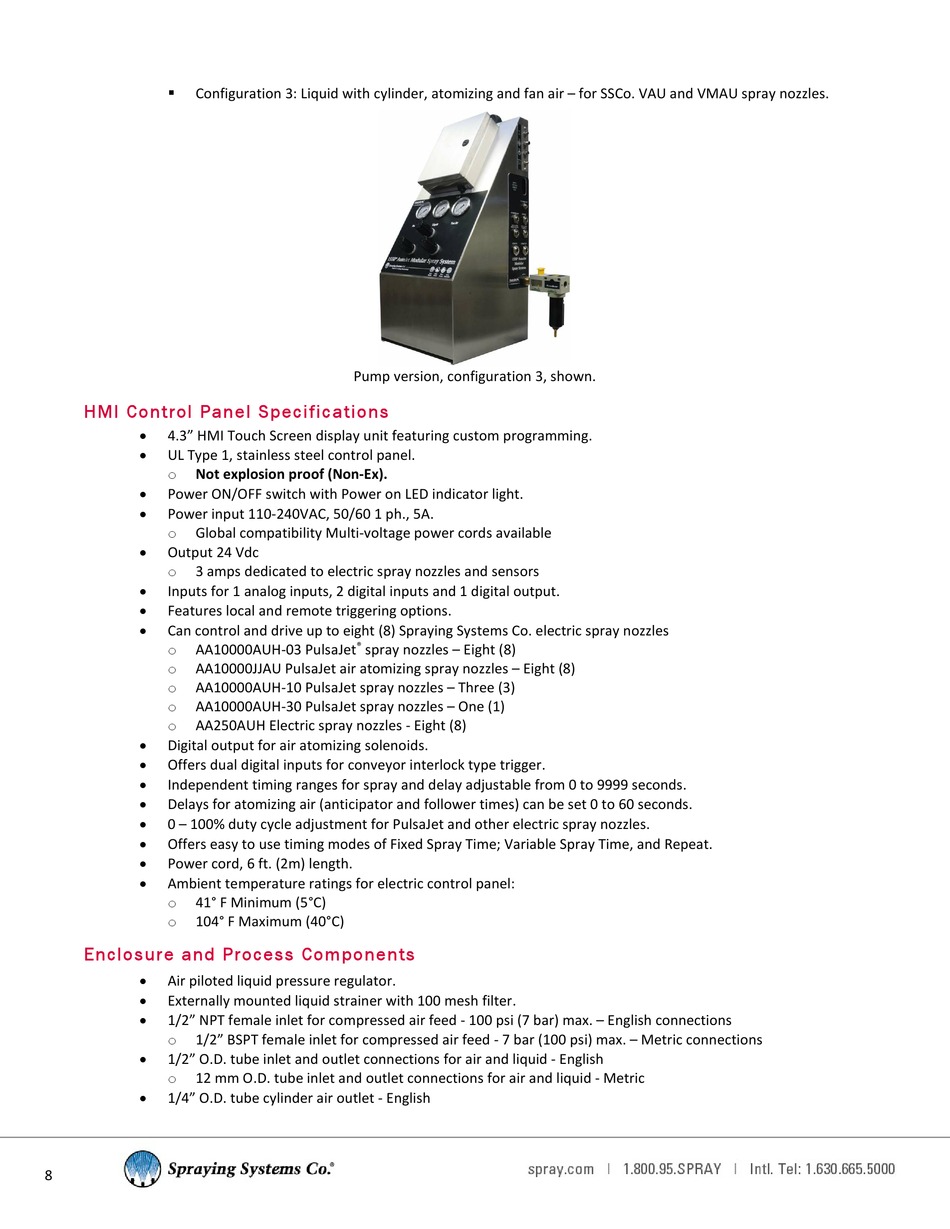

Pump version, configuration 3, shown.
®
spray nozzles – Eight (8)
