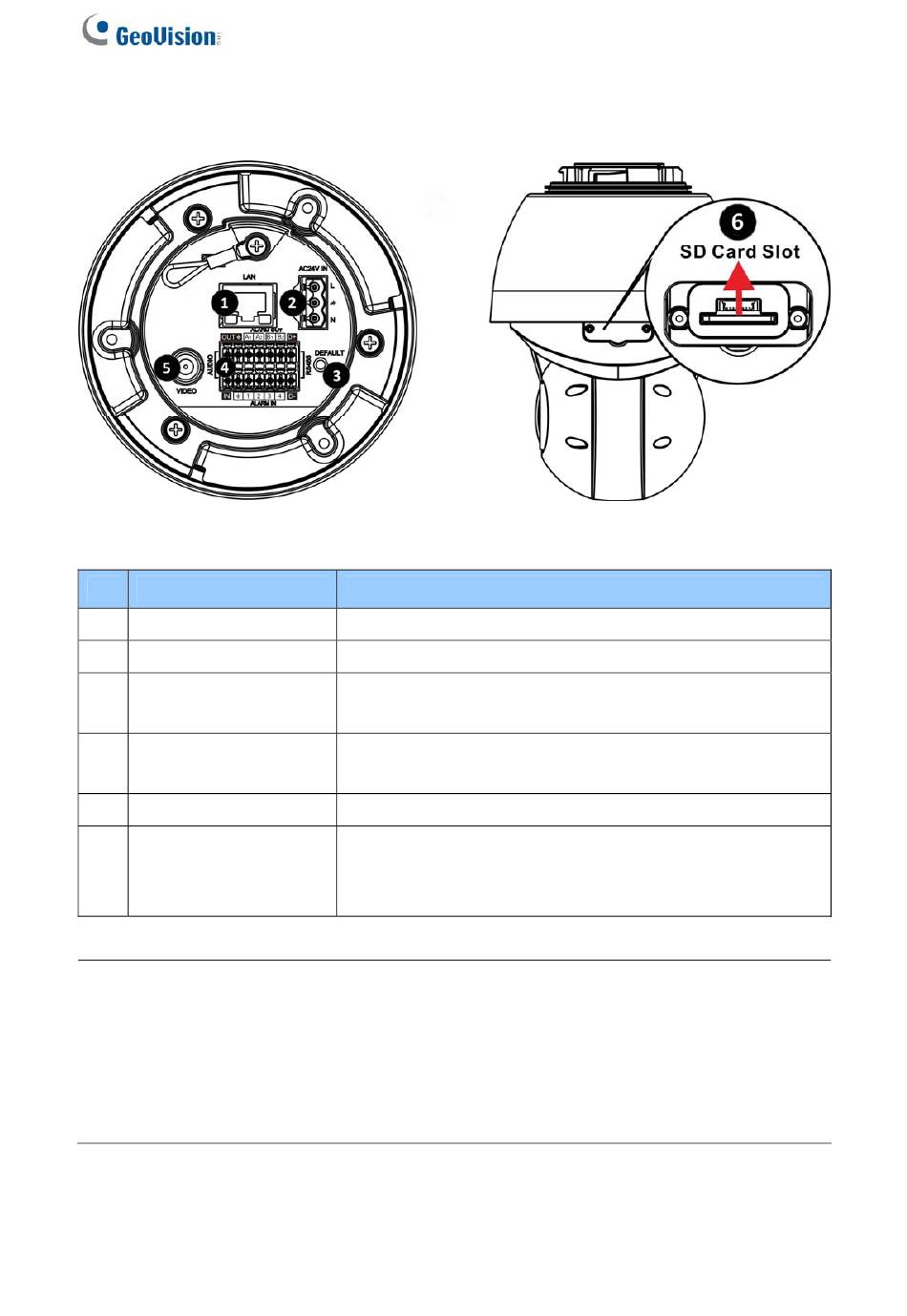

1.3 Overview of GV-QSD5731-IR

No. Name
RJ-45 Port
1.
2. Power Connector
Default Button
3.
Audio/Alarm I/O &
4.
RS-485 Connector
BNC
5.
6. SD Card Slot
Note:
1. Do NOT connect external power supply to the I/O connector of the camera.
2. It is not recommended to record with the SD card for 24/7 continuously, as it may not
be able to support long term continuous data read/write.
3. The Audio In port only supports microphones with power supply.
Function
For network and PoE connection
AC 24V power connection
Press the button with a proper tool for at least 20 seconds
to restore the system.
Audio/Alarm I/O & RS-485 connection
For analog video output
Open the dome cover and insert the SD card into the card
slot to store videos and snapshots. Do not remove the SD
card when the camera is powered on.
