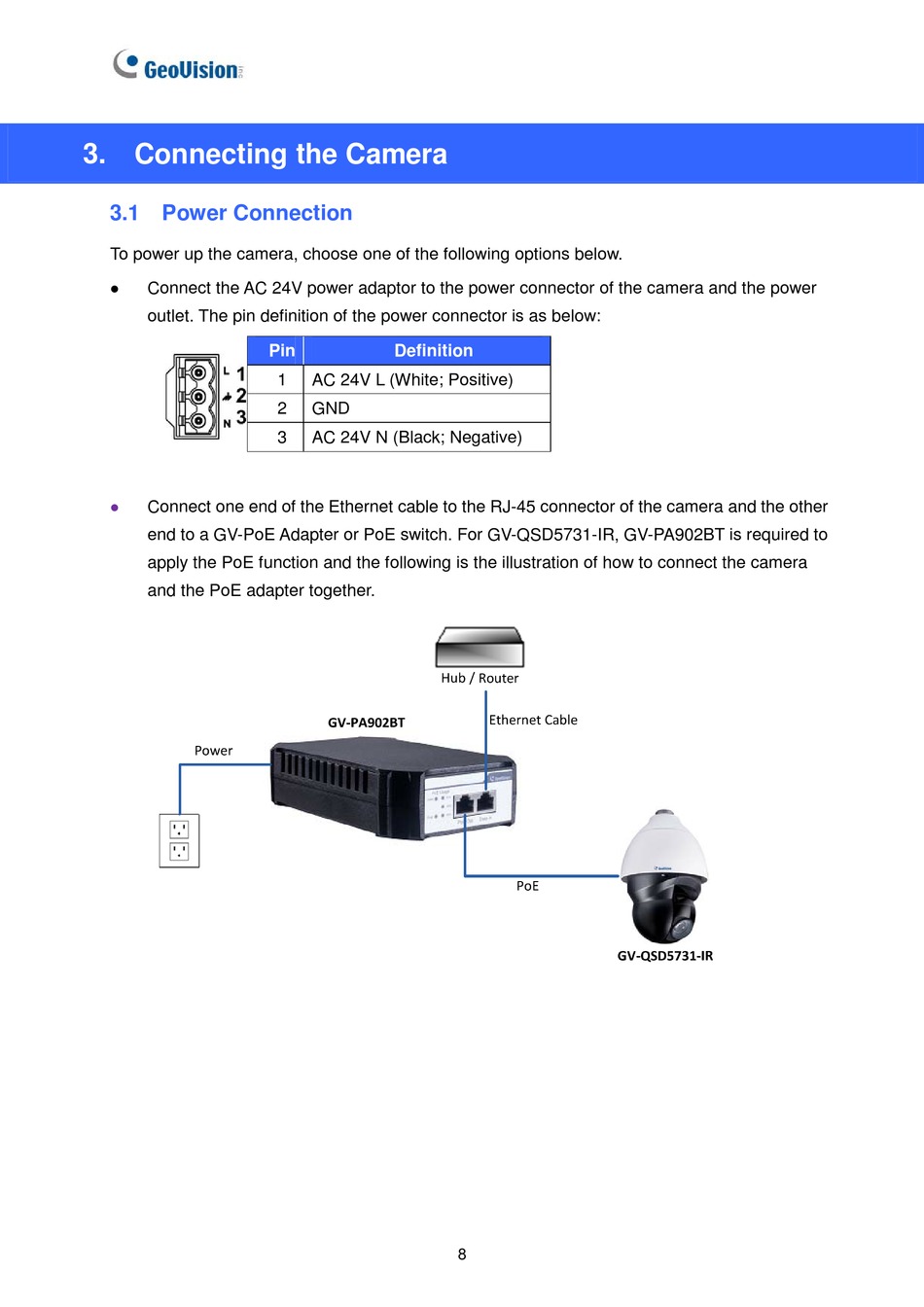

3. Connecting the Camera

3.1 Power Connection

To power up the camera, choose one of the following options below.
Connect the AC 24V power adaptor to the power connector of the camera and the power

outlet. The pin definition of the power connector is as below:
Connect one end of the Ethernet cable to the RJ-45 connector of the camera and the other

end to a GV-PoE Adapter or PoE switch. For GV-QSD5731-IR, GV-PA902BT is required to
apply the PoE function and the following is the illustration of how to connect the camera
and the PoE adapter together.
Pin Definition
1 AC 24V L (White; Positive)
2 GND
3 AC 24V N (Black; Negative)
