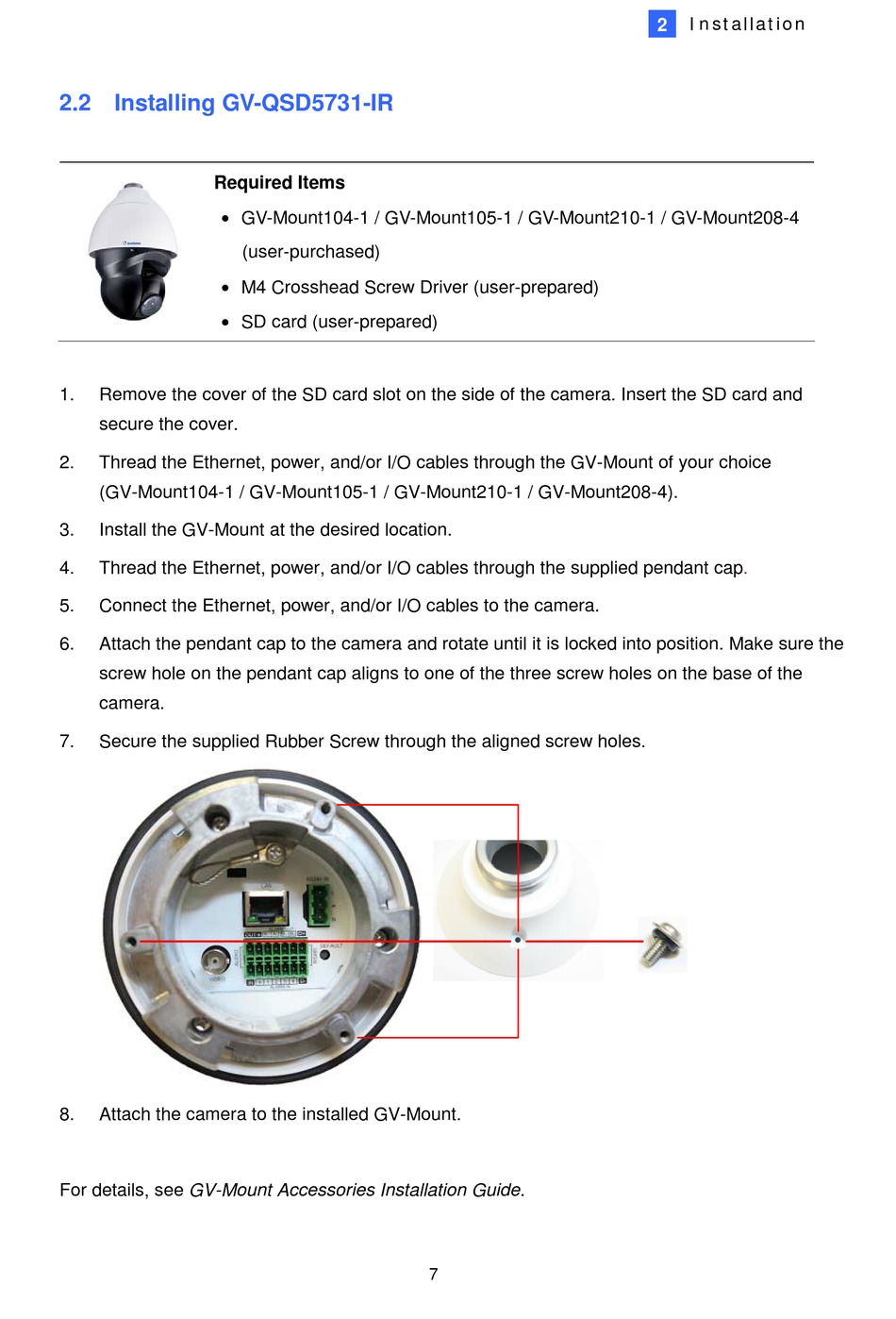

2.2 Installing GV-QSD5731-IR

Required Items
 GV-Mount104-1 / GV-Mount105-1 / GV-Mount210-1 / GV-Mount208-4
 M4 Crosshead Screw Driver (user-prepared)
 SD card (user-prepared)
1. Remove the cover of the SD card slot on the side of the camera. Insert the SD card and
secure the cover.
2. Thread the Ethernet, power, and/or I/O cables through the GV-Mount of your choice
(GV-Mount104-1 / GV-Mount105-1 / GV-Mount210-1 / GV-Mount208-4).
3. Install the GV-Mount at the desired location.
4. Thread the Ethernet, power, and/or I/O cables through the supplied pendant
5. Connect the Ethernet, power, and/or I/O cables to the camera.
6. Attach the pendant cap to the camera and rotate until it is locked into position. Make sure the
screw hole on the pendant cap aligns to one of the three screw holes on the base of the
camera.
7. Secure the supplied Rubber Screw through the aligned screw holes.
8. Attach the camera to the installed GV-Mount.
For details, see GV-Mount Accessories Installation Guide.
