OPERATION
3.7.2 VARIABLES Pages
Three pages (four pages in the dual channel configuration) are used to display the
system variables. They can be adjusted by using the
buttons.
Use the Up () and
To select a variable for adjustment, scroll to the desired variable and press the
.
button A small box will appear beside the value to indicate that it can be adjusted. Use
Up
the () and
can be changed at a faster rate by extending the duration of the
Down ( ) button press.
3.7.3

Single Channel Configuration VARIABLES Pages

For more information on each variable refer to Appendix B
VARIABLES Page 1
Variable
UNITS
apply
alarm
OP1min
OP1max
OP2min
24
Down ( ) buttons to scroll through the list and from page to page.
Down ( ) buttons to change the value. NOTE: Numerical values
VARIABLES PAGE 1/3
UNITS Dew Point
n/a
apply
alarm 0
-100
OP1 MIN
OP1 MAX 20
OP2 MIN 0

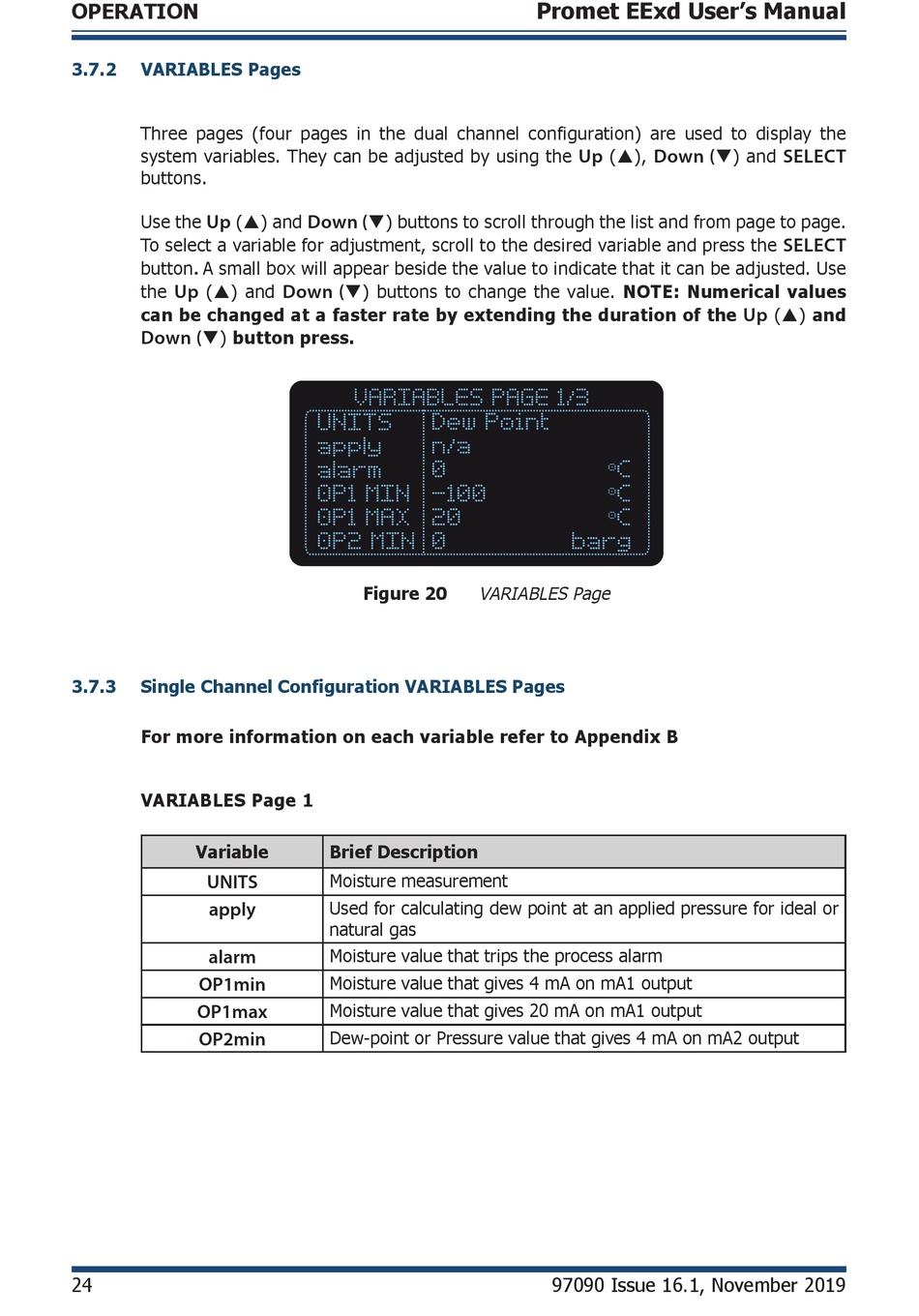

Figure 20
Brief Description
Moisture measurement
Used for calculating dew point at an applied pressure for ideal or
natural gas
Moisture value that trips the process alarm
Moisture value that gives 4 mA on mA1 output
Moisture value that gives 20 mA on mA1 output
Dew-point or Pressure value that gives 4 mA on mA2 output
Promet EExd User's Manual
Up (),
o C
C
o
C
o
barg
VARIABLES Page
97090 Issue 16.1, November 2019
Down ( ) and SELECT
SELECT
Up () and
