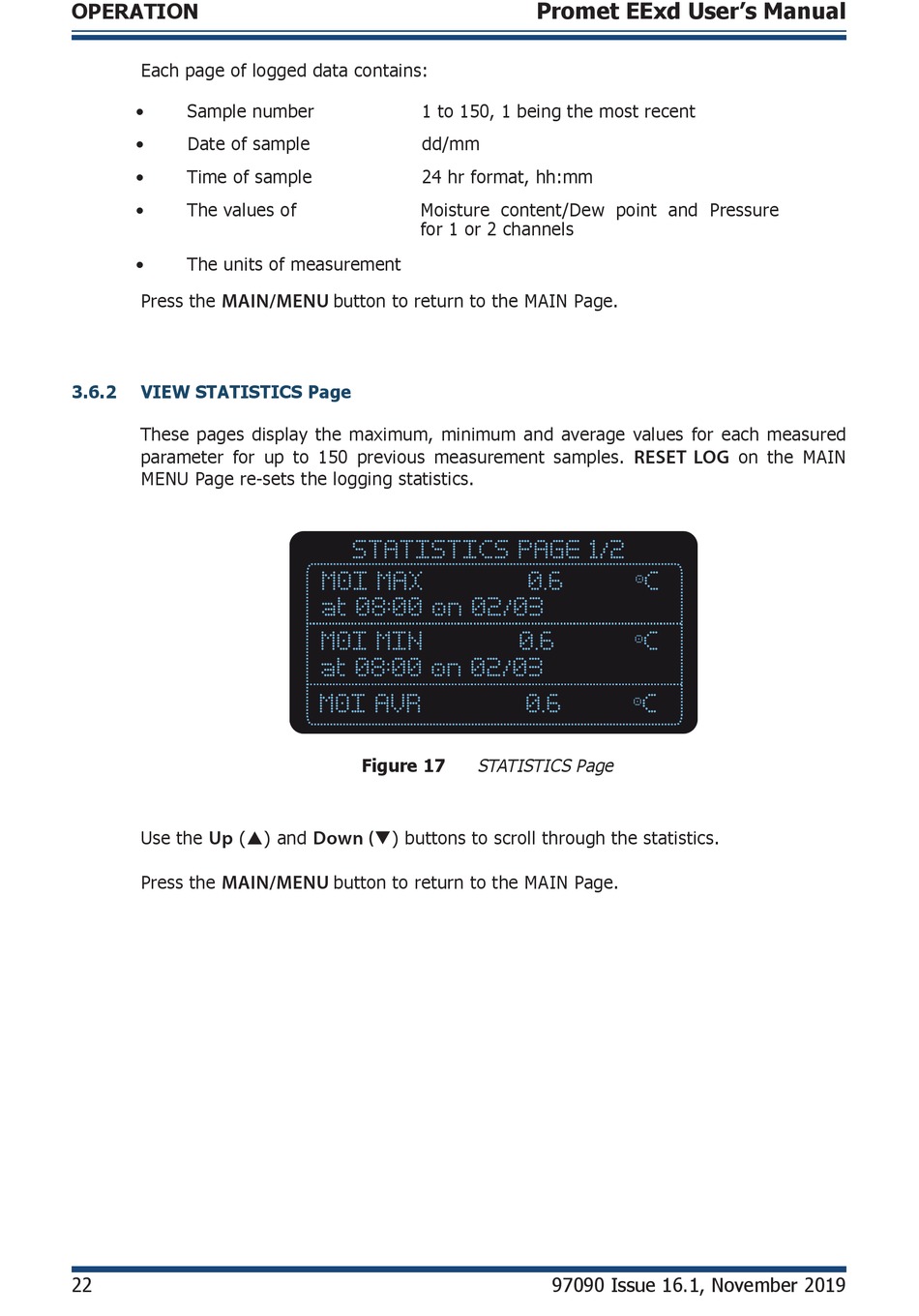

View Statistics Page; Figure 17 Statistics Page - Michell Instruments Promet EExd User Manual

Process moisture analyzer
Hide thumbs Also See for Promet EExd:
Table of Contents

Advertisement

OPERATION
Each page of logged data contains:
Sample number
Date of sample
Time of sample
The values of
The units of measurement
MAIN/MENU
Press the
3.6.2

VIEW STATISTICS Page

These pages display the maximum, minimum and average values for each measured
parameter for up to 150 previous measurement samples.
MENU Page re-sets the logging statistics.
Up
Use the
() and
MAIN/MENU
Press the
22
1 to 150, 1 being the most recent
dd/mm
24 hr format, hh:mm
Moisture content/Dew point and Pressure
for 1 or 2 channels
button to return to the MAIN Page.
STATISTICS PAGE 1/2
MOI MAX
at 08:00 on 02/03
MOI MIN
at 08:00 on 02/03
MOI AVR
Figure 17
STATISTICS Page
Down (
) buttons to scroll through the statistics.
button to return to the MAIN Page.
Promet EExd User's Manual
RESET LOG
0.6
C
o
0.6
C
o
0.6
C
o
97090 Issue 16.1, November 2019
on the MAIN
