E-Mon® Series Global User Manual
4. Front Panel Display & Navigation
The meter features a front panel LCD display which is a graphical display with 4 lines and 8
digits, and menu buttons allow you to monitor, operate, or modify parameter settings. The
device status is shown with signaling LED above the front panel display.
The front panel also allows you to display, configure and reset several parameters.
On initial start-up of the meter, the screen displays default menu options as shown in section
4.2. The users can check total energy, peak value of the energy and time stamp (Date & Time).
The menu items can further be navigated using SET button for subsequent measurements
and setup.
NOTE
Electrostatic charge possible, kindly check and discharge before touching the panel.
The peak value is recorded and displayed every 15 minutes to monitor the demand and limits
of the power system. The initial screen is visible at idle mode or during inactivity, refer to
section 4.3 for the default screen. The main menu options are accessible by processing the
SET button and then using the up/down arrow buttons.
Page | 28

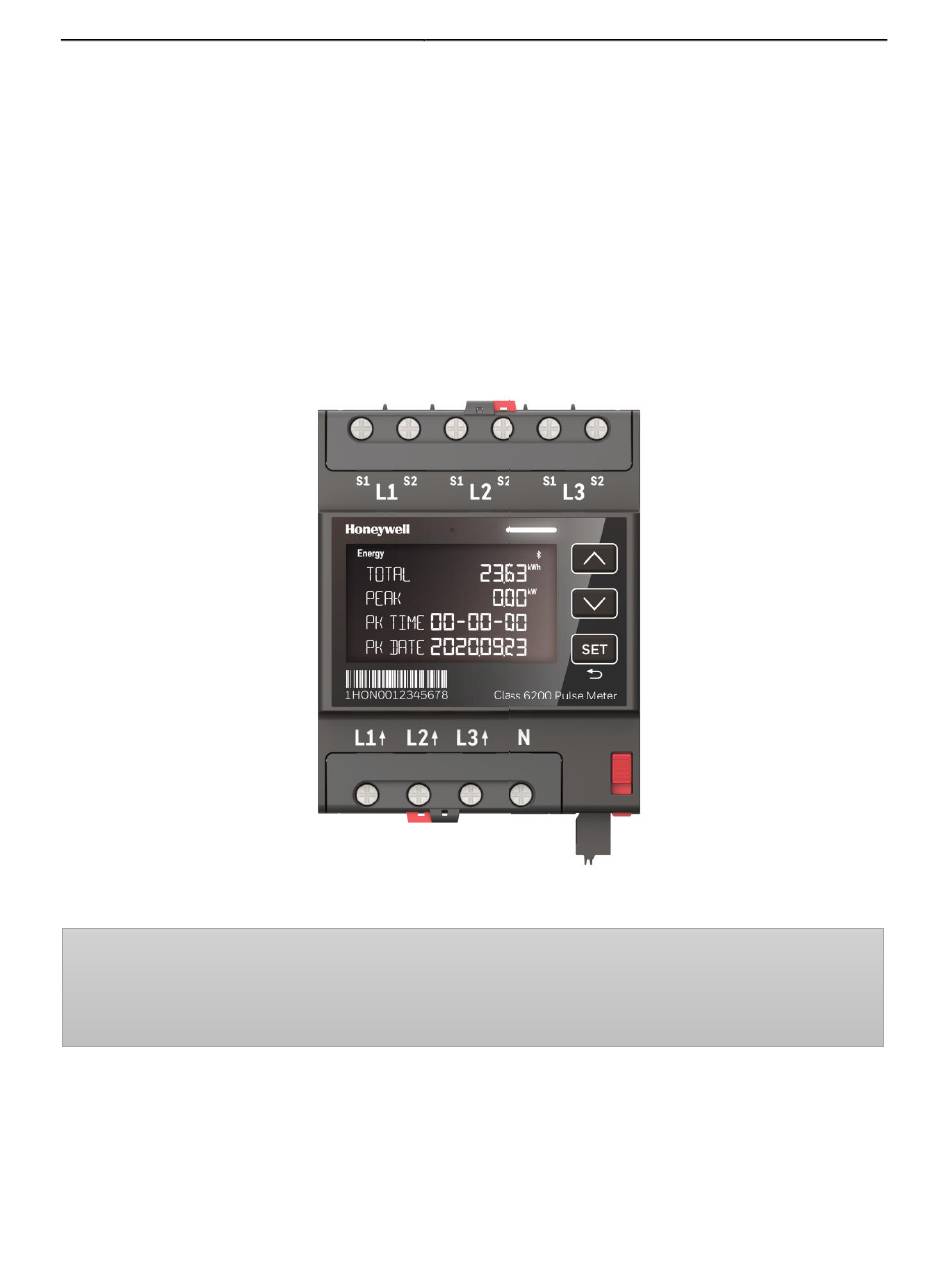

Figure 12. Meter Primary screen
Front Panel Display & Navigation
54-000-01-ENG01-0121
