Chapter 4 Keypad

4.1 Keypad description

The keypad is used to control Goodrive10 series VFDs, read the state data and adjust parameters. If you
need to use the keypad in another place rather than on the VFD, use a network cable with a standard RJ45
crystal head as the extension cable.
Note: Fix the external keypad with M3 screws or the installation bracket. The installation bracket is optional.
No. Name
1 State LED
2 Unit LED
3

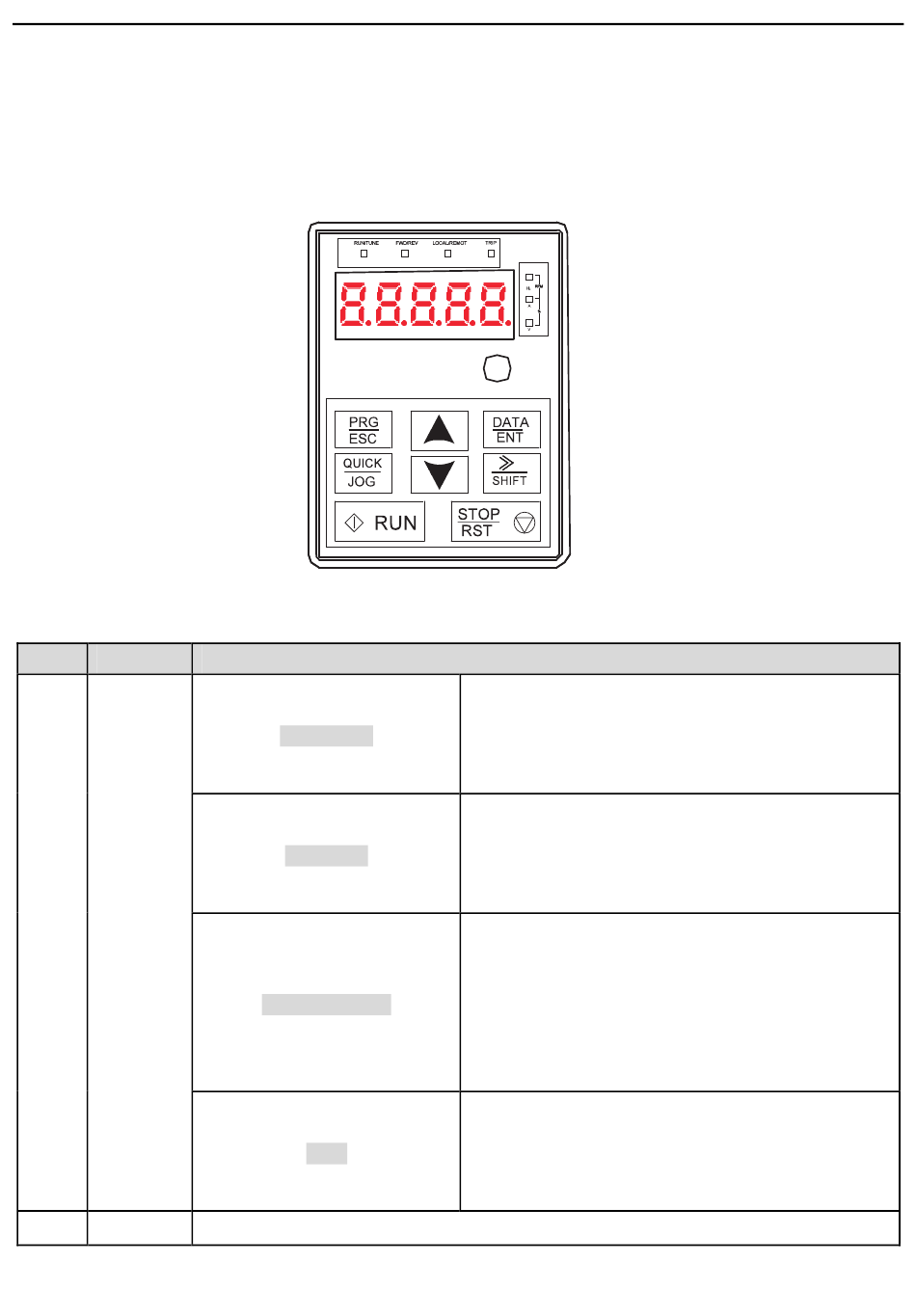

Figure 4-1 Keypad
RUN/TUNE
FWD/REV
LOCAL/REMOT
TRIP
Mean the unit displayed currently
1
2
4
5
Description
LED off means that the VFD is in the stopping state;
LED blinking means the VFD is in the parameter
autotune state; LED on means the VFD is in the
running state.
FED/REV LED
LED off means the VFD is in the forward rotation
state; LED on means the VFD is in the reverse
rotation state
LED for keypad operation, terminals operation and
remote communication control
LED off means that the VFD is in the keypad
operation state; LED blinking means the VFD is in
the terminals operation state; LED on means the
VFD is in the remote communication control state.
LED for faults
LED on when the VFD is in the fault state; LED off in
normal state; LED blinking means the VFD is in the
overload pre-alarm state.
