Wiring Terminals - Automation Direct ProSense DPM1 Series User Manual

User Manual - DPM1 Series Panel Meters

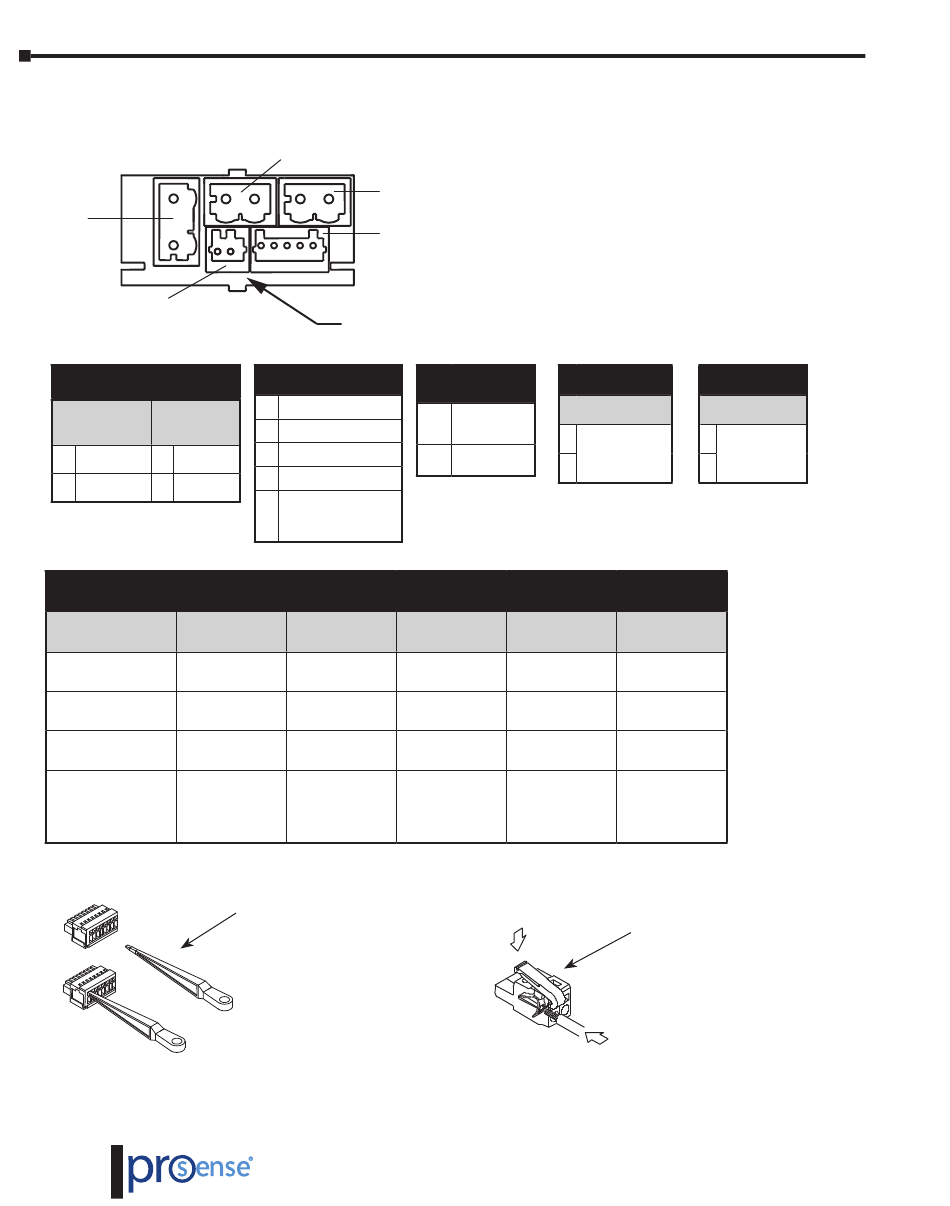

Wiring Terminals

1
CN1
2
2
CN3
CN1
AC DC
Supply Supply
1 Line 1 -VDC
2 Neutral 2 +VDC
Connector CN1
0.08 to 2.5mm²
Wire cross section
(28 to 12 AWG)
Strip length 8 to 9mm
Wago 231-
Manufacturer
202/026-000
Insertion tool or
Cage clamp screwdriver with
connection 0.5 mm x 3.0 mm
blade
CN2 and CN3 Terminals
8
CN4
CN5
1 2 1 2
CN2
1
5 4 3 2 1
Analog output terminals
(DPM1-A-A2R-H &
DPM1-A-A2R-L only)
CN2
1 +60V / +10VDC
2 +20mA DC
3 +100mV
4 -IN / - Excitation
+Excitation
5
(20V±5VDC @
30mA)
Terminals
CN2
0.08 to 0.5mm² 0.08 to 0.5mm²
(28 to 20 AWG) (28 to 20 AWG)
5 to 6mm 5 to 6mm
Wago 733-105 Wago 733-102
Insertion tool or Insertion tool or
screwdriver with screwdriver with
0.3 mm x 1.8 mm 0.3 mm x 1.8 mm
blade blade
Insertion Tool (included with meter)
Insert wires into the proper terminal
while using the insertion tool to open
the clip inside the connector. Release
the insertion tool to fix wire to the
terminal.
DPM1 User Manual, 1st Edition
CN3*
Relay 1
1 -0/4-20mA
1
N.O. Contact
2 +0/4-20mA
2
* Analog output terminals
(DPM1-A-A2R-H & DPM1-A-A2R-L
only)
CN3 CN4
0.08 to 2.5mm²
(28 to 12 AWG)
8 to 9mm
Wago 231-
102/026-000
Insertion tool or
screwdriver with
0.5 mm x 3.0 mm
blade
CN1, CN4 and CN5 Terminals
CN4 CN5
Relay 2
1
N.O. Contact
2
CN5
0.08 to 2.5mm²
(28 to 12 AWG)
8 to 9mm
Wago 231-
302/026-000
Insertion tool or
screwdriver with
0.5 mm x 3.0 mm
blade
Insertion Tool (included with meter)
Insert wires into the proper terminal
while using the insertion tool to open
the clip inside the connector. Release
the insertion tool to fix wire to the
terminal.
