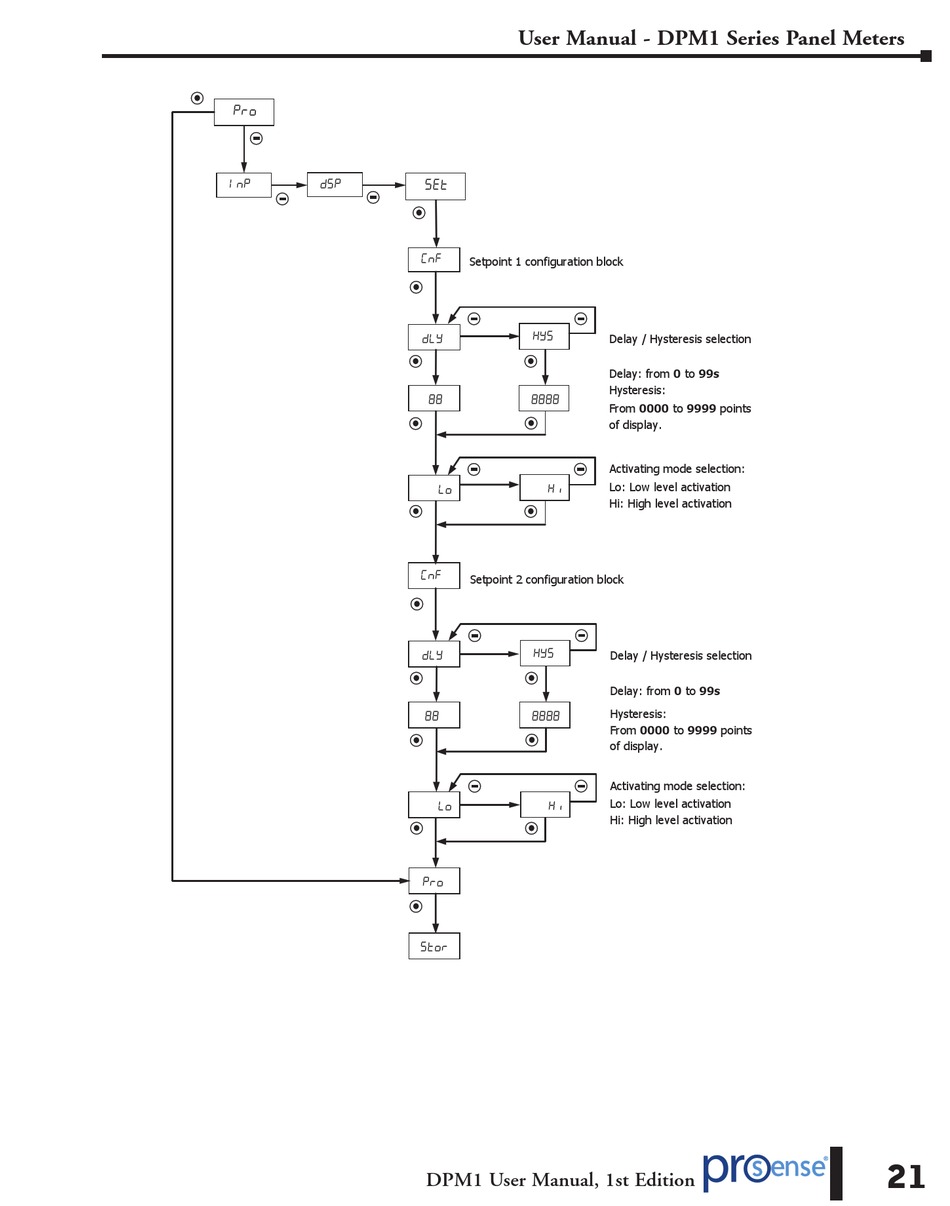

User Manual - DPM1 Series Panel Meters


Setpoint 1 configuration block


 



Setpoint 2 configuration block


 
 


DPM1 User Manual, 1st Edition
Delay / Hysteresis selection
Delay: from 0 to 99s
Hysteresis:
From 0000 to 9999 points
of display.
Activating mode selection:
Lo: Low level activation
Hi: High level activation
Delay / Hysteresis selection
Delay: from 0 to 99s
Hysteresis:
From 0000 to 9999 points
of display.
Activating mode selection:
Lo: Low level activation
Hi: High level activation
21
