Display Configuration


 



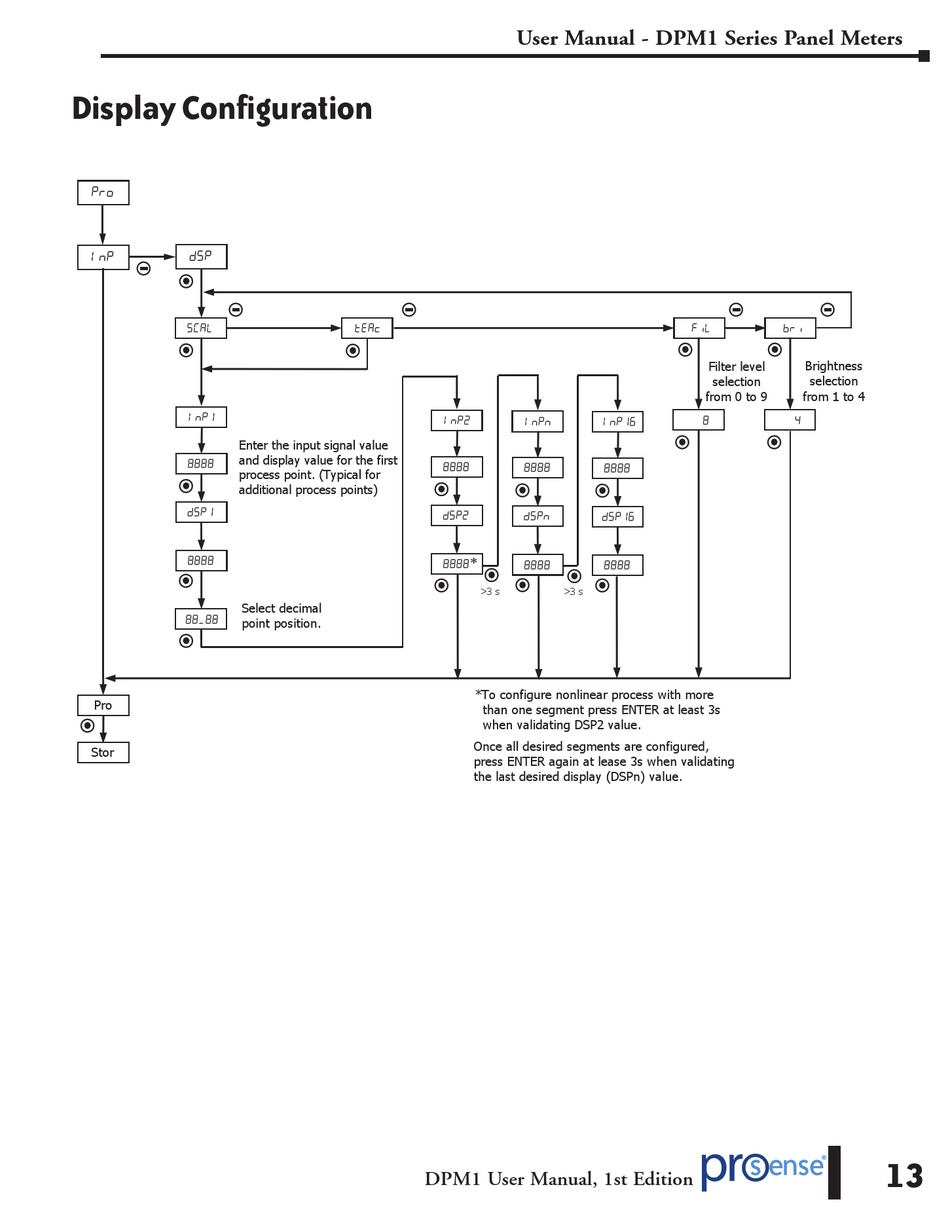

Enter the input signal value
and display value for the first

process point. (Typical for
additional process points)


Select decimal

point position.
Pro
Stor
User Manual - DPM1 Series Panel Meters







*


>3 s
*To configure nonlinear process with more
than one segment press ENTER at least 3s
when validating DSP2 value.
Once all desired segments are configured,
press ENTER again at lease 3s when validating
the last desired display (DSPn) value.
DPM1 User Manual, 1st Edition

Filter level
selection
from 0 to 9





>3 s

Brightness
selection
from 1 to 4

