Input Configuration

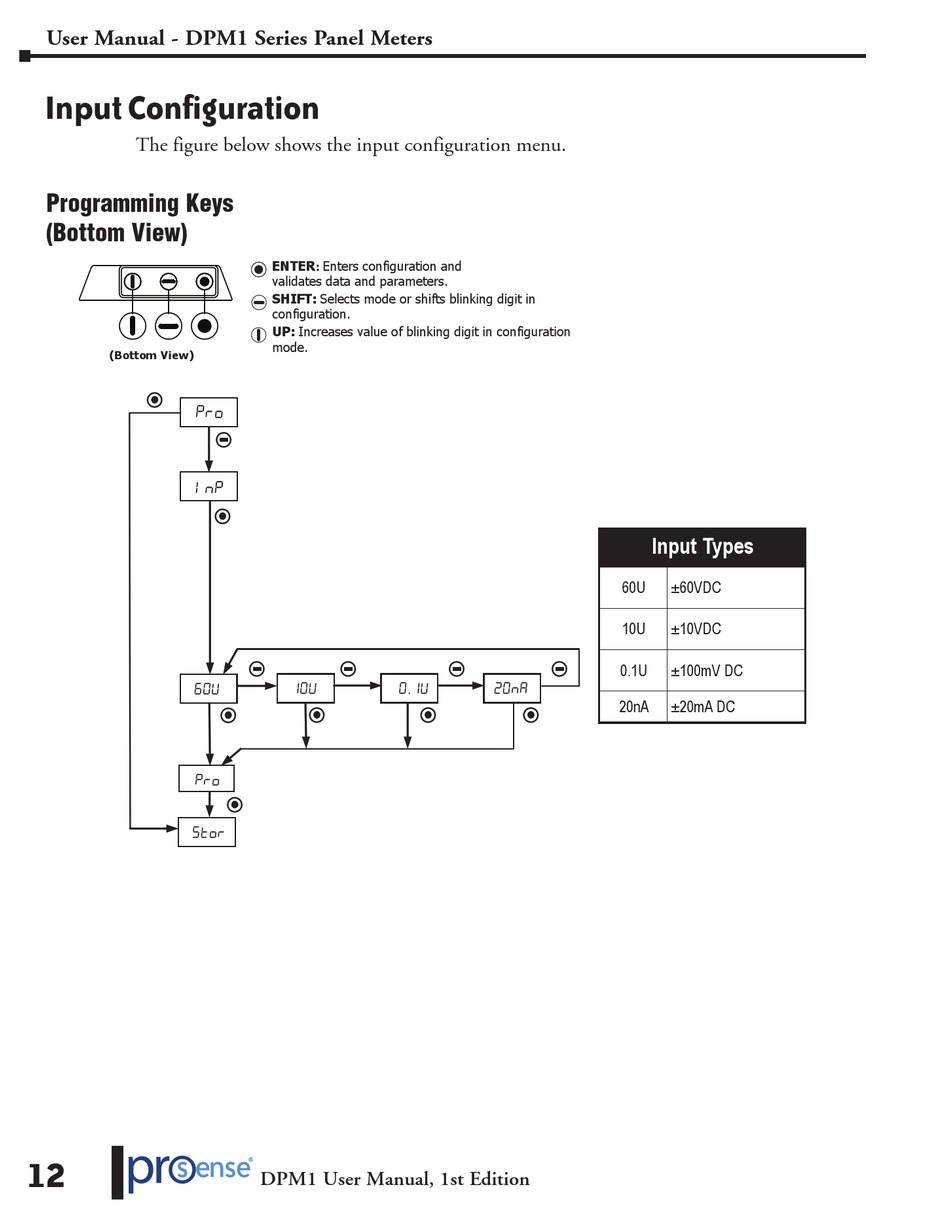

The figure below shows the input configuration menu.
Programming Keys
(Bottom View)
(Bottom View)





12
ENTER
Enters configuration and
:
validates data and parameters.
SHIFT: Selects mode or shifts blinking digit in
configuration.
UP: Increases value of blinking digit in configuration
mode.
 .
DPM1 User Manual, 1st Edition
Input Types
60U ±60VDC
10U ±10VDC
0.1U ±100mV DC

20nA ±20mA DC
