Automation Direct ProSense DPM1 Series User Manual page 17


<3s
ec

>3s
ec

  



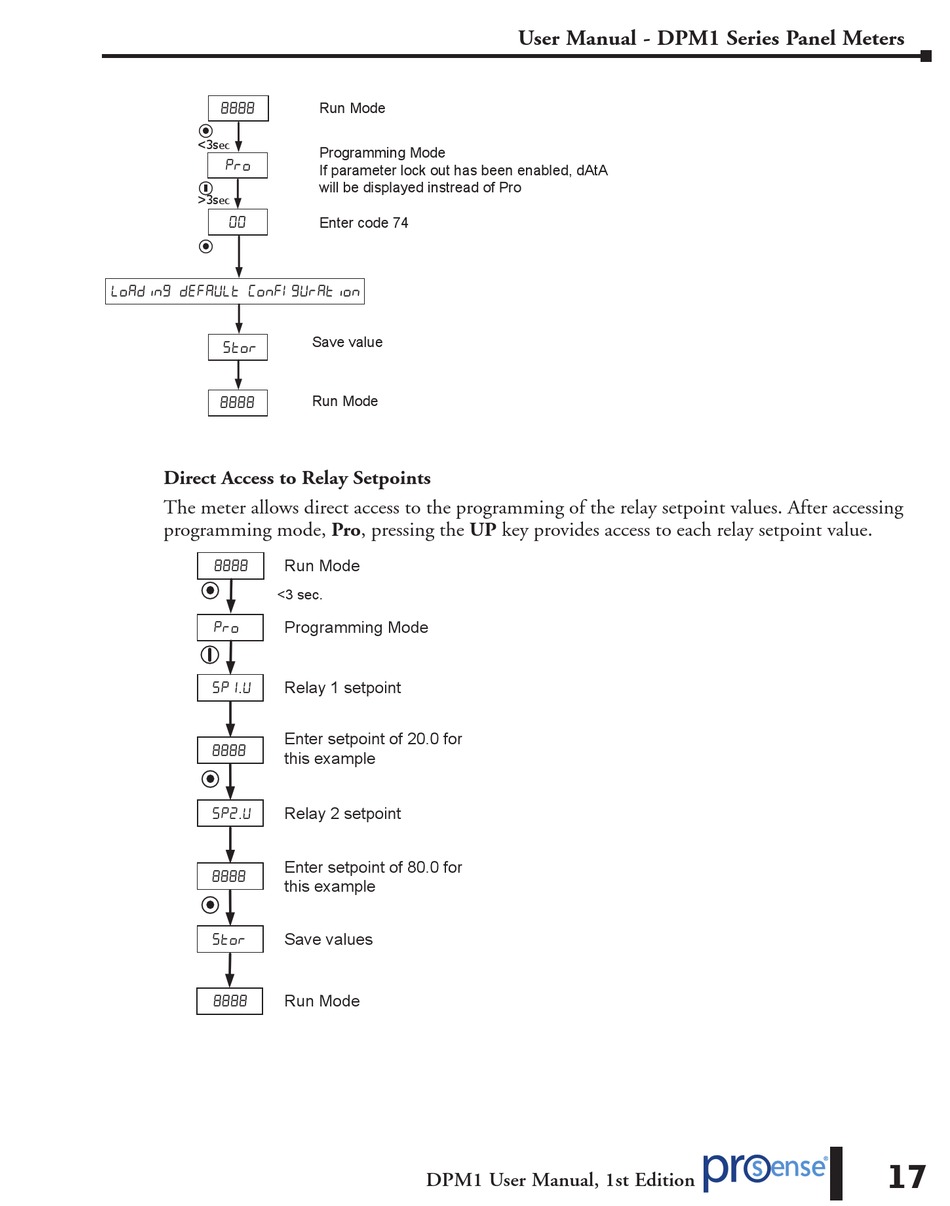

Direct Access to Relay Setpoints
The meter allows direct access to the programming of the relay setpoint values. After accessing
programming mode, Pro, pressing the UP key provides access to each relay setpoint value.
Run Mode

<3 sec.
Programming Mode

Relay 1 setpoint
.
Enter setpoint of 20.0 for

this example
Relay 2 setpoint
.
Enter setpoint of 80.0 for

this example
Save values

Run Mode

Run Mode
Programming Mode
If parameter lock out has been enabled, dAtA
will be displayed instread of Pro
Enter code 74
Save value
Run Mode
DPM1 User Manual, 1st Edition
User Manual - DPM1 Series Panel Meters
17
