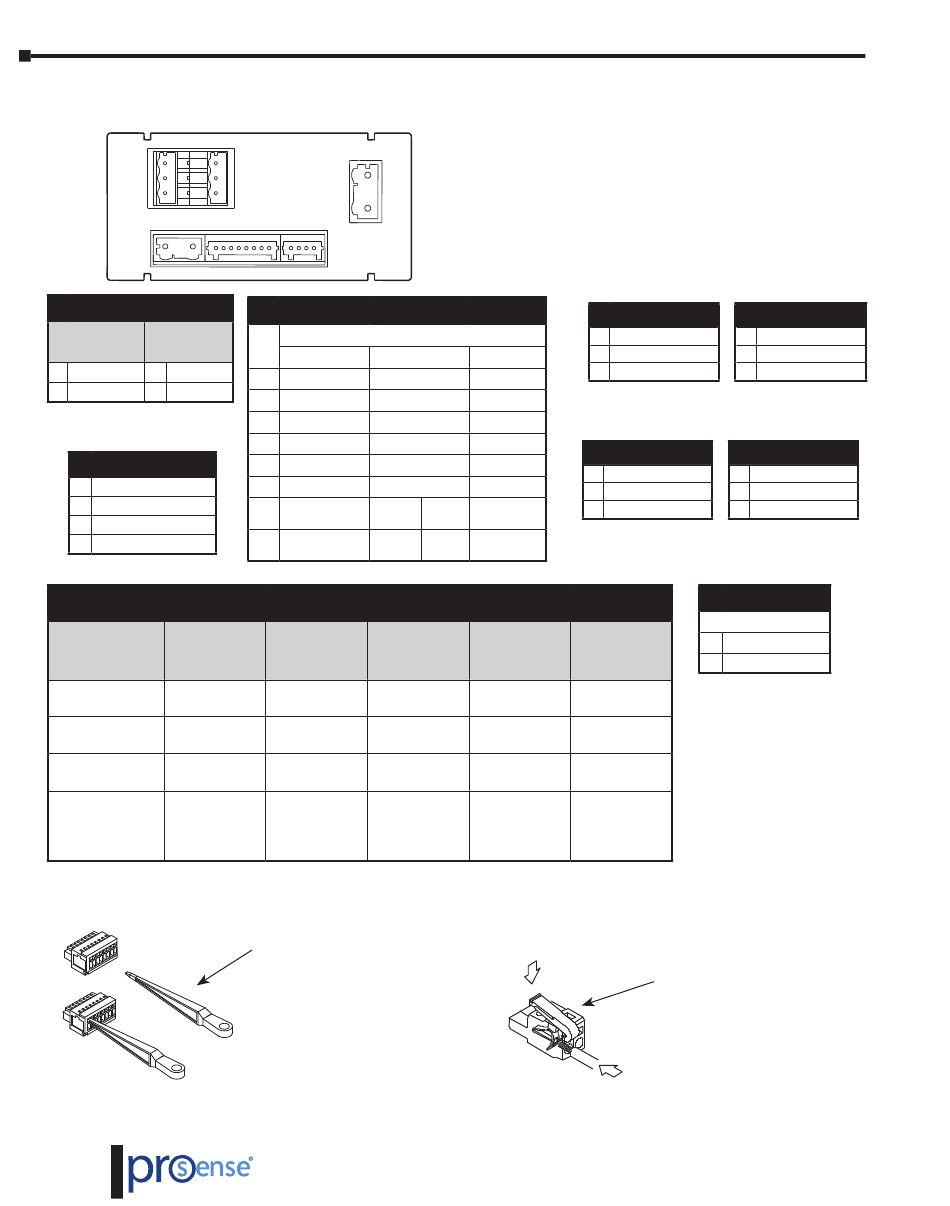

Wiring Terminals

CN5
CN4
4
5
6
CN1
1 2 1 2 3 4 5 6 7 8 1 2 3 4
CN1
AC DC
Supply Supply
1 Line 1 VDC
2 Neutral 2 VDC
Polarity insensitive for
DC power
CN3
1 Common
2 Tare
3 Tare reset
4 Hold
Connector CN1
Wire cross section 0.08 to 2.5mm²
(28 to 12 AWG)
Strip length 8 to 9mm
Wago 231-
Manufacturer
202/026-000
Insertion tool or
Cage clamp screwdriver with
connection 0.5 mm x 3.0
mm blade
CN2 and CN3 Terminals
8
CN6
1
1
2
3
2
CN2 CN3
CN2
Input Signal / Excitation
Process Temperature Load Cell
1 -EXC24V ---
2 +EXC24V ---
3 --- ---
4 --- Pt100 A
5 +mA ---
6 +V ---
Pt100
7 ---
B
-V / -mA Pt100
8
(COM) B
Terminals
CN2
0.08 to 0.5mm² 0.08 to 0.5mm²
(28 to 20 AWG) (28 to 20 AWG)
5 to 6mm 5 to 6mm
Wago 733-108 Wago 733-104 Wago 231-
Insertion tool or Insertion tool or
screwdriver with screwdriver with
0.3 mm x 1.8 0.3 mm x 1.8
mm blade mm blade
Insertion Tool (included with meter)
Insert wires into the proper terminal
while using the insertion tool to open
the clip inside the connector. Release
the insertion tool to fix wire to the
terminal.
DPM3 User Manual, 1st Edition
-EXC10
---
+EXC10
---
---
---
+TC +mV
-TC -mV (COM)
CN4 &
CN3
CN5
0.08 to 2.5mm² 0.08 to 2.5mm²
(28 to 12 AWG) (28 to 12 AWG)
8 to 9mm 8 to 9mm
Wago 231-
303/026-000 302/026-000
Insertion tool or Insertion tool or
screwdriver with screwdriver with
0.5 mm x 3.0 0.5 mm x 3.0
mm blade mm blade
CN1, CN4, CN5
and CN6 Terminals
2 SPDT Relays (-2R)
CN4 (Relay 2) CN5 (Relay 1)
4 NO2 1
5 CM2 2
6 NC2 3
4 SPST Relays (-4R)
CN4
4 NO4 1
5 Unused 2
6 CM (All) 3
NO: Normally open, CM: Common,
NC: Normally closed
CN6
Analog Output
1 (-) 4-20mA
CN6
2 (+) 4-20mA
Insertion Tool (included with meter)
Insert wires into the proper terminal
while using the insertion tool to open
the clip inside the connector. Release
the insertion tool to fix wire to the
terminal.
NO1
CM1
NC1
CN5
NO1
NO2
NO3
