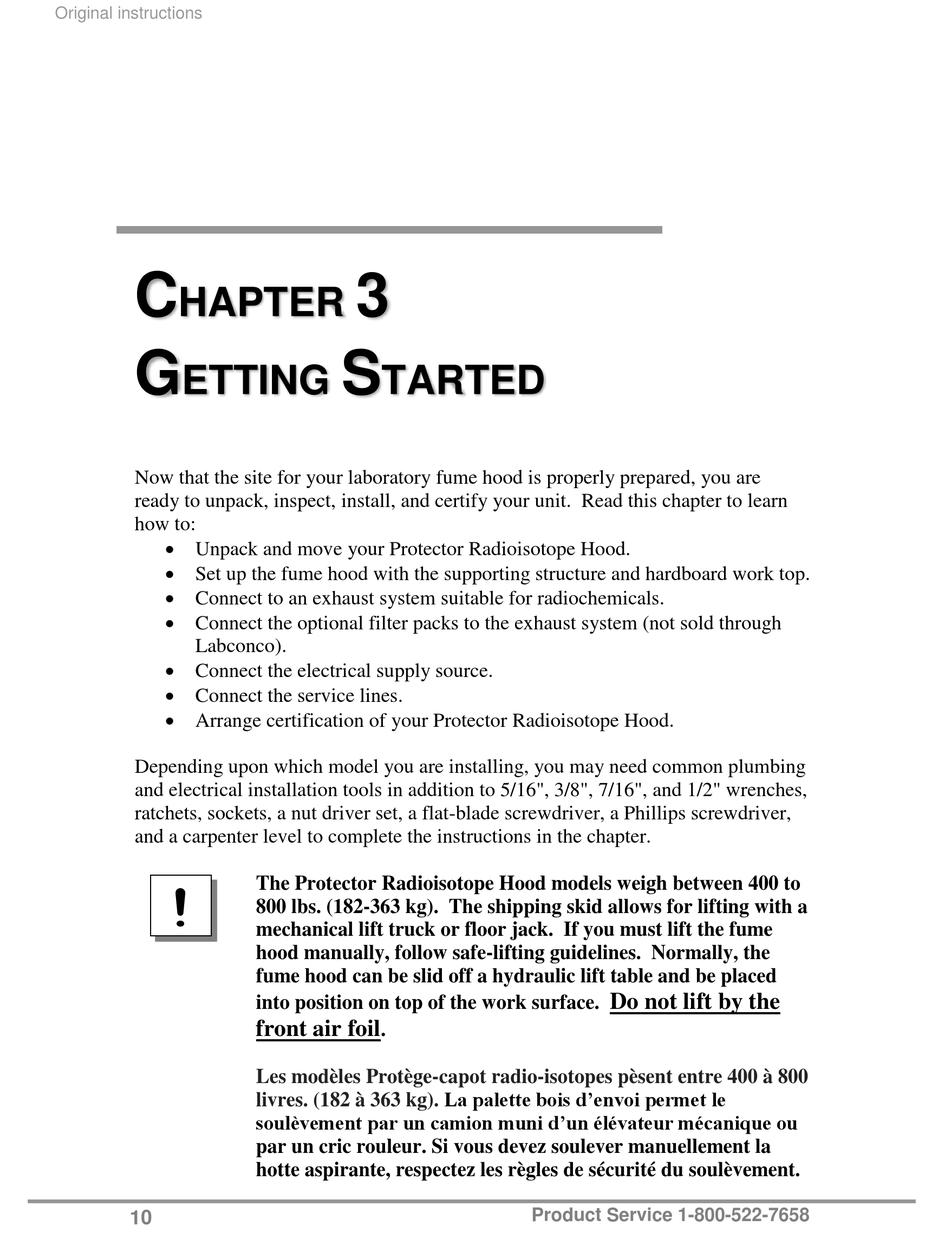

Chapter 3 Getting Started - Labconco Protector 1204 Series User Manual

Original instructions
C
HAPTER
G
ETTING
Now that the site for your laboratory fume hood is properly prepared, you are
ready to unpack, inspect, install, and certify your unit. Read this chapter to learn
how to:
 Unpack and move your Protector Radioisotope Hood.
 Set up the fume hood with the supporting structure and hardboard work top.
 Connect to an exhaust system suitable for radiochemicals.
 Connect the optional filter packs to the exhaust system (not sold through
Labconco).
 Connect the electrical supply source.
 Connect the service lines.
 Arrange certification of your Protector Radioisotope Hood.
Depending upon which model you are installing, you may need common plumbing
and electrical installation tools in addition to 5/16", 3/8", 7/16", and 1/2" wrenches,
ratchets, sockets, a nut driver set, a flat-blade screwdriver, a Phillips screwdriver,
and a carpenter level to complete the instructions in the chapter.
!
10
3
S
TARTED
The Protector Radioisotope Hood models weigh between 400 to
800 lbs. (182-363 kg). The shipping skid allows for lifting with a
mechanical lift truck or floor jack. If you must lift the fume
hood manually, follow safe-lifting guidelines. Normally, the
fume hood can be slid off a hydraulic lift table and be placed
into position on top of the work surface.
front air foil
.
Les modèles Protège-capot radio-isotopes pèsent entre 400 à 800
livres. (182 à 363 kg).
soulèvement par un camion muni d'un élévateur mécanique ou
par un cric rouleur. Si vous devez soulever manuellement la
hotte aspirante, respectez les règles de sécurité du soulèvement.
Do not lift by the
La palette bois d'envoi permet le
