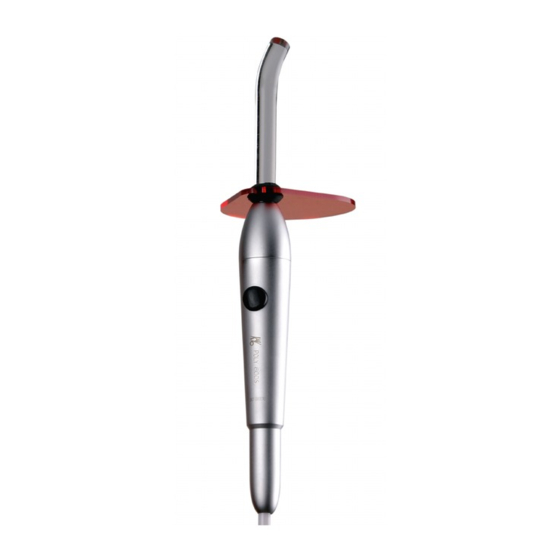

- Page 1 Instructions for use KaVo polymerisation light Poly One Always be on the safe side.
- Page 2 Distributed by: Manufacturer: KaVo Dental GmbH Kaltenbach & Voigt GmbH Bismarckring 39 Bismarckring 39 D-88400 Biberach D-88400 Biberach Phone +49 (0) 7351 56-0 www.kavo.com Fax +49 (0) 7351 56-1488...
-
Page 3: Table Of Contents
Instructions for use KaVo polymerisation light Poly One Table of contents Table of contents User instructions ............................2 User guide ............................2 1.1.1 Abbreviations ........................2 1.1.2 Symbols ..........................2 1.1.3 Target group ........................2 Service ............................2 Warranty terms and conditions ......................3 Transportation and storage ...................... -
Page 4: User Instructions
Instructions for use KaVo polymerisation light Poly One 1 User instructions | 1.1 User guide 1 User instructions 1.1 User guide Requirement Read these instructions prior to first use to avoid misuse and prevent damage. 1.1.1 Abbreviations Abbre‐ Explanation viation... -
Page 5: Warranty Terms And Conditions
Claims from this warranty can only be asserted when the transfer form (copy) be‐ longing to the product has been sent to KaVo, and the original can be presented by the operator or user. 1.4 Transportation and storage 1.4.1 Currently valid packaging regulations... -
Page 6: Damage In Transit
4. Report the damage to the shipping company. 5. Report the damage to KaVo. 6. You must consult with KaVo before returning a damaged product. 7. Send the signed delivery receipt to KaVo. If the product is damaged but there was no discernable damage to the packaging upon delivery, proceed as follows: 1. -
Page 7: Information On The Packaging: Storage And Transportation
Instructions for use KaVo polymerisation light Poly One 1 User instructions | 1.4 Transportation and storage Note Failure on the part of the recipient to comply with any of the above-mentioned obligations will mean that the damage will be considered to have arisen following delivery (in accordance with CMR law, Chapter 5, Art. -
Page 8: Safety
2.2 Purpose – Proper use 2.2.1 General information This KaVo product is intended for use in dentistry only. Any other type of use is not permitted. "Proper use" includes compliance with all instructions for use and the inspection and maintenance intervals. -
Page 9: Product-Specific
▪ to avoid contamination from the product 2.2.2 Product-specific The curing light Poly One is designed for the curing of dental materials in the oral cavity of a patient in the course of a dental treatment. For installation on dental treatment centres;... - Page 10 If you have any questions regarding proper disposal of the KaVo product, please contact the KaVo branch. Disposal of electronic and electrical devices Note According to EC directive 2002/96 concerning used electrical and electronic de‐...
-
Page 11: Safety Instructions
2.3.1 General information DANGER Explosion hazard. Risk of fatal injury. ▶ Do not use KaVo product in areas subject an explosion hazard. WARNING Application of un-authorised accessories or un-authorised modifications of the product. Accessories that have not been approved and/or inadmissible modifications of the product could lead to hazards and/or personal injury or material damage. - Page 12 Instructions for use KaVo polymerisation light Poly One 2 Safety | 2.3 Safety instructions CAUTION Inappropriate processing of filling material. Hazard to the patient from the curing time of the filling material being too short or too long. ▶ Please comply with the manufacturer's instructions as regards the process‐...
-
Page 13: Description Of The Product
⑬ CE mark according to 93/42/EEC medical devices ⑦ Handpiece hose (1,600 mm for as‐ sistant element) The curing light Poly One emits visible blue light of a wavelength between 450 to 460 nm for photopolymerisation of dental materials. 11/22... -
Page 14: Technical Specifications
Instructions for use KaVo polymerisation light Poly One 3 Description of the Product | 3.1 Technical Specifications 3.1 Technical Specifications Light source Sterilisable parts Fibre-optic cable made of glass Wavelength 450 - 460 nm Curing times 3 curing times: 20, 40 or 60 seconds... - Page 15 Instructions for use KaVo polymerisation light Poly One 3 Description of the Product | 3.1 Technical Specifications Transportation and storage conditions Ambient temperature -20 to +55°C Relative humidity 5% to 95% non-condensing Air pressure 700 to 1,060 hPa 13/22...
-
Page 16: Commissioning
4 Commissioning 4 Commissioning Note Use the curing light Poly One with glare protection only. ▶ Slide the glare protection onto the optical fibre until it hits against the limit stop. ▶ Insert the optical fibre into the handpiece until it hits against the limit stop. -
Page 17: Operation
Instructions for use KaVo polymerisation light Poly One 5 Operation 5 Operation WARNING Danger from defective or damaged products. Injury to the patient. ▶ Work with flawless, undamaged products only. ▶ Carry out a visual inspection before each use. WARNING Hazard from non-sterile products. - Page 18 Instructions for use KaVo polymerisation light Poly One 5 Operation Note The curing light Poly One shuts off automatically once the selected time is elapsed. ▶ Press button briefly to set the curing time to 20 seconds. Curing light is on for 20 seconds and then shuts off.
-
Page 19: Reprocessing Methods According To Iso 17664
▶ Do not wash the curing light Poly One in the thermodisinfector. ▶ Do not sterilise the curing light Poly One in the hot-air steriliser. ▶ Do not place the curing light Poly One in a disinfection or ultrasound bath. Note For cleaning/reprocessing of the fibre-optic cable of the curing light Poly One, the fibre-optic cable must be removed from the handpiece. -
Page 20: Automated Cleaning
Instructions for use KaVo polymerisation light Poly One 6 Reprocessing methods according to ISO 17664 | 6.2 Disinfection ▶ Hold the curing light Poly One by the handpiece and disassemble the fibre-op‐ tic cable. ▶ Disassemble the silicone holder and protective shield. -
Page 21: Automated Disinfection
Instructions for use KaVo polymerisation light Poly One 6 Reprocessing methods according to ISO 17664 | 6.3 Drying ▶ Perform wipe disinfection only, the use of spray disinfection and disinfection baths is not feasible. ▶ Wipe the handpiece, protective shield, fibre-optic cable, and silicone holder with a soft cloth and approved disinfectants. -
Page 22: Storage
Instructions for use KaVo polymerisation light Poly One 6 Reprocessing methods according to ISO 17664 | 6.5 Storage ▶ Sterilise with a triple fractionated vacuum (B class steriliser); hold for 4 mi‐ nutes; 134 C ± 1 °C; overpressure: 2.13 bar. -
Page 23: Troubleshooting
Instructions for use KaVo polymerisation light Poly One 7 Troubleshooting 7 Troubleshooting Note If disturbance arises, a technician authorised by KaVo must be engaged for the remedial action. Malfunction Cause Remedy Nothing works Also refer to: Instructions for use of... -
Page 24: Accessories And Spare Parts
Instructions for use KaVo polymerisation light Poly One 8 Accessories and spare parts 8 Accessories and spare parts Material number Accessories 3.000.3812 Fibre-optic cable 3.000.3811 Protective shield 3.000.4240 O-ring 22/22...
