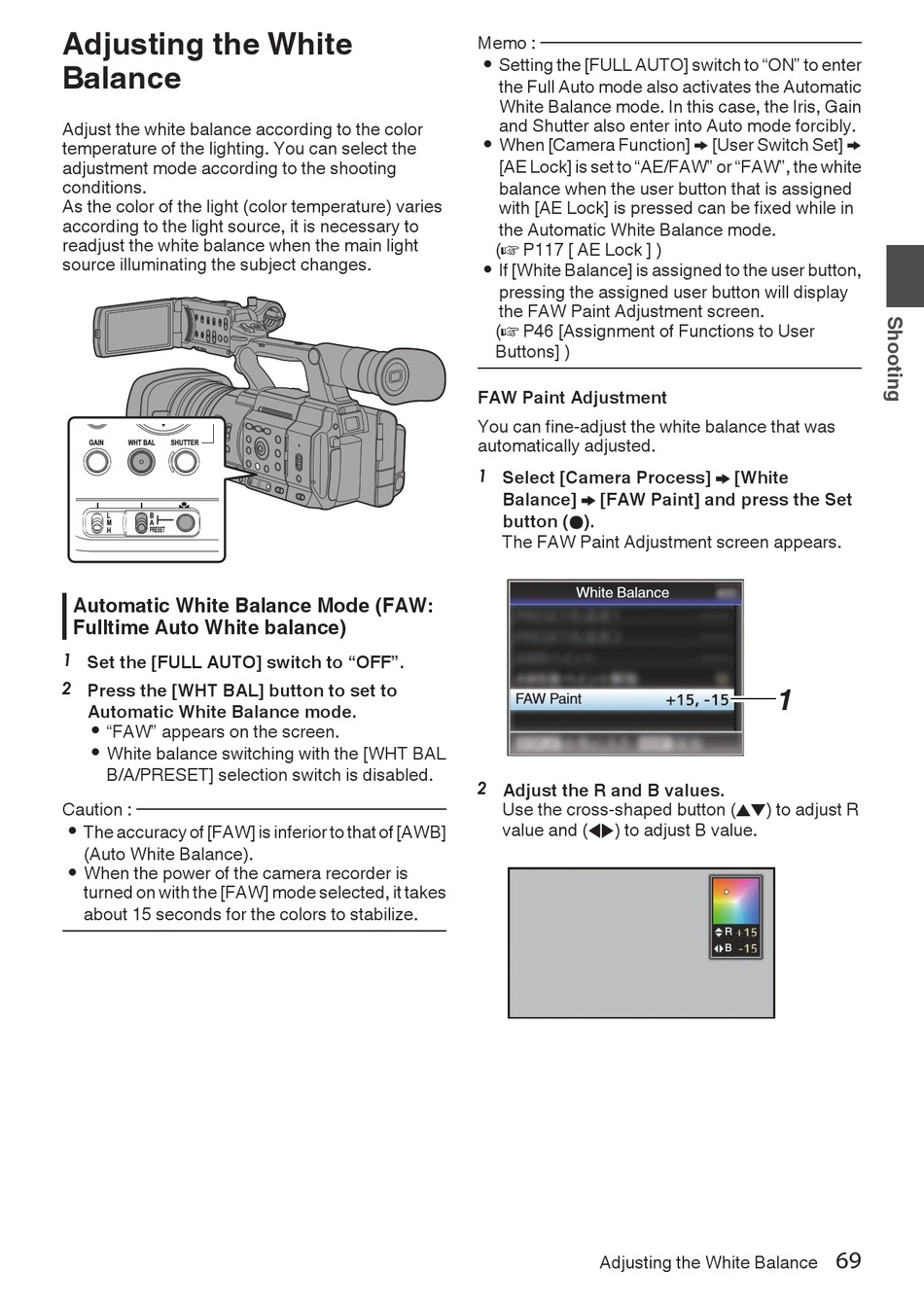

Adjusting the White
Balance
Adjust the white balance according to the color
temperature of the lighting. You can select the
adjustment mode according to the shooting
conditions.
As the color of the light (color temperature) varies
according to the light source, it is necessary to
readjust the white balance when the main light
source illuminating the subject changes.
GAIN WHT BAL SHUTTER
L B
M A
H PRESET
.
Automatic White Balance Mode (FAW:
Fulltime Auto White balance)
1 Set the [FULL AUTO] switch to "OFF".
2 Press the [WHT BAL] button to set to
Automatic White Balance mode.
"FAW" appears on the screen.
0
White balance switching with the [WHT BAL
0
B/A/PRESET] selection switch is disabled.
Caution :
The accuracy of [FAW] is inferior to that of [AWB]
0
(Auto White Balance).
When the power of the camera recorder is
0
turned on with the [FAW] mode selected, it takes
about 15 seconds for the colors to stabilize.
Memo :
Setting the [FULL AUTO] switch to "ON" to enter
0
the Full Auto mode also activates the Automatic
White Balance mode. In this case, the Iris, Gain
and Shutter also enter into Auto mode forcibly.
When [Camera Function] B [User Switch Set] B
0
[AE Lock] is set to "AE/FAW" or "FAW", the white
balance when the user button that is assigned
with [AE Lock] is pressed can be fixed while in
the Automatic White Balance mode.
(A P117 [ AE Lock ] )
If [White Balance] is assigned to the user button,
0
pressing the assigned user button will display
the FAW Paint Adjustment screen.
(A P46 [Assignment of Functions to User
Buttons] )
FAW Paint Adjustment
You can fine-adjust the white balance that was
automatically adjusted.
1 Select [Camera Process] B [White
Balance] B [FAW Paint] and press the Set
button (R).
The FAW Paint Adjustment screen appears.
White Balance
FAW Paint
.
2 Adjust the R and B values.
Use the cross-shaped button (JK) to adjust R
value and (HI) to adjust B value.
.

Adjusting the White Balance

1
R
B
