Mantis Elite viewing area adjustment
Tool required:
2.5 mm hex driver

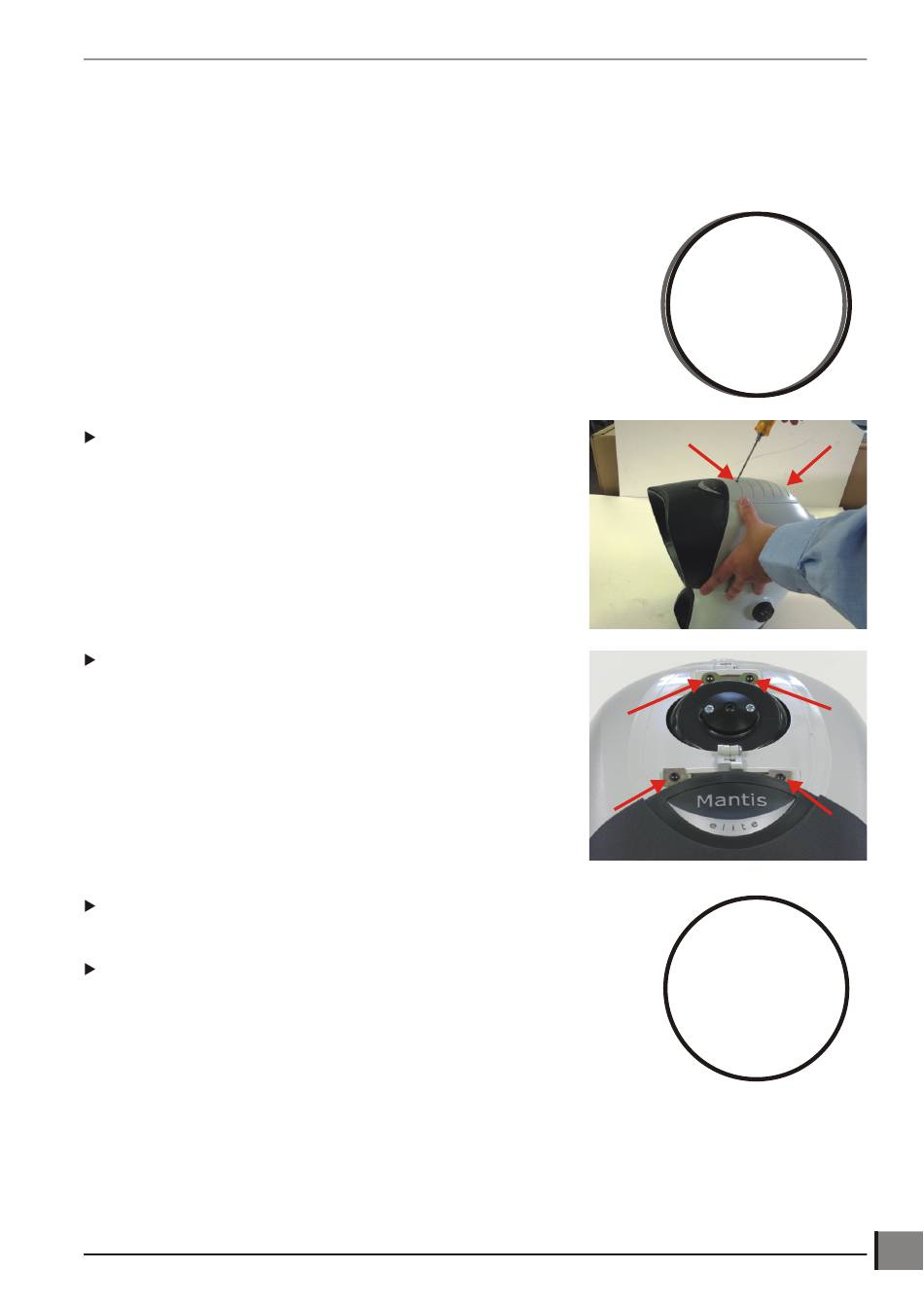

If the viewing area on the screen is shadowing and not a sharp circle (see right)
adjust the top mirror as follows:
Use the 2.5 mm hex driver to remove the head cover screw.
Slightly loosen the 4 mirror securing screws.
Use the loosened screws to adjust the mirror until the viewing
area is sharp (see right).
Retighten the screws and replace the head's top cover.
