MAINTENANCE & SPARE PARTS
Replacing Mantis Elite detached mirrors
Tools required:
#1 and #2 Philips/crosshead screwdriver

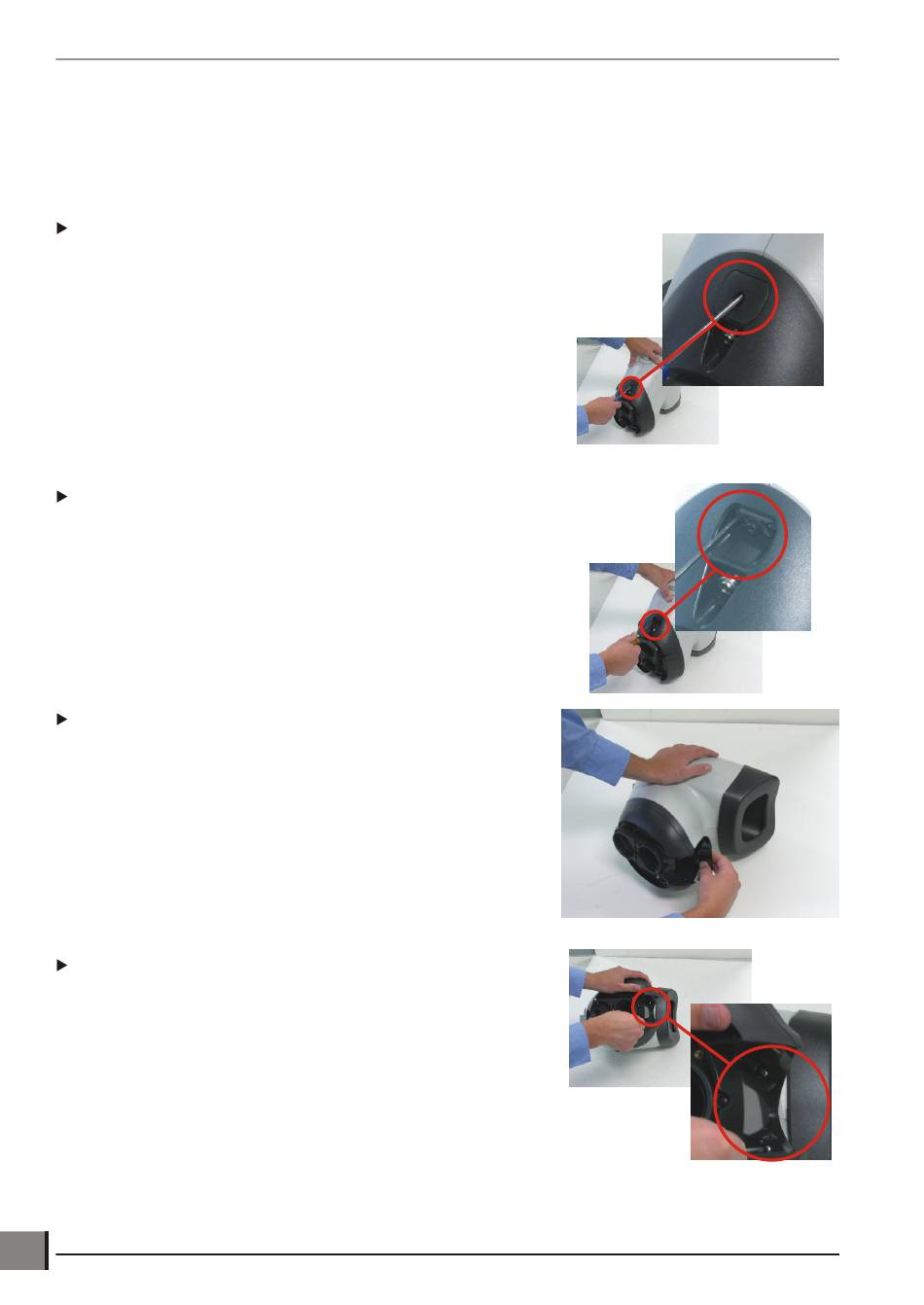

Remove the rear cover screw.
Remove both of the screws that secure the lower head at the rear.
Remove the anti-glare shield.
Remove both of the screws that secure the lower head at the front.
18
Mantis Service Manual
www.visioneng.com/support
