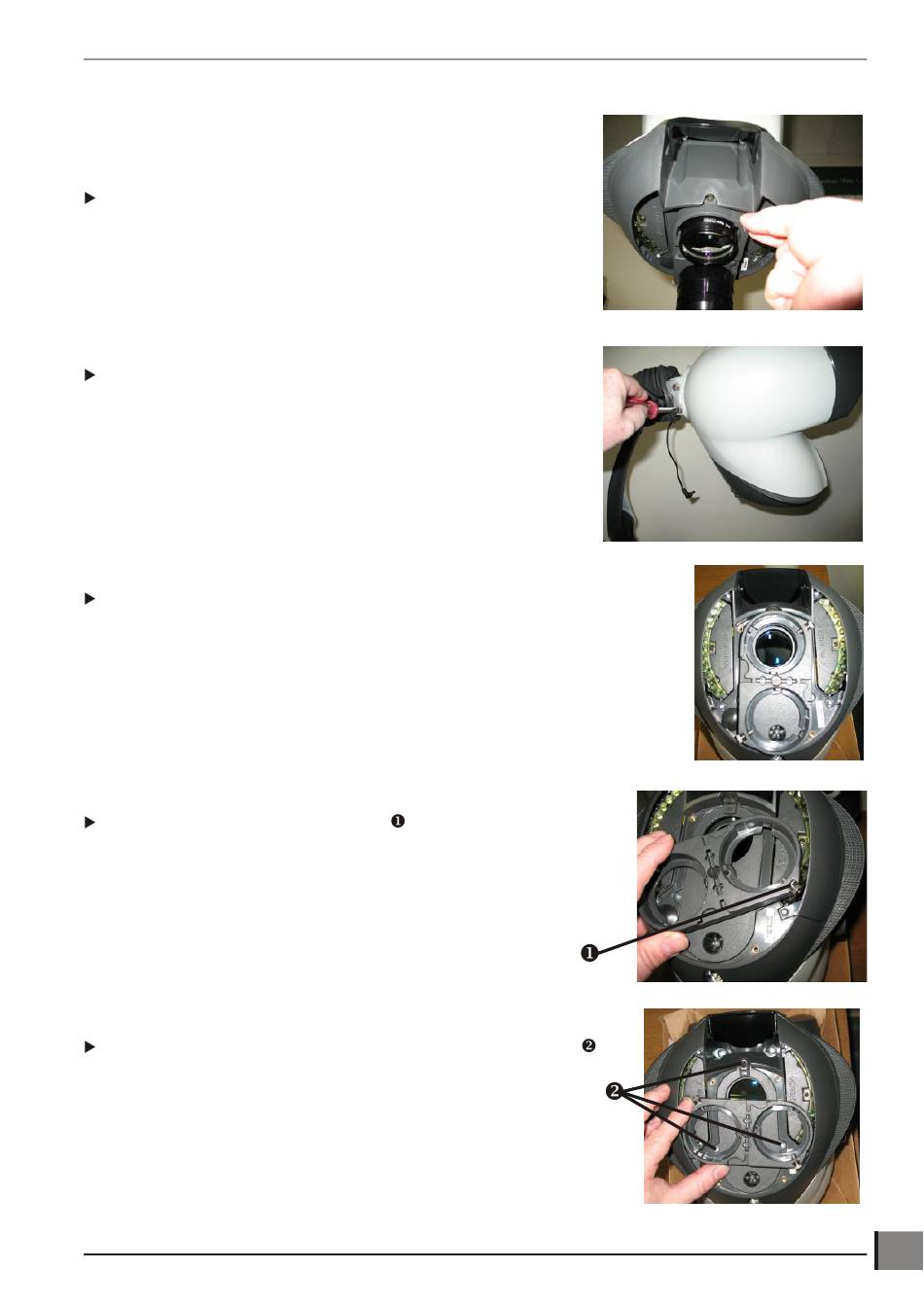

Mantis Elite turret replacement

Required Tools: #1 Philips/crosshead screwdriver

Remove any objective lenses that may be installed in the turret.

Uninstall the Mantis Head from the stand.

Rest the viewing head upside down (objective turret facing up). Be

sure to secure the head so that it does not roll off of the work bench

(a small, empty cardboard box works well).

Ensure the objective lens securing screws

tightly).

Rotate the turret so that you can see all three of the mounting screws

www.visioneng.com/support

MAINTENANCE & SPARE PARTS

are fully screwed in (but not too

Mantis Service Manual
