Summary of Contents for Vision Engineering Ergo 80

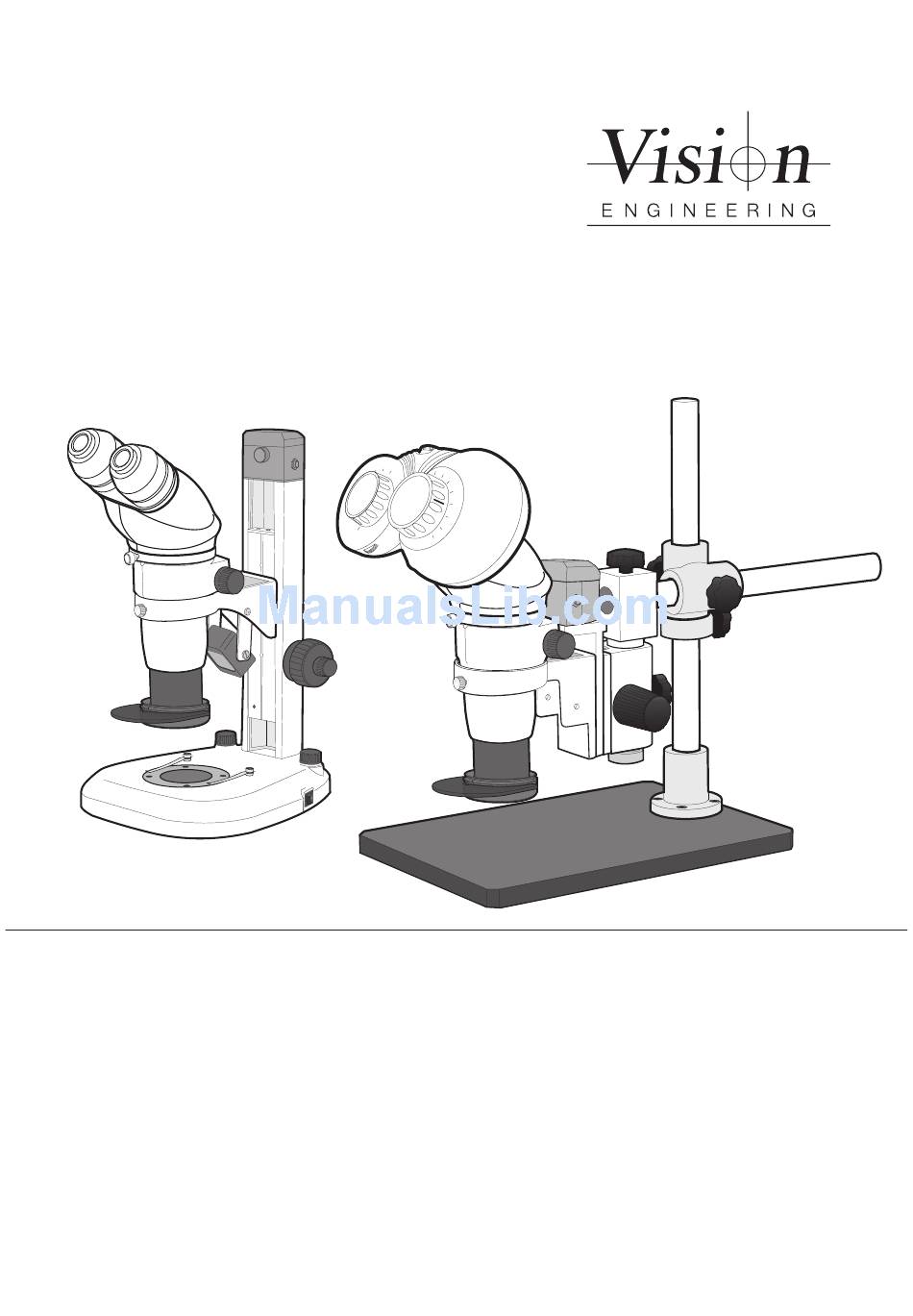

Page 1
Ergo8 User Guide Ergo 80 stereo microscope...
Page 3
CHECK CURRENT RATING OF OUTPUT SOCKET IF USED. The equipment is connected to protective earth via the mains cable provided. If the equipment is used in a manner not specified by Vision Engineering Ltd in this user guide, the protection provided by the equipment may be impaired.
Page 4
UNPACKING System by box content Box 1 Stand (Boom or Bench as ordered) Box 2 Zoom assembly Box 3 Objective Box 4 ISIS ergonomic eyepieces or standard eyepieces Box 5 Dovetail adapter, power supply, control box, screws, cable clips and user guide Box 6 Boom stand adapter and screws (if Boom stand ordered) Box 7 Accessories...
CONTENTS Page SYSTEM EQUIPMENT Head Stand Illuminator Optional equipment Stage Ergowedge 25° wedge Unicam digital camera Iris control ASSEMBLY Bench stand Attaching the zoom assembly & objective Attaching the head & control box Boom stand Attaching the boom stand interface bracket Attaching the zoom assembly, objective, head &...
SYSTEM EQUIPMENT SYSTEM EQUIPMENT Head ISIS ergonomic eyepieces Standard eyepieces Head adapter Zoom assembly Objective Stand Illuminator Ringlight Antiglare screen www.visioneng.com/support Ergo 80 stereo microscope...
SYSTEM EQUIPMENT Optional equipment Stage Floating stage Stage adapter Ergowedge 25° wedge Unicam digital camera Iris control Ergo 80 stereo microscope www.visioneng.com/support...
X Remove the 2 securing screws from the top cap and lift the cap off. X Place the control box on top of the stand, replace the top cap and secure it in place with the replacement screws. www.visioneng.com/support Ergo 80 stereo microscope...
X Using the same procedures as detailed on page 3, attach the zoom assembly , objective , head adapter plate and head X Secure the control box and its cap to the interface bracket and secure it with the screws provided Ergo 80 stereo microscope www.visioneng.com/support...
X Place the head on to the 25° wedge and tighten its securing screw Note: The ISIS ergonomic eyepieces are illustrated but the procedure for the Standard eyepieces is the same. www.visioneng.com/support Ergo 80 stereo microscope...
Attaching the floating stage X Attach the stage adapter plate to the stand X Attach the stage to the adapter plate. Fitting the stage glass X Position the stage glass on to the stage Ergo 80 stereo microscope www.visioneng.com/support...
(no more than 2 to 3 marks movement should be necessary). Using the iris control X Move the control lever to the left to reduce the Aperture, and vice versa. Reducing the aperture has the effect of increasing the visible depth of field www.visioneng.com/support Ergo 80 stereo microscope...
• Do not place the instrument close to a cold temperature source such as an air conditioning unit. • Do not position the instrument in direct sunlight, or where bright reflections will affect the image. • The equipment should be positioned so that access to the mains input connector is always available. Ergo 80 stereo microscope www.visioneng.com/support...
Page 15
SERVICE RECORD System Serial Number Date of Next Service Type Comments Date of Service Company Signature Service www.visioneng.com/support Ergo 80 stereo microscope...
Vision Engineering. Except as stated herein, Vision Engineering makes no other warranties, express or implied by law, whether for resale, fitness for a particular purpose or otherwise. Further, Vision Engineering shall not under any circumstances be liable...
Page 18
Visit our website: www.visioneng.com Disclaimer – Vision Engineering Ltd. has a policy of continuous development and reserves the right to change or update, without notice, the design, materials or specification of any products, the information contained within this brochure/datasheet and to discontinue production or distribution of any of the products described.
