MAINTENANCE & SPARE PARTS

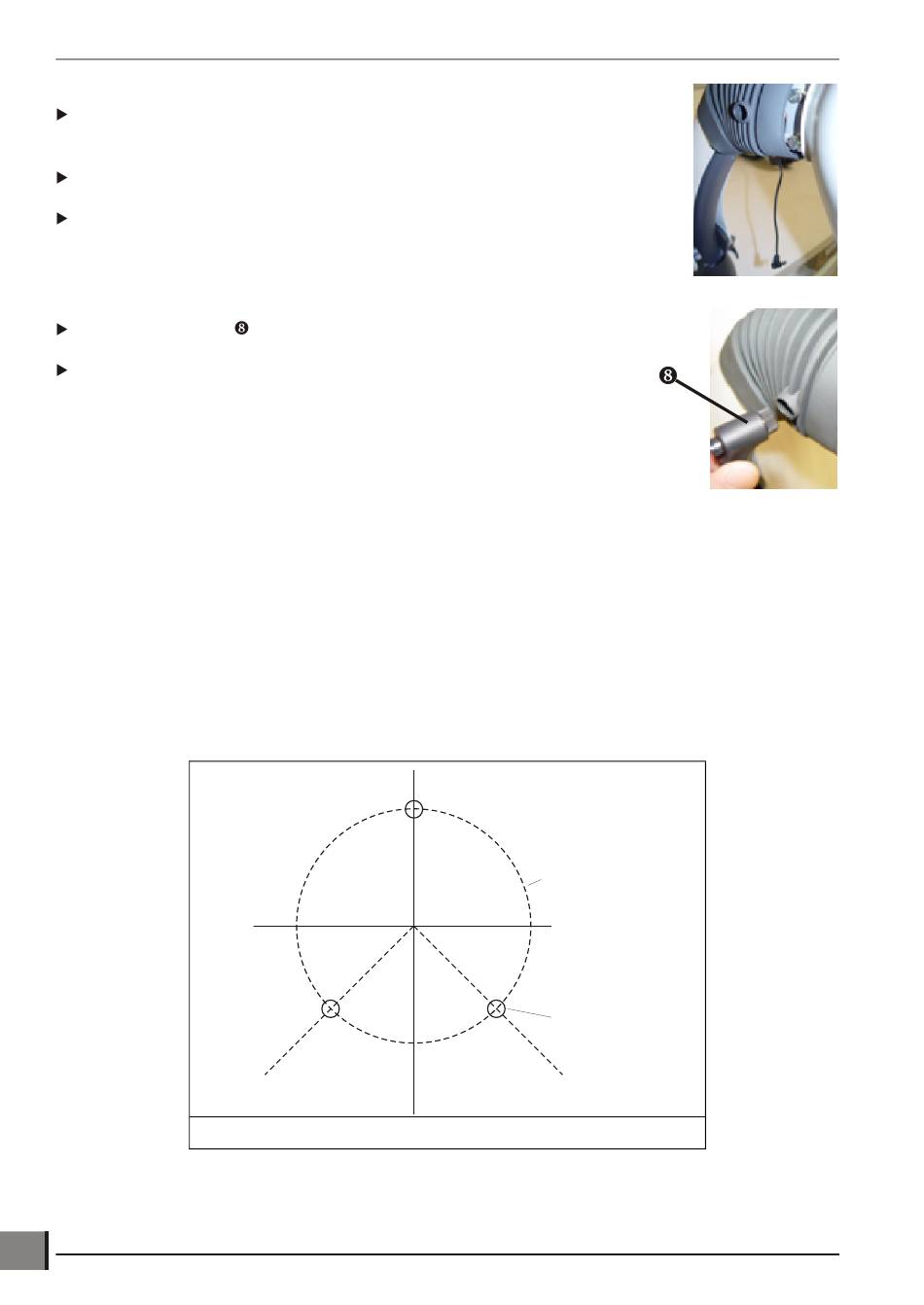

Remove the lower head mounting bolt and then, ensuring the upper bolt is
tight, back it off 2 complete revolutions.
Hang the head and tighten both head mounting bolts.
Seat the rubber gaiter back into the groove in the head.
Thread on the handle
Plug the mains adapter into the mains supply and connect the head power cable
into the head.
Mantis universal arm baseplate mounting dimensions
10
Mantis Service Manual
and screw it in.
45 deg
Mantis Universal Stand Baseplate (part number: 202-C-0050) mounting dimensions
Drawing not to scale. Dimensions for reference only.
75mm dia.
5.5mm dia.
3 places
45 deg
www.visioneng.com/support
