Vision Engineering TIM5 User Manual

Material inspection microscope
Hide thumbs

Advertisement

Quick Links

Download this manual
TIM5 User Guide
Material Inspection Microscope

Advertisement

loading
Need help?

Need help?

Do you have a question about the TIM5 and is the answer not in the manual?

Questions and answers

Related Manuals for Vision Engineering TIM5

Summary of Contents for Vision Engineering TIM5

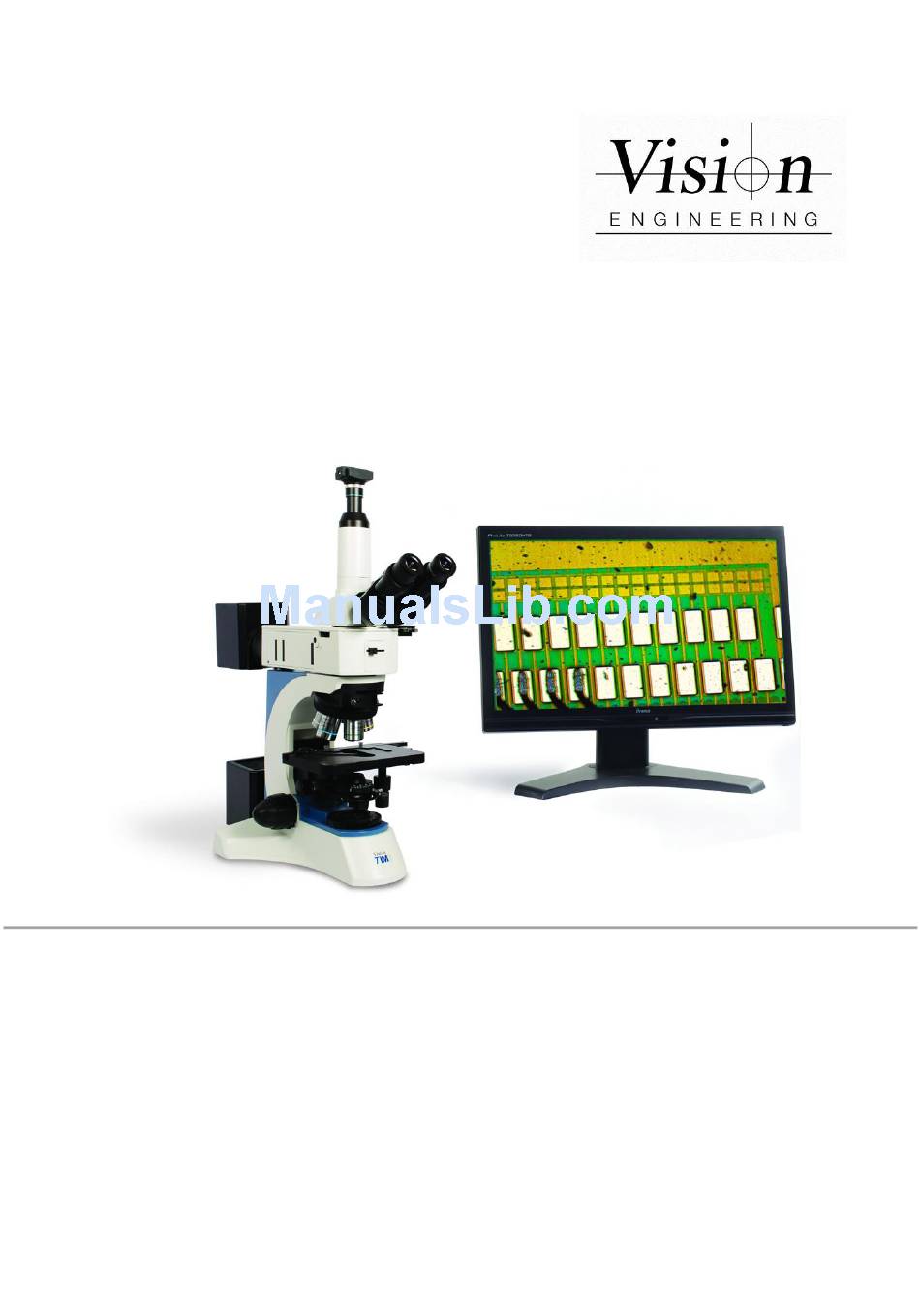

  • Page 1 TIM5 User Guide Material Inspection Microscope...

  • Page 2: Table Of Contents

    Contents USER NOTICE 1. Components 2. Assembly 3. Operation 4. Observation Methods 5. Troubleshooting...

  • Page 3: User Notice

    User Notices Safety note i. When unpacking, please take care not to drop fragile items, such as lenses. ii. Keep the instrument out of direct sunlight; avoid high temperatures or humidity, dusty environments. Make sure the work surface is stable and away from sources of vibration. iii.

  • Page 4: Components

    Name of Components Light path selector lever Trinocular tube Analyser insertion slot Lamp housing Mirror selector lever Filter insertion slot ND filter lever (The filter should be inserted from the left) Aperture diaphragm lever Mechanical stage Field diaphragm lever 拉杆 Polariser insertion slot Right coarse focus knob Main switch...

  • Page 5: Assembly

    2．Installation 2-1 Installation Diagram The following figure shows the installation sequence of the components. The number in the figure shows the installation steps.  Before installing, be sure every component remains clean.  Note: The supplied Allen key is required for changing components. Trinocular tube ⑤...
  • Page 6 2-2 Installation Steps 2-2-1 Installing the mechanical stage support ① Before installing the device, be sure to adjust the coarse focus control ①. Move the guide board ② down to the lowest ② position, so you can install the mechanical stage support device easily.
  • Page 7 2-2-2 Installing the reflected light brightfield / ⑧ darkfield illuminator ⑦ Install the reflected light illuminator (Fig.4) on the head of the microscope body (Fig.5) and then secure the bolt ⑥. Fig.4 ⑥ Fig.5 2-2-3 Installing the trinocular head ⑨ Insert the video port (Fig.6) into the illuminator (Fig.
  • Page 8 2-2-5 Installing the Trinocular tube (optional) Insert the video port (Fig. 8) into the trinocular unit (Fig. 6), and then screw down bolt ⑨ to fix it into position. Fig.8 2-2-6 Installing the Eyepiece Insert the eyepieces (Fig.9) into the eyepiece tube until they are flush with one another, ensuring the edges meet.
  • Page 9 2-2-8 Attaching the Halogen Bulb ① ② The appropriate lamp bulb is: 24V100WHAL. Loosen the clamping screw ① at the top of the lamp housing using the provided Allen key. Lift the lamp housing ② to remove it. Tilt the bulb socket by 90°(Fig. 14) Remember to wear gloves or use a piece of gauze Fig.13 when handling halogen bulbs.

  • Page 10: Operation

    3. Operation Turning on the Lamp Connect the power cable and turn the main switch ① to the “I” (on) position.  When using transmitted light illumination, fix the lamp holder into the jack on the back of the microscope (Fig.11), and insert the power plug into the power jack of the microscope (③in Fig.11).
  • Page 11 ② Placing Specimens ① ③ Fix the specimen ② onto the sample slide ① using modelling clay or plasticine ③; make sure that the specimen surface is parallel to the sample slide. It may be necessary to use a levelling press to flatten the specimen (Fig. 19) 图...
  • Page 12 Focus Using the scope without the video function ① Completely lower the light path selector lever (① in Fig.22) to view. It is recommended that you begin with the 10x objective, to avoid contact with the specimen. Begin with the mechanical stage raised close to the objective and slowly lower the stage to obtain the best focus.
  • Page 13 Using the ND Filter Knob The ND Filter is interlocked with brightfield (BF) light path. It can be switched from engaged to disengaged according to the mirror selector lever (① in Fig.25). You can reduce the glare with the ND filter when you switch from darkfield (DF) to brightfield (BF).
  • Page 14 3-10 Selecting the Light Path of the trinocular Tube Slide the mirror selector lever ①–Fig.27 towards your desired observation method. BF: Reflected light brightfield observation ② ③ DF: Reflected light darkfield observation  Make sure the selection lever is fully engaged into position. ①...
  • Page 15 3-12 Centring the Aperture Iris Diaphragm (AS) Slide the mirror selector lever to “BF”. Engage the 10X objective by rotating the revolving nosepiece, place the specimen on the stage and adjust approximate focusing. Remove the eyepiece, look into the eyepiece sleeve and pull the AS The image of aperture iris diaphragm knob (⑤...
  • Page 16 3-14 Adjusting the Swing out Condenser (Fig. 32) The centre of the condenser and the light axes of the objective are coaxial. This has been adjusted before leaving factory, so the user doesn’t need to adjust them. The condenser has been adjusted to its highest setting. It does not require the user to manipulate this feature.

  • Page 17: Observation Methods

    4. Observation Methods 4-1 Reflected Light Brightfield/Darkfield Observation  The following flow shows the basic operating procedure for reflected light brightfield or darkfield observation. Select the brightfield (BF) or darkfield (DF) observation (see Mirror selector lever) Set the main switch to “I” (ON) 2.1.
  • Page 18 4-2 Reflected Light Simplified Polarised Light Observation Set the Analyser and Polariser (Fig. 15). Place the specimen on the stage and adjust the focus by moving the stage up or down. Now simplify the polarised light You can now observe the specimen. Adjust the field iris diaphragm so that the image fills the field of view.

  • Page 19: Troubleshooting

    5. Troubleshooting 5.1 Optical Parts PROBLEM REASON FOR PROBLEM SOLUTION The aperture or field iris diaphragm is Open the aperture and field iris diaphragms. closed. Light is on but the field of view Light path selector control of trinocular tube Fully pull out the light path selector control.
  • Page 20 5.2 Mechanical Parts PROBLEM REASON FOR PROBLEM SOLUTION The tension adjustment collar is too tight. Loosen the adjustment collar. The coarse focus control is hard to turn. Pre-focusing lever is locked. Release pre-focusing lever. Stage lowers by itself or focus is Tension adjustment ring is too loose.
