MAINTENANCE & SPARE PARTS

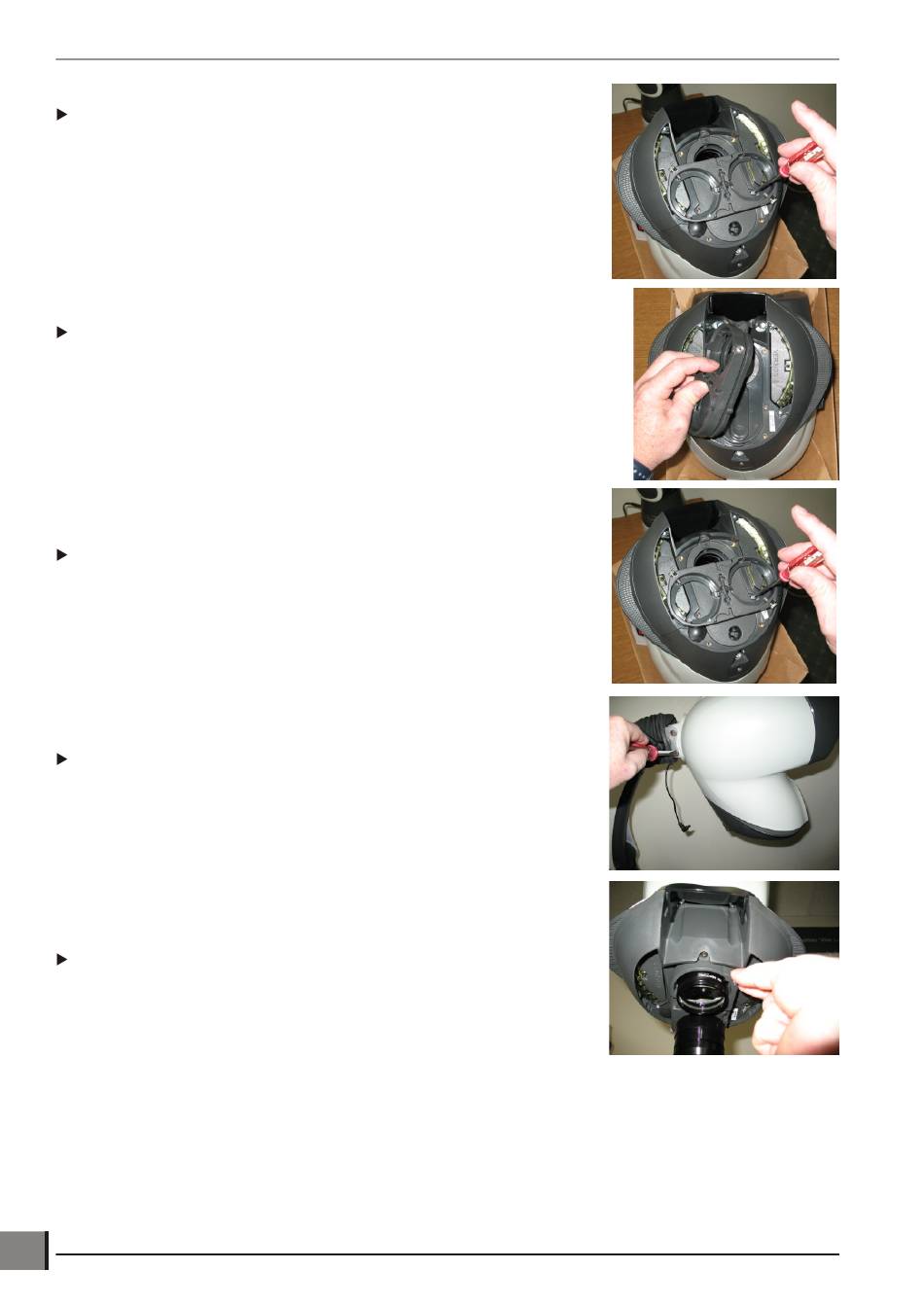

Remove all three screws on the inside of the turret.
Note:
the front screw has a washer.
Remove the old turret and replace with the new turret.
Replace all three screws.
Note:
do not over tighten.
Reinstall the head to the stand.
Reinstall the objective lenses and verify the new turret rotates smoothly.
8
Mantis Service Manual
www.visioneng.com/support
