MAINTENANCE & SPARE PARTS

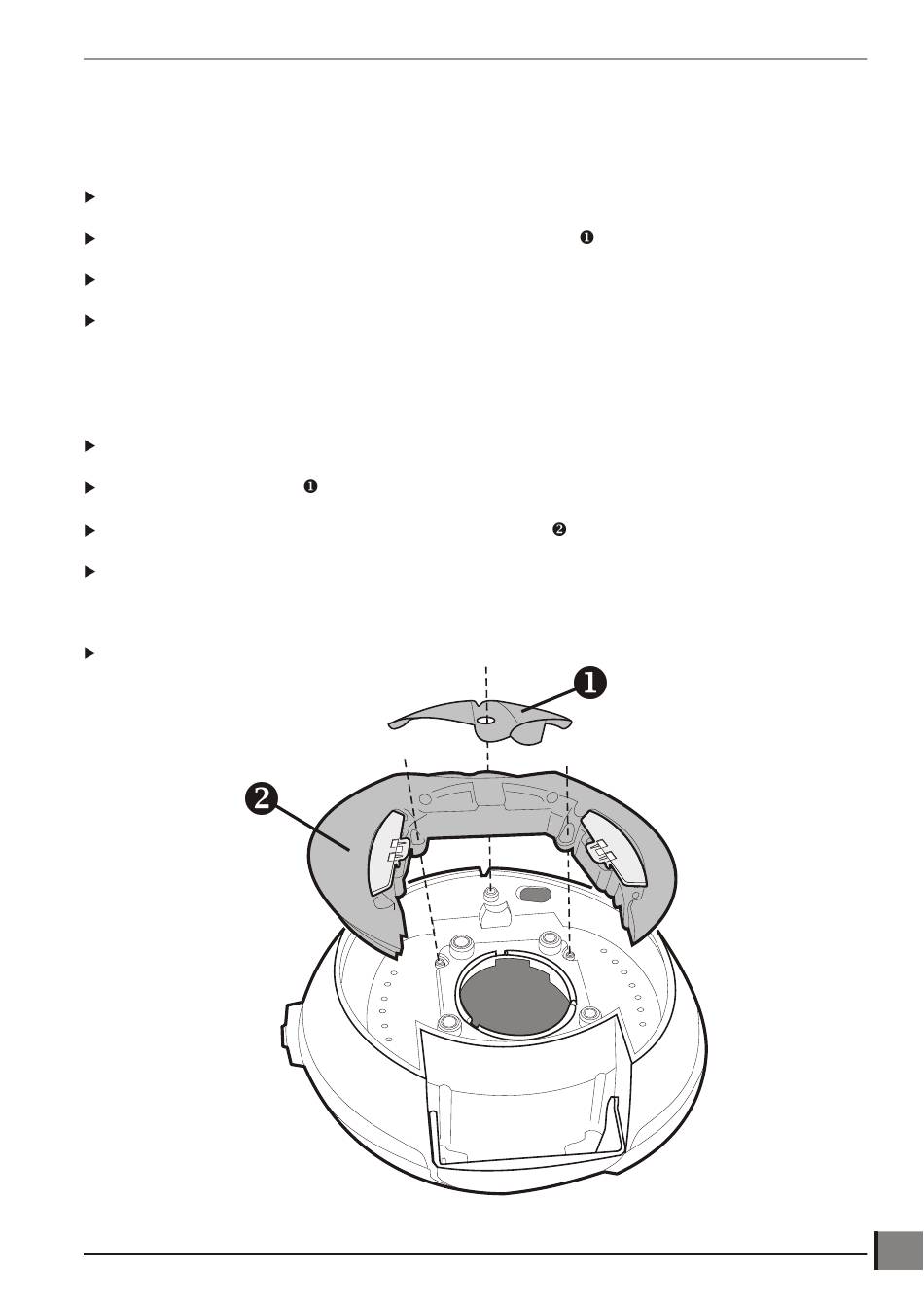

Replacing the desiccant (see the diagram below):
Disconnect the power cord from the back of the head.
Remove the screw securing the desiccant cover and remove the cover
Replace the desiccant and reinstall the cover.
Reconnect the power cord at the back of the head.
Note: If the desiccant is pink it needs to be replaced. Useable desiccant is blue.
Replacing the LED array (see the diagram below):
Disconnect the power cord from the back of the head.
Remove the desiccant cover
Remove the two screws that secure the array to remove the array
Install the new array using the reverse of this procedure.
Note:
Do not over tighten.
Reconnect the power cord at the back of the head.
www.visioneng.com/support
(see Replacing the desiccant above).
MAINTENANCE & SPARE PARTS
.
complete with the filters.
