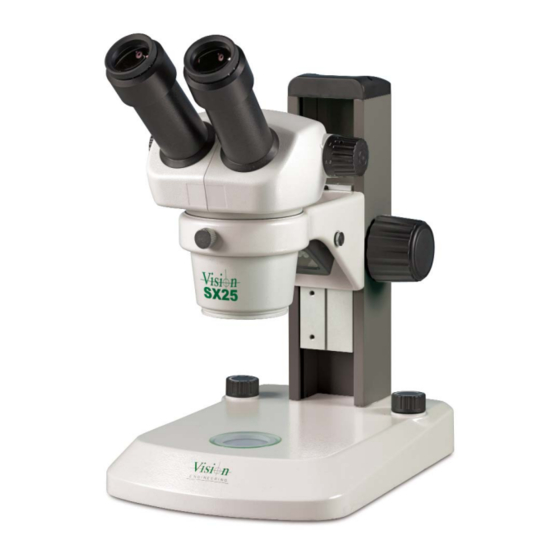

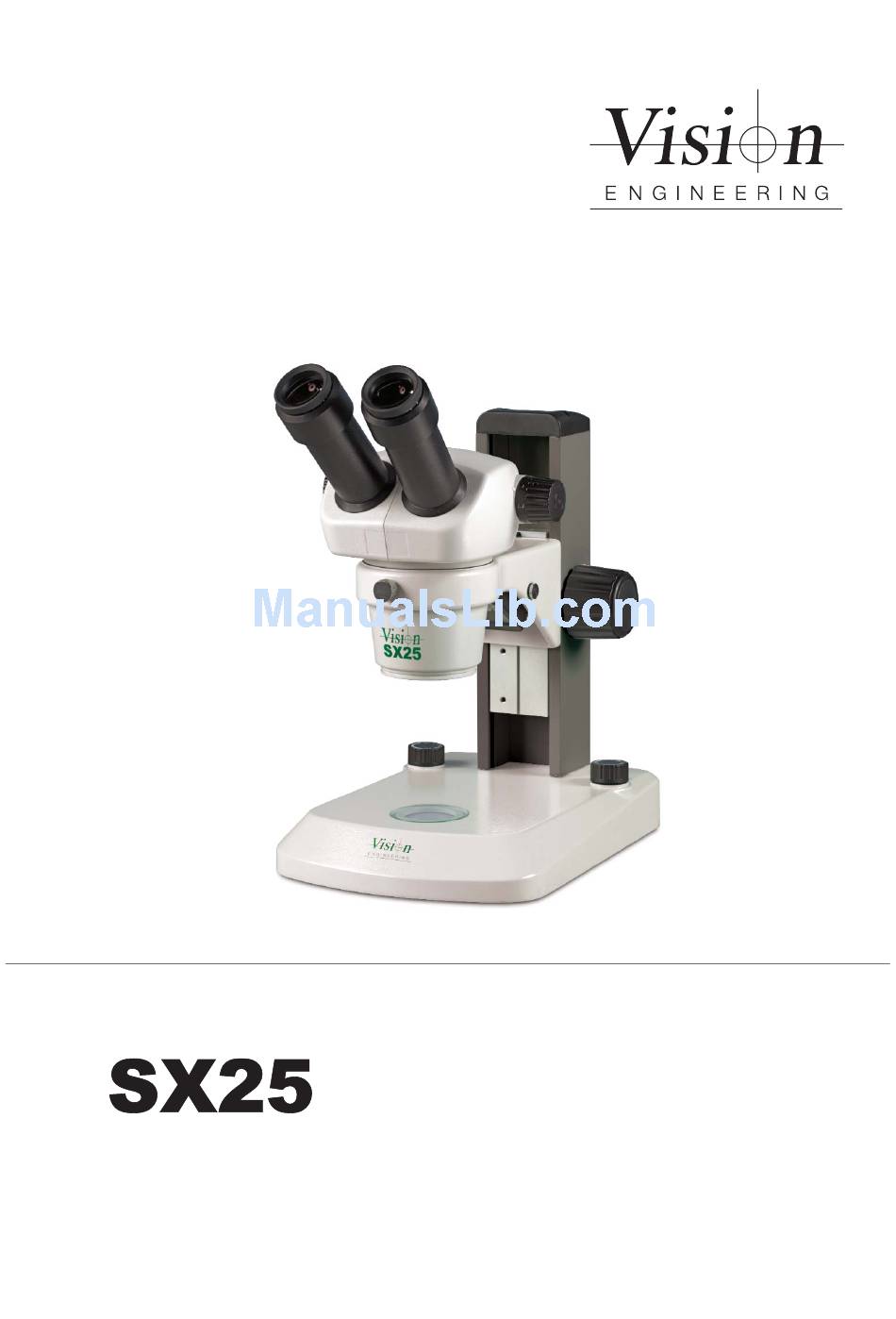

- Page 1 User Guide SX25 Stereo Zoom Microscope...
- Page 3 INTRODUCTION SX25 Stereo Zoom Microscope Vision Engineering manufacture a wide range of patented optical systems, offering fatigue-free viewing with superb hand-eye co-ordination, for improved quality and productivity. To achieve the most from this precision instrument, please read the enclosed assembly instructions, usage and maintenance guidelines.
-
Page 5: Table Of Contents
Boom stand Articulated arm LED ringlight OPERATION & SETUP Binocular head Bench stand Boom stand Articulated arm OTHER SOLUTIONS FROM VISION ENGINEERING Stereo microscopes Non-contact measuring systems SERVICE RECORD Head serial number Bench stand serial number Service record WARRANTY www.visioneng.com/support... -
Page 7: Packing Contents
PACKING CONTENTS Binocular head Eyepieces Head Bench stand Column & stand Mains lead (not shown) Glass stage insert (not shown) Plastic stage insert (not shown) Spare fuses (not shown) Hexagonal key (not shown) www.visioneng.com/support SX25 Stereo Zoom Microscope... -
Page 8: Boom Stand
Boom stand Focusing arm Vertical bar Boom clamp Horizontal bar Focusing clamp bolt Base Hexagonal key (not shown) Articulated arm Focus arm link Ergonomic beam Secondary link Link collar Bench mount Securing collar Focusing arm SX25 Stereo Zoom Microscope www.visioneng.com/support... -
Page 9: Optional Accessories
PACKING CONTENTS Optional accessories 10x/20 Eyepieces 15x/16 Eyepieces 20x/11 Eyepieces Eye cups Graticule Objective 1.5x Objective 2.0x Stage micrometer LED Ringlight www.visioneng.com/support SX25 Stereo Zoom Microscope... -
Page 10: Assembly Binocular Head
Tighten the securing screw Warning: With the head in place, always support the column and base when moving the instrument. Eyepiece attachment ► Remove the protective caps from the eyepiece sockets ► Insert the eyepieces into the sockets. SX25 Stereo Zoom Microscope www.visioneng.com/support... -
Page 11: Bench Stand
Turn both the left and right illumination controls, to the off position. ► lug the IEC connector into the rear of the SX25 stand. ► Connect the mains plug to a suitable mains power socket. www.visioneng.com/support SX25 Stereo Zoom Microscope... -
Page 12: Boom Stand
Slide horizontal bar through the clamp and secure. ► Attach the focusing arm mount to the horizontal bar and secure. ► Attach the focusing arm focusing arm mount and secure. ► Position and secure head SX25 Stereo Zoom Microscope www.visioneng.com/support... -
Page 13: Articulated Arm
► Connect focusing arm to the focus arm link and tighten the screw at the back and the nut at the bottom until secure. ► Insert head into the focusing arm and secure. www.visioneng.com/support SX25 Stereo Zoom Microscope... -
Page 14: Led Ringlight
ASSEMBLY LED ringlight (optional) ► Slide the LED ringlight over the bottom of the head of the microscope. ► Secure with screws ► Connect power lead, and plug in. SX25 Stereo Zoom Microscope www.visioneng.com/support... -
Page 15: Operation & Setup
OPERATION & SETUP Binocular head Interpupillary adjustment Diopter adjustment Zoom controls (one each side) Bench stand Focus controls (one each side) Brightness adjustment control Brightness adjustment control www.visioneng.com/support SX25 Stereo Zoom Microscope... -
Page 16: Boom Stand
OPERATION & SETUP Boom stand Zoom Height/reach adjustment Focus Articulated arm Zoom Height adjustment Position and lock Focus SX25 Stereo Zoom Microscope www.visioneng.com/support... -
Page 18: Stereo Microscopes
SERVICE RECORD Head serial number Bench stand serial number Service Type Comments Date of service Date of next service Company Signature www.visioneng.com/support SX25 Stereo Zoom Microscope... - Page 20 If during the warranty period the product is found to be defective, it will be repaired or replaced at facilities of Vision Engineering or elsewhere, all at the option of Vision Engineering. Shipment costs for warranty repairs, to and from Vision Engineering facilities will not, normally, be borne by Vision Engineering. However, Vision Engineering reserves the right to refund the purchase price if it is unable to provide replacement, and repair is not commercially practicable or cannot be timely made.
- Page 21 For more information... Vision Engineering has a network of offices and technical distributors around the world. For more information, please contact your Vision Engineering branch, local authorised distributor, or visit our website. Vision Engineering Ltd. Vision Engineering Inc. Vision Engineering Ltd.
