Staks benching assembly
Privacy screen installation
1.

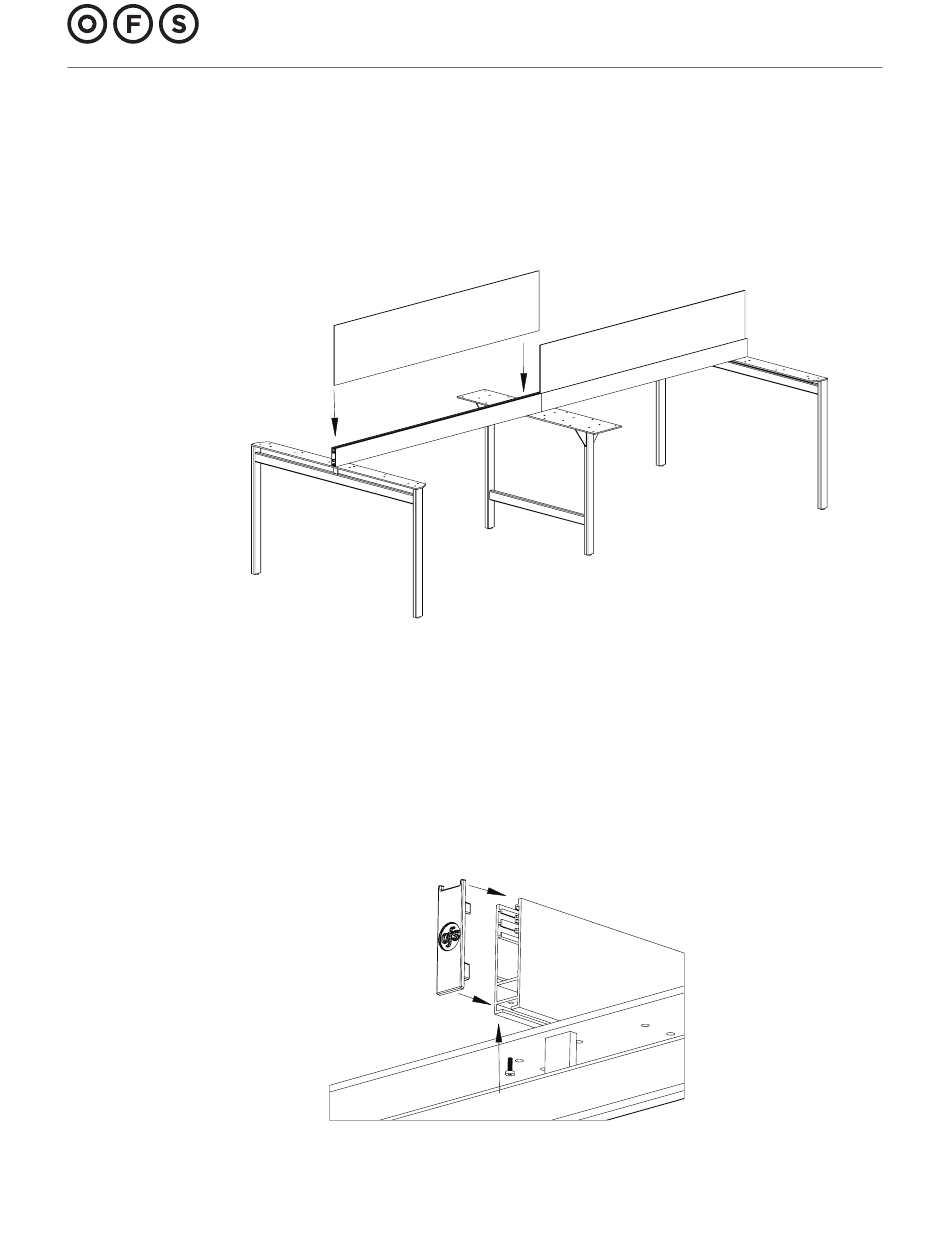

Install privacy screens into tool rails.
2.
Use a RUBBER MALLET to work screen all the way in until seated on the bottom extrusion.
3.
Loosen T-nut screws and slide back H-base for access to bottom of toolbar.
4.
Insert end caps into outside ends of tool rails.
5.
Secure in place by threading set screw through the small hole in the end of the toolbar
and into the flange on the inside face of the end cap.
6.
Reposition H-base and re-tighten T-nut screws.
7.
The toolbar will again be flush to the H-base. The end cap will extend past the H-base.
800.521.5381
End caps ship with tool rail kit.
Part #: 1565102
Assembly instructions
6
