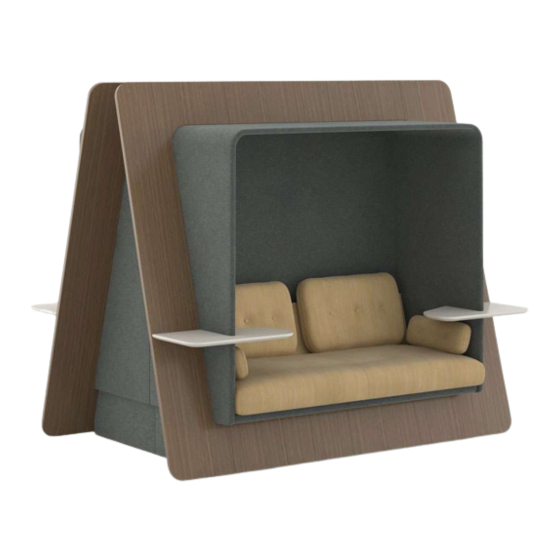

- Page 1 LeanTo Tablet Assembly...
- Page 2 LeanTo tablet assembly Important safety instructions When using an electrical furnishing, basic precautions should always be followed, including the following: This furnishing is made for commercial use only. Read all instructions before using this furnishing: DANGER To reduce the risk of electrical shock: 1.
- Page 3 LeanTo tablet assembly LeanTo tablet bracket install Before cutting any holes, check tablet and specific instructions for bracket locations needed. Outside View Inside View Use an icepick or regulator to locate these 6 holes 1.780698 Cut small X .90625 on these...
- Page 4 LeanTo tablet assembly LeanTo tablet bracket install - continued Before cutting any holes, check tablet and specific instructions for bracket locations needed. Outside View Inside View Install with 1/4-20 X 3/4" flat head screws Outside Bracket Inside Bracket ofs.com imagine a place®...
- Page 5 LeanTo tablet assembly LeanTo tablet bracket install - continued 1/4-20 X 3/4" Flat head screws 89T2 UR 89TR Shown Option Shown ofs.com imagine a place® 800.521.5381 Assembly instructions...
- Page 6 LeanTo tablet assembly 89GS Bracket location Bottom view 8 x 1 1/4" Flat head screw Outside brackets ofs.com imagine a place® 800.521.5381 Assembly instructions...
- Page 7 LeanTo tablet assembly 89GT2 Bracket location Bottom view 8 x 1 1/4" Flat head screw Outside brackets Inside brackets ofs.com imagine a place® 800.521.5381 Assembly instructions...
- Page 8 LeanTo tablet assembly 89GT1 Bracket location UQ position Inside Outside brackets brackets Bottom view 8 x 1 1/4" Flat head screw ofs.com imagine a place® 800.521.5381 Assembly instructions...
- Page 9 LeanTo tablet assembly 89GT1 Bracket location UR position Outside brackets Inside brackets Bottom view 8 x 1 1/4" Flat head screw ofs.com imagine a place® 800.521.5381 Assembly instructions...
- Page 10 LeanTo tablet assembly 89T1 Installation Bore 2 holes .125" down to .5" Template - fold line over side and bottom edge 8 x 3/4" Flat head wood screw ofs.com imagine a place® 800.521.5381 Assembly instructions...
- Page 11 LeanTo tablet assembly 89T1 Installation 1/4-20 x 3/4" 8 x 1 1/4" Flat head Flat head screws screw 1/4-20 x 1/2” Pan head screws ofs.com imagine a place® 800.521.5381 Assembly instructions...
