Staks benching assembly
Base assembly

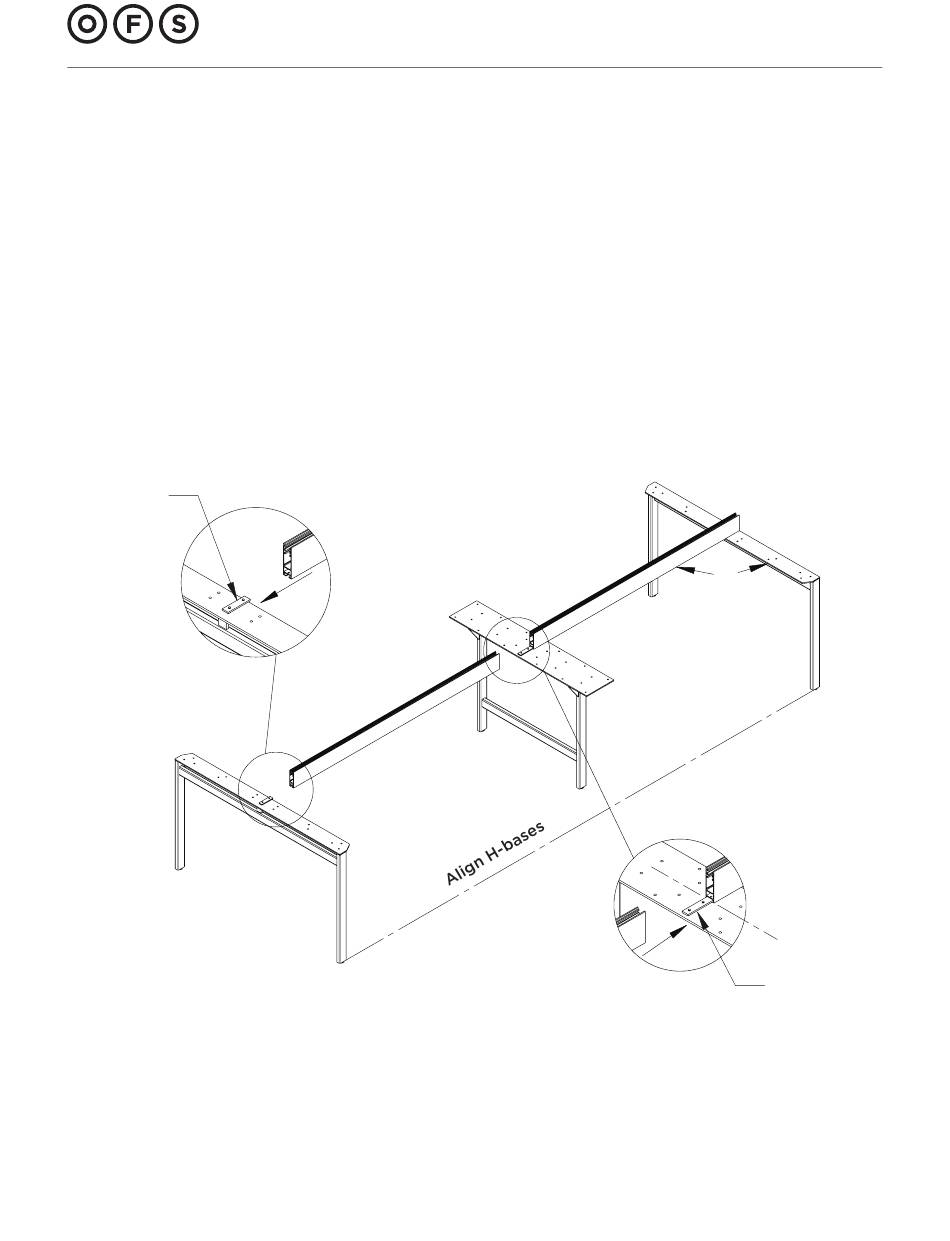

1.
Begin assembly of bench in its permanent location. Once assembled the bench will
be difficult to move.
2.
Attach T-nuts to H-bases using M6 x 16mm (Part #: 1416448) screws. Screw
through mount plate from below and into T-nut.
3.
Screw into T-nut only two or three turns, DO NOT tighten.
4.
Attach toolbar by sliding T-nut into bottom grooved section of toolbar.
5.
Align H-bases so they are perpendicular to the toolbars and all toolbars are in
a straight line.
6.
Toolbars must be flush to edge of outside bases and centered on the middle base(s).
7.
When toolbars are properly located, tighten screws.
800.521.5381
Assembly instructions
90˚
Center base model:
6-42CHBA1
6-30CHBA1
T-nut
Longer than end
base T-nut
Part #: 1552074
