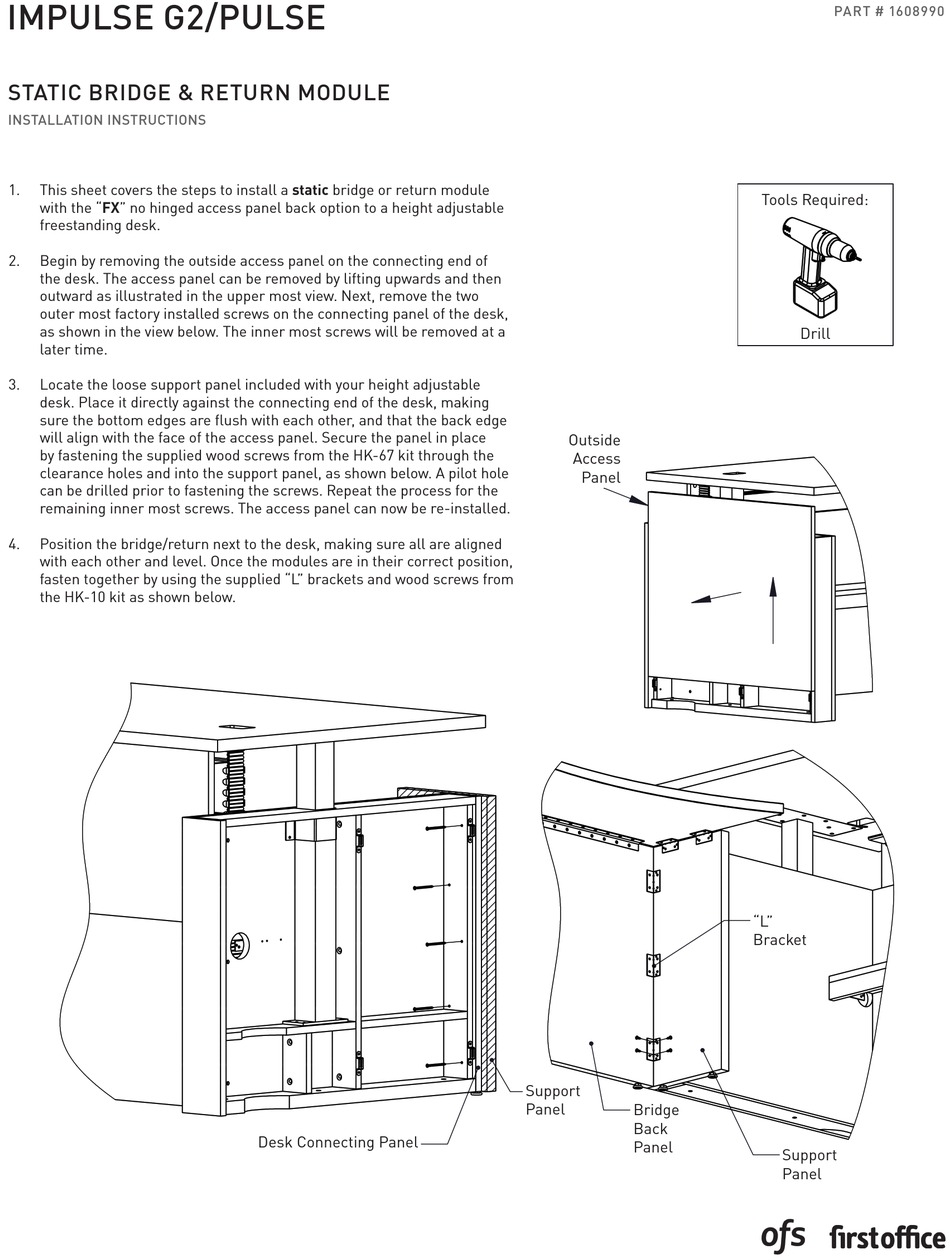

IMPULSE G2/PULSE
STATIC BRIDGE & RETURN MODULE
INSTALLATION INSTRUCTIONS
1.
This sheet covers the steps to install a static bridge or return module
with the "FX" no hinged access panel back option to a height adjustable
freestanding desk.
2.
Begin by removing the outside access panel on the connecting end of
the desk. The access panel can be removed by lifting upwards and then
outward as illustrated in the upper most view. Next, remove the two
outer most factory installed screws on the connecting panel of the desk,
as shown in the view below. The inner most screws will be removed at a
later time.
3.
Locate the loose support panel included with your height adjustable
desk. Place it directly against the connecting end of the desk, making
TOOLS REQUIRED:
sure the bottom edges are flush with each other, and that the back edge
will align with the face of the access panel. Secure the panel in place
by fastening the supplied wood screws from the HK-67 kit through the
clearance holes and into the support panel, as shown below. A pilot hole
can be drilled prior to fastening the screws. Repeat the process for the
remaining inner most screws. The access panel can now be re-installed.
Drill
4.
Position the bridge/return next to the desk, making sure all are aligned
with each other and level. Once the modules are in their correct position,
fasten together by using the supplied "L" brackets and wood screws from
the HK-10 kit as shown below.
This sheet covers the steps to install a static bridge or return module with the "FX" no hinged access panel back
option to a height adjustable freestanding desk.
Begin by removing the outside access panel on the connecting end of the desk. The access panel can be
removed by lifting upwards and then outward as illustrated in the upper most view. Next, remove the two outer
most factory installed screws on the connecting panel of the desk, as shown in the view above. The inner most
screws will be removed at a later time.
Desk
Connecting
Desk Connecting Panel
Panel
Static Bridge & Return Module Installation
INSTRUCTIONS
Outside
Access
Outside Access
Panel
Panel
Support
Support
Panel
Panel
TOOLS REQUIRED:
Tools Required:
Drill
Drill
Dwg:
1608990
"L"
"L" Bracket
Bracket
Bridge
Bridge
Back Panel
Back
Panel
Support
Support
This sheet covers the steps to in
Panel
Panel
option to a height adjustable f
Begin by removing the outside
removed by lifting upwards an
most factory installed screws o
screws will be removed at a la
Locate the loose support pane
PART # 1608990
Rev:
Static
