Summary of Contents for Ofs Gathr

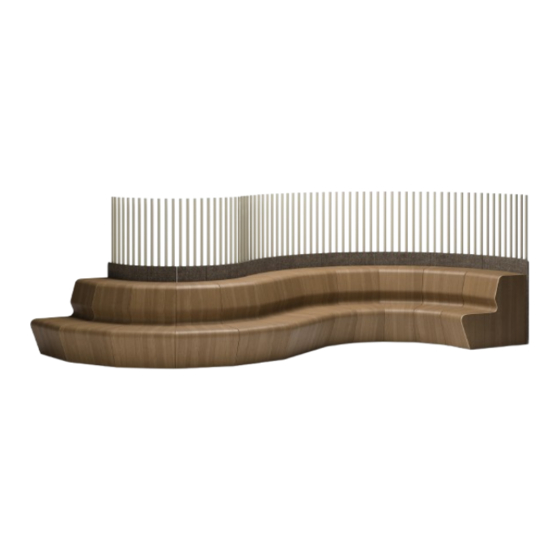

- Page 1 Gathr assembly instructions...
-
Page 2: Table Of Contents
Gathr assembly instructions Table of contents Attaching back panel Connecting ganging seats Attaching end panel Gathr island assembly Gathr Hydra assembly 8-10 Gathr Obeya assembly 11-16 ofs.com imagine a place® 800.521.5381 Assembly instructions... -
Page 3: Attaching Back Panel
Hardware kit: 1/4-20 X 1.75" Phillips truss head screw Note: Back panels are shipped separate from seat unit. Back panels for modular units can be upholstered, or upholstered with colonnades. Back panels for Obeya Gathr units will be upholstered only (Figure A) Note: The back panel must be attached before connecting the seats to one another. -
Page 4: Connecting Ganging Seats
Gathr assembly instructions Connecting ganging seats Tools/hardware required: Impact screwdriver #2 Quad drive bit 2-12" Squeeze clamps Level (minimum 3' recommended) Hardware: HK-15 Note: If using a back panel (with or without colonnades), you must attach the back before connecting the seats to one another. Refer to Attaching Back Panels section Slide the seats together and level them with one another. -
Page 5: Attaching End Panel
Gathr assembly instructions Attaching end panels Line up the four button connectors on the removable panel with the button fix on the seat end panel. Push in and then slide the panel downward. (Figure A) Figure A Button connector detail... -
Page 6: Gathr Island Assembly
Gathr assembly instructions Gathr island assembly Tools/hardware required: Impact screwdriver #2 Quad drive bit 2-12" Squeeze clamps Level (minimum 3' recommended) Hardware: HK-15 Note: Bolt seats together using instructions in Attaching Ganging Seats on page 3. First assemble each half round and straight section as shown below. (Figure A) Note: Some island set ups may not use straight modules, and will only consist of the outside wedge modules. - Page 7 Gathr assembly instructions Gathr island assembly continued Finish by dropping in the planter platform on top of the spacer supports inside of the unit. The platform will rest on the support spacers. (Figure D) Finish by adding the top panel, and inserting planter pots if specified. (Figure E)
-
Page 8: Gathr Hydra Assembly
Gathr assembly instructions Gathr Hydra assembly - Attaching seat, panel, and planter Tools/hardware required: 7/ 1 6 Wrench or socket Hardware: – HK-249 (for stand alone units with frame) – HK-252 (for stand alone units with upholstered panel) – HK-248 (for ganged units with frame) –... - Page 9 Gathr assembly instructions Gathr Hydra assembly - Attaching seat, panel, and planter continued Next slide the planter box against the frame and line up the bottom bolts with the insert nut. Tighten down. (Figure C) Now move to the top bolts inside the planter box and tighten down to the seat frame.
- Page 10 Gathr assembly instructions Gathr Hydra assembly - Ganging units together Note: HK-248 hardware kit is used to connect units with frame, HK-251 hardware kit is used to connect units that have an upholstered panel To attach frames together, use HK-248 hardware kit and pre-drilled holes in frame to bolt frames together (Figure A).
-
Page 11: Gathr Obeya Assembly
Gathr assembly instructions Gathr Obeya corner assembly Tools/hardware required: Impact screwdriver #2 Quad drive bit Level Hardware: HK-10 Place your corner top face down on a non-marring surface and position the base to be flush on the back corner edges of the top. (Figure A) Attach base to underside of corner top with four L brackets (two on each side) and 5/8"... - Page 12 Gathr assembly instructions Gathr Obeya corner assembly continued If an upholstered back panel is not specified, go to step 4. If using back panel, place three L brackets vertically along the applicable end panel of the base. (Figure C). Repeat for remaining end panel if necessary.
- Page 13 Gathr assembly instructions Gathr Obeya corner assembly continued Now level the base and adjust the height for the Gathr seating to slide under the top. If an upholstered back panel was specified, attach the back panel to the corner base with the installed L-brackets from step 3, using 5/8 pan head screws.
- Page 14 Gathr assembly instructions Gathr Obeya corner assembly continued Align the first seating module with the corner top. Locate the pre-drilled holes in the case spacer for attaching the top panel. Attach using HK-15 hardware. Place the next seating module and gang together using instructions in Attaching Ganging Seats on page 3.
- Page 15 If the corner unit is to be freestanding, add four of the button fix using the pre drilled holes for attaching the decorative end panel. (Figure H) If adding additional corner modules, repeat steps 1-12 in Obeya Gathr section. If adding a straight module, continue on to step 14.
- Page 16 Gathr assembly instructions Gathr Obeya straight assembly 14. If a back panel is specified, attach the back panel to the back of the straight unit with three L-brackets and 5/8 pan head screws from HK-10 Hardware. (Shown in step 11, Figure G) Note: The top panel will come preinstalled on the straight units.
