Summary of Contents for Ofs Heya

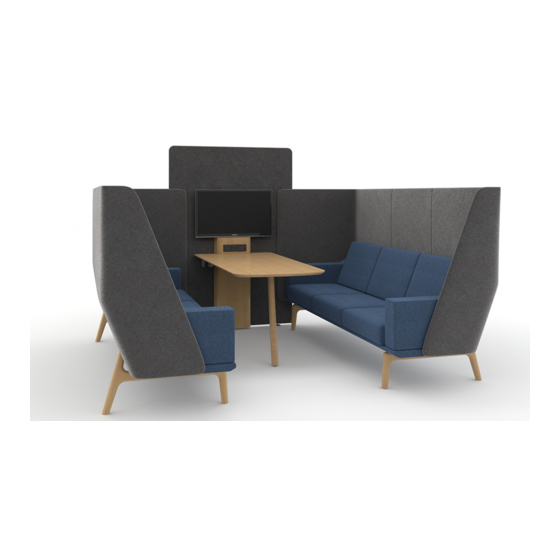

- Page 1 Heya assembly instructions...
- Page 2 Heya assembly instructions Important safety instructions When using an electrical furnishing, basic precautions should always be followed, including the following: This furnishing is made for commercial use only. Read all instructions before using this furnishing: DANGER To reduce the risk of electrical shock: 1.
- Page 3 Heya assembly instructions Heya Booth: Single media screen Deuce foot install Top view 36" Make sure units are square to each other to ensure proper assembly. 102" ofs.com imagine a place® 800.521.5381 Assembly instructions...
- Page 4 Heya assembly instructions Heya Booth: Single media screen Align all 4 connector slides on wall with connector posts on the surround and push down. 16.25" +/ - .25" when connected properly. Glides on wall should be close to...
- Page 5 Heya assembly instructions Heya Booth: Table install Side view ofs.com imagine a place® 800.521.5381 Assembly instructions...
- Page 6 Heya assembly instructions Heya single media screen 1. Install bracket to wall Hole locations for table brackets 2.5" 2.43" 12.95" Table bracket 22.66" 1/4 - 20 x 3/4" Truss head (X6) 2. Install leg to table Bottom view Turn angle of leg toward front of table top 1/4 - 20 x 3/4"...
- Page 7 Heya assembly instructions Heya single media screen 3. Install table to wall Bottom view 1/4 - 20 x 3/4" Truss head (X5) ofs.com imagine a place® 800.521.5381 Assembly instructions...
- Page 8 Heya assembly instructions Heya table install to DS & SS media screens (DS application shown) 1. Install table bracket For SS model screen: 1/4 - 20 x 3/4" truss head screw For DS model screen: 1/4 - 20 x 1 1/4" truss head screw 2.
- Page 9 Heya assembly instructions Heya table install to DS & SS media screens (DS application shown) 3. Install table 1/4 - 20 x 3/4" Truss head screw ofs.com imagine a place® 800.521.5381 Assembly instructions...
- Page 10 Heya assembly instructions Heya DS media screen foot install DLT foot option 3/8 - 16 x 1.5" Flat socket cap screw DFG/DFC foot option 3/8 - 16 x 2.25" Hex head bolt with 3/8" flat washer ofs.com imagine a place®...
- Page 11 Heya assembly instructions Heya single media screen Deuce foot install 3/8 - 16 x 3 1/2" Bolt 3/8 - 16 Hex nut nylon locking 3/8" Washer ofs.com imagine a place® 800.521.5381 Assembly instructions...
