Hardware
2.4

Connectors

2.4.1 20-Pin BoosterPack Connectors (J5 , J4)
The 20-pin BoosterPack connectors mate directly with the mmwave BoosterPack. The orientation of the
boards while connected must be ensured by matching the 3V3 and 5-V pin markings on both the boards,
as shown in Figure
2.4.2 60-Pin High Density (HD) Connector (P3)
The 60-pin HD connector (see
UART, I2C, NRST, NERR, and SOPs), and JTAG debug signals from the BoosterPack. The Trace and
DMM interface lines are also available through this connector.
8
MMWAVE-DEVPACK
6.

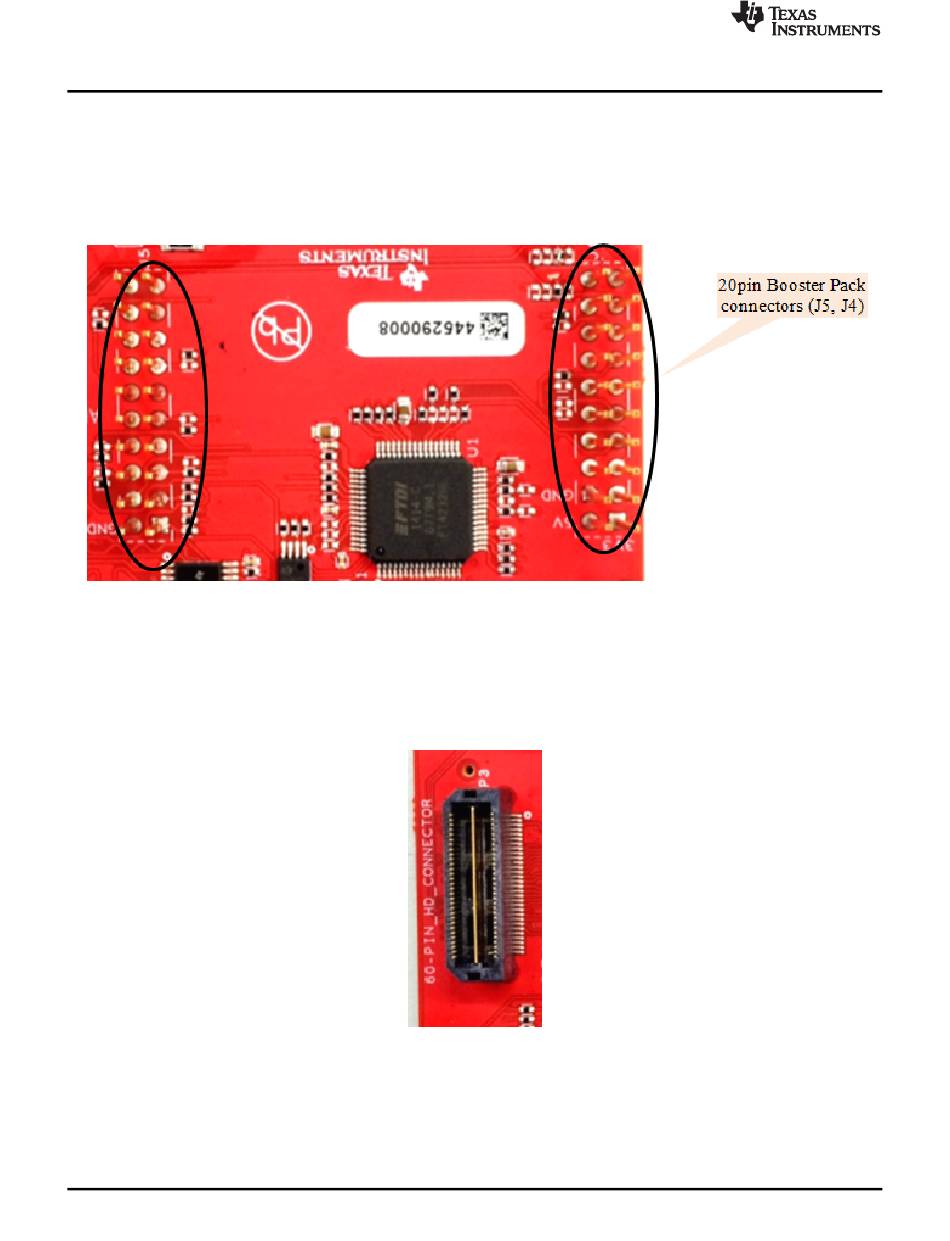

Figure 6. 20-Pin BoosterPack Connectors
Figure 7) provides the high-speed CSI/LVDS data, controls signals (SPI ,
Figure 7. 60-Pin HD Connector
