2.4.3 120-Pin High Density (HD) Connector (J6)
This connector enables interfacing the LVDS signals to the TSW1400 EVM or the CSI, and control signals
to the central processor board, as shown in
2.4.4 MIPI 60-Pin JTAG Connector (J3)
This connector provides the standard MIPI 60-pin interface for JTAG and trace capability (trace is
available only on the 1642 device), through emulators such as the XDS560pro (see
interface, tlhe JTAG lines to the onboard emulator (XDS110) on the mmwave BoosterPack must be
disconnected. This is done by removing the resistors R69, R70, R71, and R30 from the mmwave BOOST
boards.
SWRU506 – May 2017
Submit Documentation Feedback
Figure

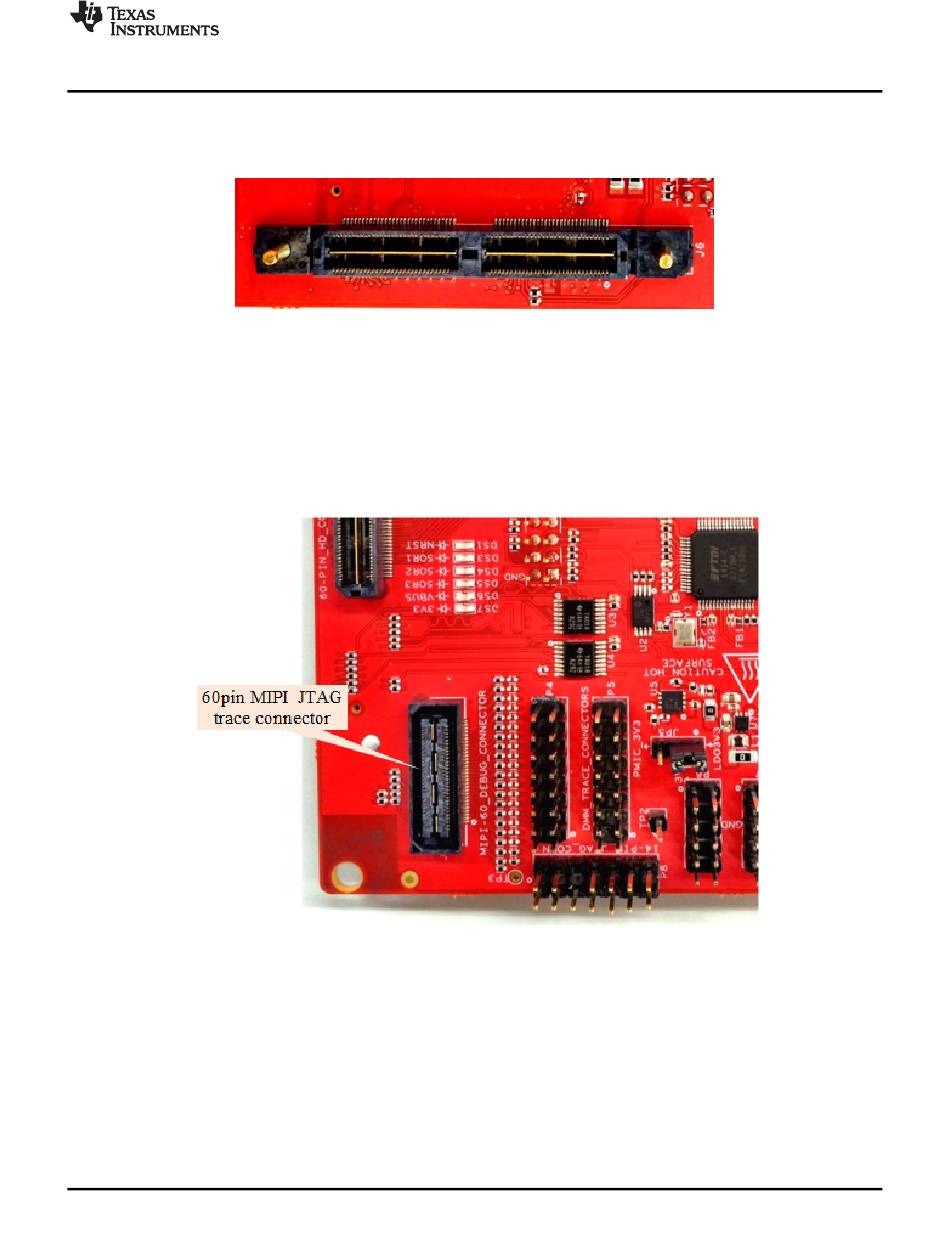

Figure 8. 120-Pin TSW EVM Interface Connector
Figure 9. MIPI 60-Pin JTAG Connector
