1

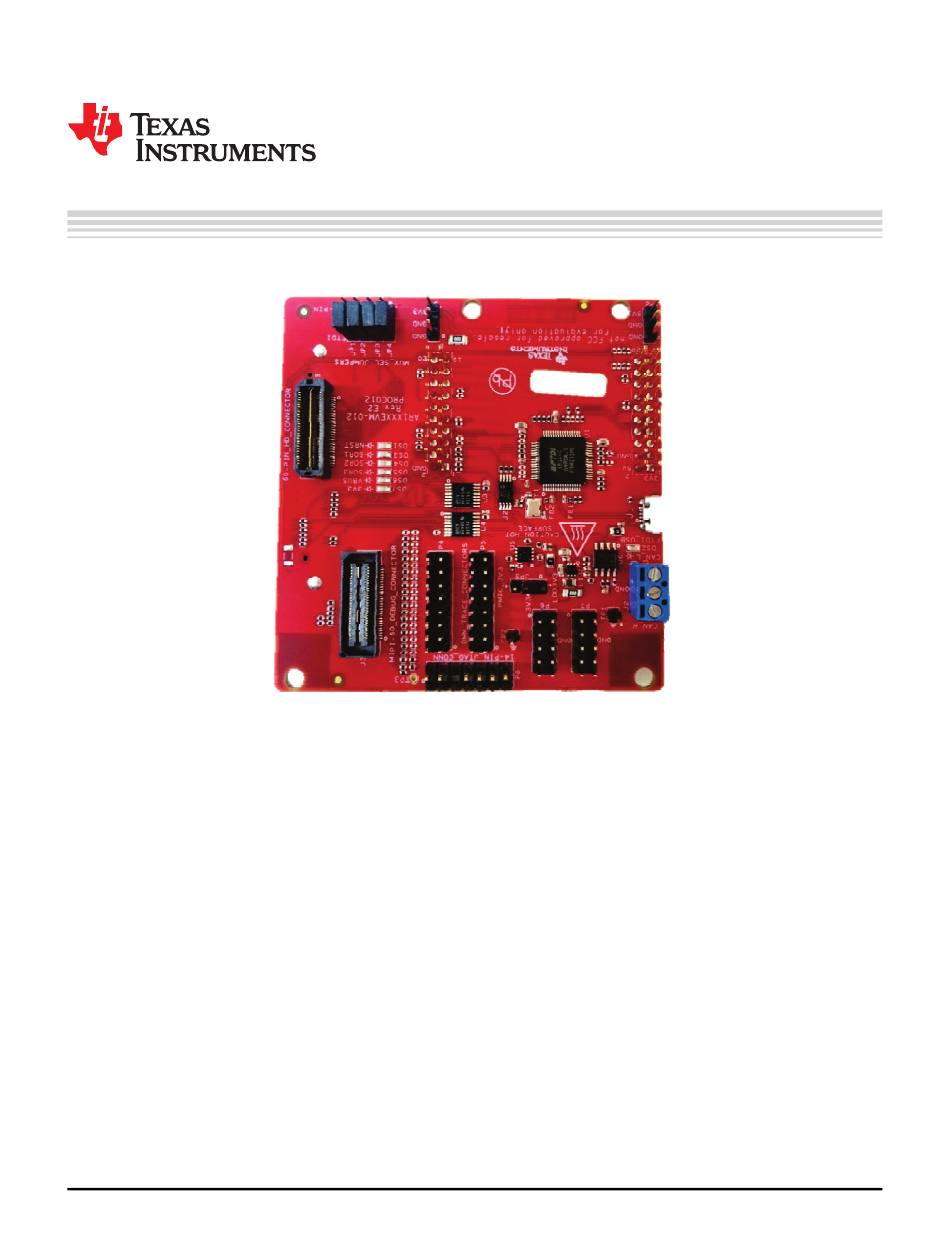

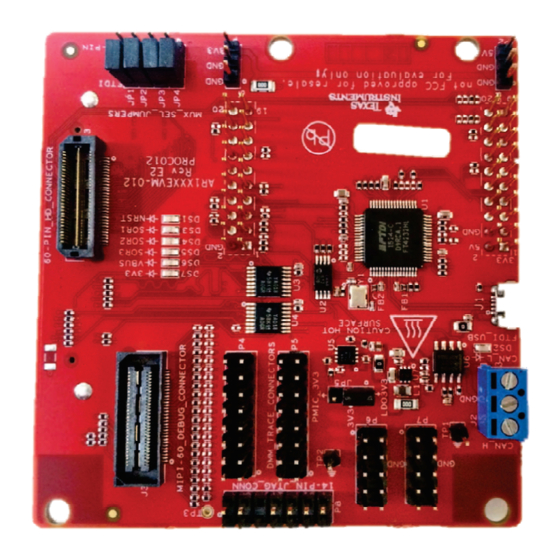

EVM Front View
2
EVM Rear View
3
Block Diagram
SWRU506 - May 2017
Submit Documentation Feedback
MMWAVE-DEVPACK
...............................................................................................................
..........................................................................................................
..........................................................................................................
.......................................................................................................
.................................................................................................
..........................................................................................................
.....................................................................................................
...............................................................................................
................................................................................
.........................................................................................
............................................................................................
..............................................................................................................
..............................................................................................................
................................................................................................................
Copyright © 2017, Texas Instruments Incorporated
MMWAVE-DEVPACK
Contents
..............................................
List of Figures
User's Guide
SWRU506 - May 2017
................................
MMWAVE-DEVPACK
3
3
3
4
6
6
7
8
10
11
12
12
12
14
4
5
6
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments MMWAVE-DEVPACK
Summary of Contents for Texas Instruments MMWAVE-DEVPACK
-
Page 1: Table Of Contents
Radar Studio Interface ........ Interfacing With the High-Speed Data Capture Platform: TSW1400 EVM List of Figures ......................EVM Front View ......................EVM Rear View ........................ Block Diagram SWRU506 – May 2017 MMWAVE-DEVPACK Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 2 TSW1400 Connection – Front View ..................TSW1400 Connection – Rear View ..................Connecting the mmWave DevPack List of Tables ......................... LEDs Trademarks Windows is a registered trademark of Microsoft Corporation. MMWAVE-DEVPACK SWRU506 – May 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 3: Getting Started
Getting Started Introduction The MMWAVE-DEVPACK is an add-on board used with TIs mmwave sensor EVMs (1243BOOST, 1443BOOST, and 1642BOOST) to provide more interfaces and PC connectivity to the mmwave sensor EVM. It provides an interface for the Radar Studio tool to configure the Radar device and capture the raw ADC data using a capture card, such as the TSW1400. -
Page 4: Hardware
(J4) 60-pin HD FTDI Connector MicroUSB Connector for PC Interface and Power CAN2 Connector 60-Pin MIPI JTAG Trace Connector DMM Header Figure 1. EVM Front View MMWAVE-DEVPACK SWRU506 – May 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 5 Hardware www.ti.com Figure 2. EVM Rear View SWRU506 – May 2017 MMWAVE-DEVPACK Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 6: Block Diagram
BoosterPack to DevPack, ensure the pin 1 orientation is correct by matching the 3V3 and 5-V signal marking on both the boards. Figure 4 illustrates the connection orientation. MMWAVE-DEVPACK SWRU506 – May 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 7: Power Connections
When the two boards are powered, the VBUS LED (DS6) and 3V3 LED (DS7) glow, as shown in Figure Figure 5. VBUS LED (DS6) and 3V3 LED (DS7) SWRU506 – May 2017 MMWAVE-DEVPACK Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 8: Connectors
UART, I2C, NRST, NERR, and SOPs), and JTAG debug signals from the BoosterPack. The Trace and DMM interface lines are also available through this connector. Figure 7. 60-Pin HD Connector MMWAVE-DEVPACK SWRU506 – May 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 9: 120-Pin Tsw Evm Interface Connector
JTAG lines to the onboard emulator (XDS110) on the mmwave BoosterPack must be disconnected. This is done by removing the resistors R69, R70, R71, and R30 from the mmwave BOOST boards. Figure 9. MIPI 60-Pin JTAG Connector SWRU506 – May 2017 MMWAVE-DEVPACK Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 10: Pc Connection
® device. This is indicated in the device manager with yellow exclamation marks, as shown in Figure Figure 11. Uninstalled Devices MMWAVE-DEVPACK SWRU506 – May 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 11: Jumpers And Leds
JP2 -> selects the path for loggers and GPIO_1 signals. JP3 -> selects the path for INTR, warmrst, GPIO_0, and GPIO_2 signals. JP4 -> selects the path for SPI signals. Figure 13. MUX Select Jumpers SWRU506 – May 2017 MMWAVE-DEVPACK Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 12: Design Files And Software Tools
SOP controls, and nRST control is performed from the FTDI chip on the DevPack. For details on the usage of Radar Studio, refer to the RadarStudio User's Guide.pdf, which is part of the DFP package. MMWAVE-DEVPACK SWRU506 – May 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 13: Mux Control Jumpers
The BoosterPack is powered by the 5-V supply. The micro USB cables for both the DevPack and the BoosterPack must be connected. Refer to Figure SWRU506 – May 2017 MMWAVE-DEVPACK Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 14: Interfacing With The High-Speed Data Capture Platform: Tsw1400 Evm
Platform. To configure this, TSW1400 HSDC Pro software and Radar Studio are required. For the installation and usage of the HSDC Pro tool, refer to the RadarStudio User's Guide.pdf, which is including in the DFP package. MMWAVE-DEVPACK SWRU506 – May 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 15: Tsw1400 Connection - Front View
The length can be increased accordingly, based on user need, when ordering the cable. Figure 18. TSW1400 Connection – Front View Figure 19. TSW1400 Connection – Rear View SWRU506 – May 2017 MMWAVE-DEVPACK Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 16: Connecting The Mmwave Devpack
120-pin connector. Also, the user must ensure that the fan of the TSW1400 board does not touch anything. Figure 20. Connecting the mmWave DevPack MMWAVE-DEVPACK SWRU506 – May 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 17 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. SWRU506 – May 2017 MMWAVE-DEVPACK Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
