To install the devices, download the latest FTDI drivers available in the
click on these devices, and update the drivers by pointing to the location where the FTDI drivers were
downloaded. This must be done for all four COM ports. When all four COM ports are installed, the device
manager recognizes these devices and indicates the COM port numbers, as shown in
2.6

Jumpers and LEDs

2.6.1

MUX Select Jumpers

The digital signals such as SPI, INTR, nRST, GPIOs, and SOP controls, can either go to the FTDI chip
(for control from the PC) or to the 120-pin connector (for processor connectivity such as the TDA3). These
jumpers are shown in
The jumper position of pin 2-3 connected selects the FTDI path.
The jumper position of pin 2-1 connected selects the 120-pin connector path.
JP1 -> selects the path for nRST and SOP signals.
JP2 -> selects the path for loggers and GPIO_1 signals.
JP3 -> selects the path for INTR, warmrst, GPIO_0, and GPIO_2 signals.
JP4 -> selects the path for SPI signals.
SWRU506 – May 2017
Submit Documentation Feedback

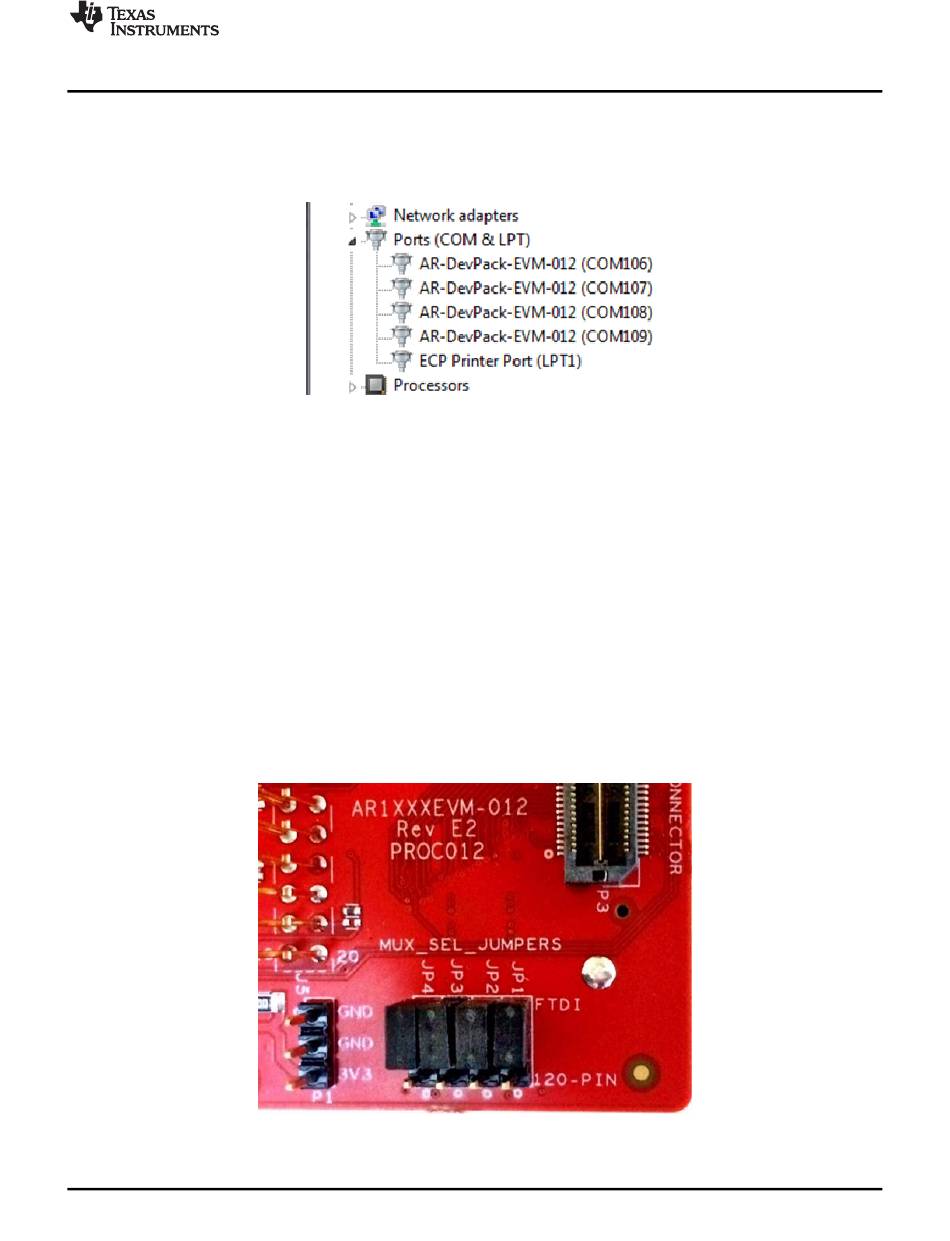

Figure 12. COM Ports After the Driver Installation
