Interfacing With Other Platforms
If the user does not have the 120-pin Samtec cable, the mmwave dev pack can be directly connected to
the TSW1400 board, as shown in
properly mechanically supported, to avoid stress on the 120-pin connector. Also, the user must ensure
that the fan of the TSW1400 board does not touch anything.
16
MMWAVE-DEVPACK
Figure 20. In this case, the user must ensure that all three boards are

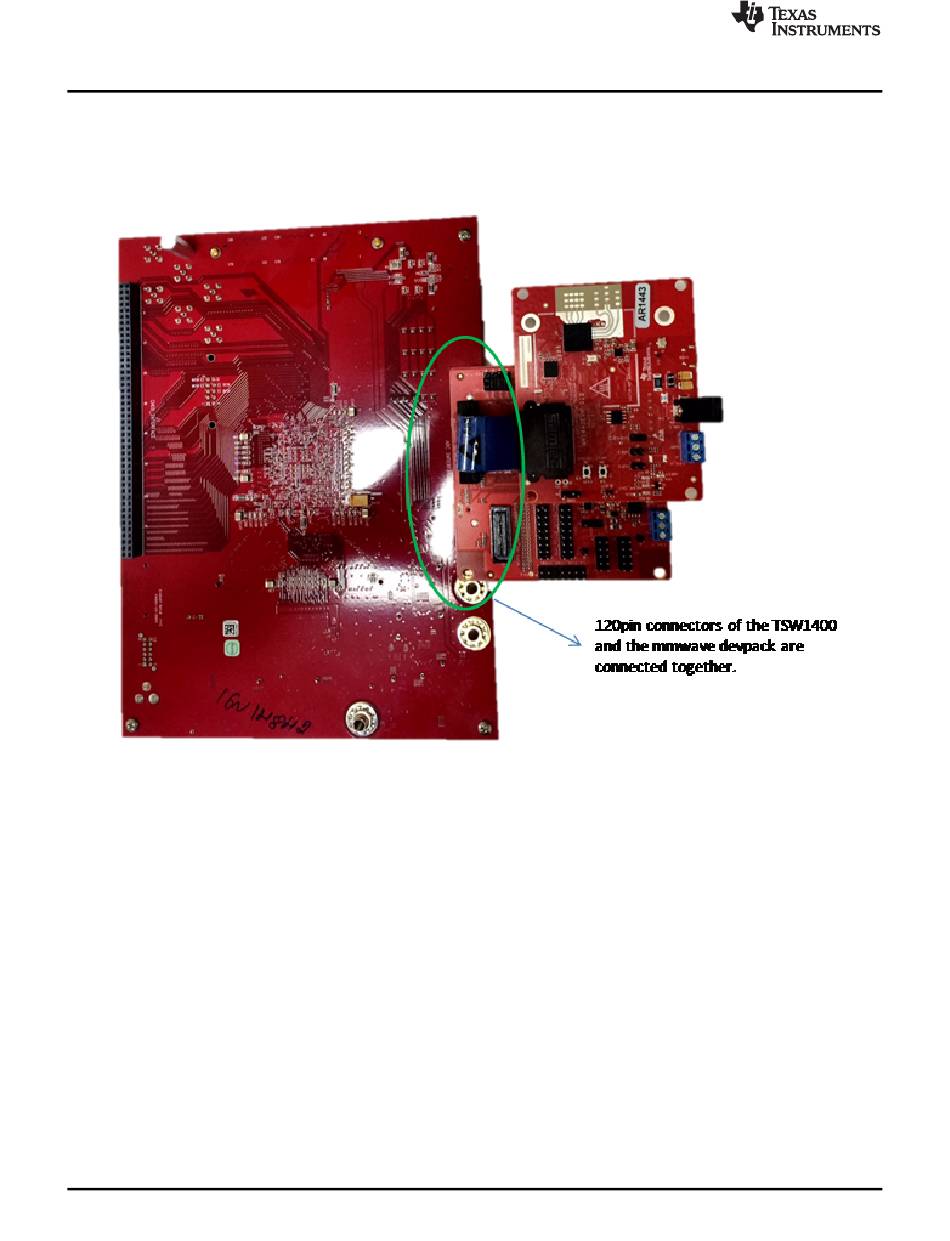

Figure 20. Connecting the mmWave DevPack
