Thank you for purchasing this product.
Before using the product, please read this instruction manual to ensure correct operation.
1
PRODUCT DESCRIPTION
PIR-T40NAM (W) is passive infrared sensor that detects far-infrared rays emitted from the human body and outputs a contact signal.
Since this unit significantly reduces lost and false detection using the unique triple mirror and signal processing systems, it can be
used both for indoor and outdoor applications. This unit has the following features suitable for multiple applications.
• Detection distance up to
• Detection distance and direction adjustable
• Mounting height of 6.6' to 13'(2 to 4m) for normal operation (max. 20'(6m) in specialized operation modes)
• Equipped with N.C. contact output for security and N.O. contact output for activation of ancillary devices
• Can be mounted on wall surfaces, as well as on poles, ceilings, and under eaves using the optional accessories (sold separately)
• Equipped with anti-masking and back tamper functions for more secure protection
2

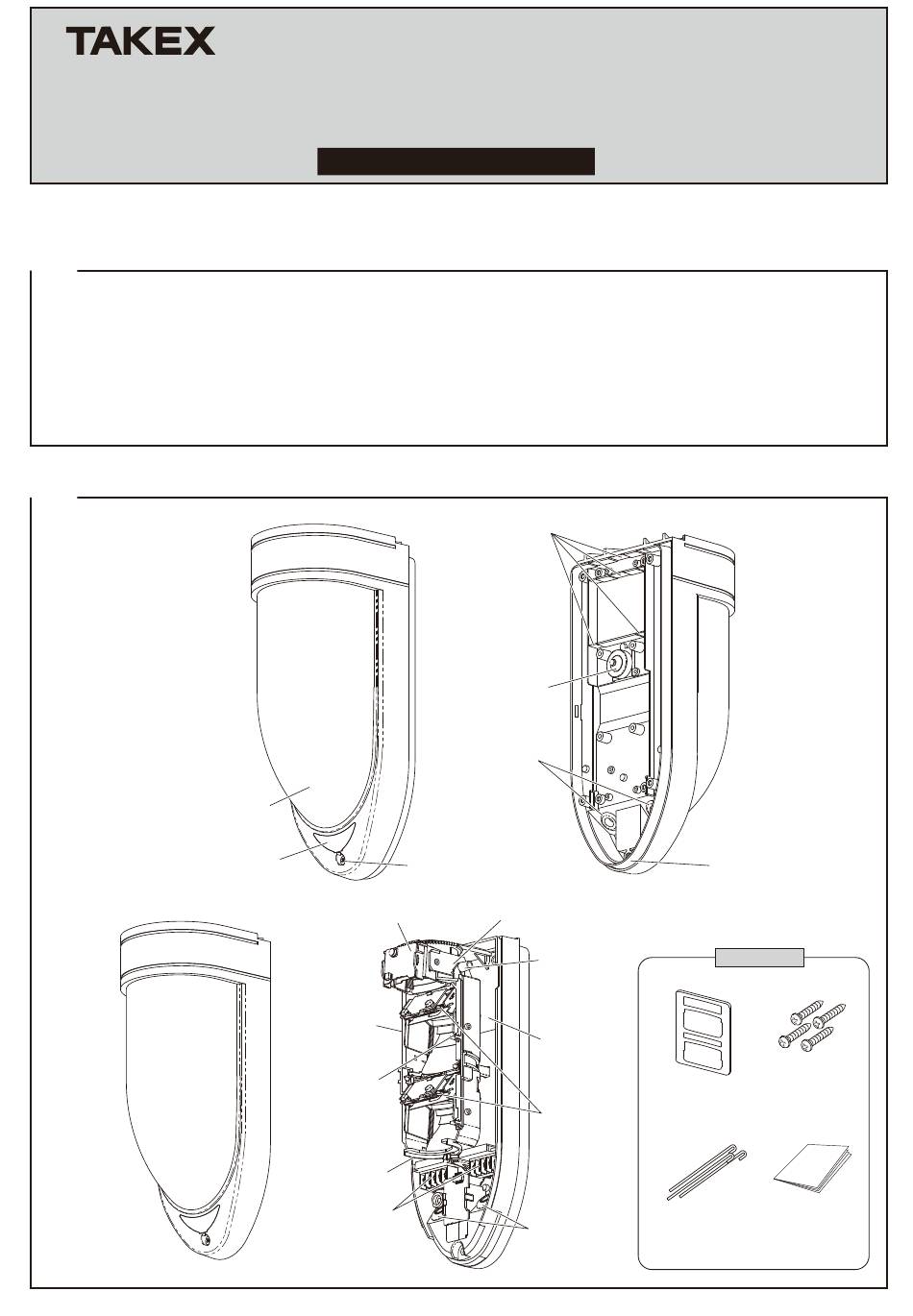

PARTS DESCRIPTION
Memory LED
: Red (embedded)
: Red (embedded)
[Cover unit]
TRIPLE MIRROR PASSIVE SENSOR
PIR-T40NAM (W)
(Vertical curtain protection)
Instruction Manual
115'(40m)（Max 150'(45m) with high density mode）
Alarm LED
[Mirror unit]
Mode setting
table
Area selector
Mode selector
Terminal block
[Sensor unit]
Wiring hole for
exposed wiring
(Knockout)
Back tamper
Wiring hole
(with grommet)
Cover locking screw
Indicator
Mirror
locking screw
Area setting
table
Alignment
lever
Wiring hole
(with grommet)
①
Wiring hole for
exposed wiring
(Knockout)
Accessories
Tapping screw
φ4×30
Area masking sheet
(4 pcs)
(1 sheet)
Instruction
Anti bird spike
manual
(3 pcs)
This document
