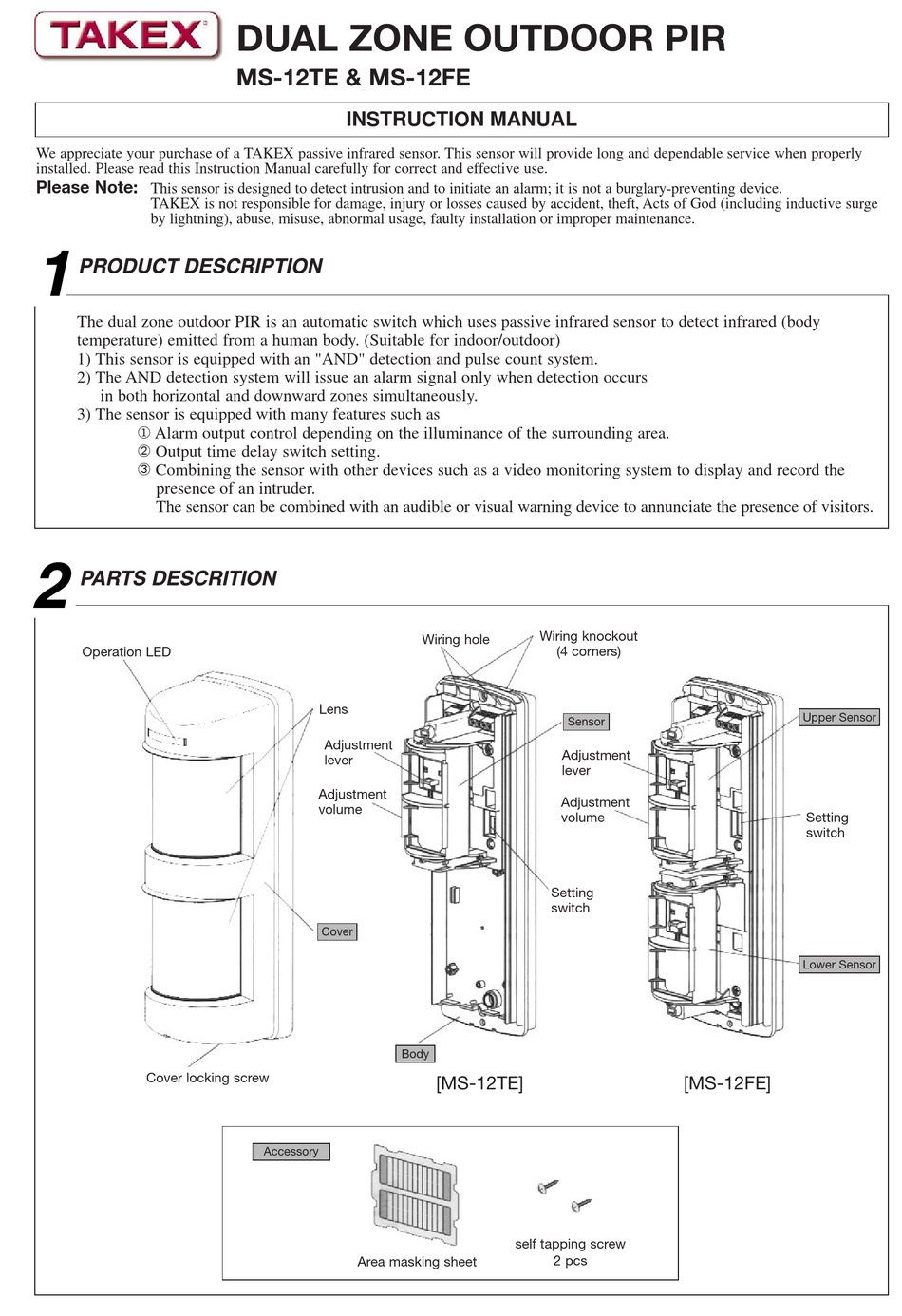

We appreciate your purchase of a TAKEX passive infrared sensor. This sensor will provide long and dependable service when properly
installed. Please read this Instruction Manual carefully for correct and effective use.
Please Note:
This sensor is designed to detect intrusion and to initiate an alarm; it is not a burglary-preventing device.
TAKEX is not responsible for damage, injury or losses caused by accident, theft, Acts of God (including inductive surge
by lightning), abuse, misuse, abnormal usage, faulty installation or improper maintenance.
The dual zone outdoor PIR is an automatic switch which uses passive infrared sensor to detect infrared (body
temperature) emitted from a human body. (Suitable for indoor/outdoor)
1) This sensor is equipped with an "AND" detection and pulse count system.
2) The AND detection system will issue an alarm signal only when detection occurs
in both horizontal and downward zones simultaneously.
3) The sensor is equipped with many features such as
¬ Alarm output control depending on the illuminance of the surrounding area.
Á Output time delay switch setting.
 Combining the sensor with other devices such as a video monitoring system to display and record the
presence of an intruder.
The sensor can be combined with an audible or visual warning device to annunciate the presence of visitors.
Operation LED
Cover locking screw
DUAL ZONE OUTDOOR PIR
MS-12TE & MS-12FE
INSTRUCTION MANUAL
Lens
Adjustment
lever
Adjustment
volume
Cover
Body
Accessory
Area masking sheet
Wiring knockout
Wiring hole
(4 corners)
Sensor
Adjustment
lever
Adjustment
volume
Setting
switch
[MS-12TE]
self tapping screw
2 pcs
Upper Sensor
Setting
switch
Lower Sensor
[MS-12FE]
Advertisement
Related Manuals for Takex MS-12TE
Summary of Contents for Takex MS-12TE
- Page 1 DUAL ZONE OUTDOOR PIR MS-12TE & MS-12FE INSTRUCTION MANUAL We appreciate your purchase of a TAKEX passive infrared sensor. This sensor will provide long and dependable service when properly installed. Please read this Instruction Manual carefully for correct and effective use. Please Note: This sensor is designed to detect intrusion and to initiate an alarm;...
-
Page 2: Precautions On Installation
1. Precautions on Installation • • • Install the unit at the height of 2.6’ to 4.0’ from the ground. Do not install the unit by Remove all obstructions an air conditioning exhaust (trees, clotheslines, etc.). vent. 2.6’~4.0’ (0.8~1.2m) • Install the unit horizontally so that its horizontal zone is •... - Page 3 Detection distance can be set by adjusting the angle of downward zone. Detection distance It does not detect small MS-12TE is equipped with 1 set of sensor on the animals, which are not likely upper side. to reach the height of horizontal zone.
- Page 4 [Wall detection] • Detection distance adjustment Detection distance can be adjusted within a range from 10’(3m) to 40’(12m) by turning the angle of downward zone vertically. Refer to the index and slide the adjustment lever up or down. Slide it up and the detection distance becomes shorter, sliding it down, detection distance becomes longer.
- Page 5 Warm up period Contact output selectable Operation LED blinks for about 1 min after supplying power. a (N.O) • The unit doesn’t operate for this time as it is the sensor stabilising period. b (N.C) • [Factory set] Pulse count selectable Detection mode [Only applicable to MS-12FE] The number of counts can be selected according to the...
-
Page 6: Supply Voltage
2) The signal line can be wired to a distance of up to 3,000ft. • 12V to 30VDC (Non Polarity) (1,000m) with AWG 22 (dia. 0.65mm) telephone wire. • Power consumption 35mA MAX (MS-12TE) 3. Wire Insertion 40mA MAX (MS-12FE) Exposed wiring OUTPUT SIGNAL •... - Page 7 (5) Readjust sensitivity, masking or count if necessary. Solve possible problems according to the following table. If normal operations cannot be restored by this means, contact either the dealer from whom you bought the unit or TAKEX. Trouble Check...
- Page 8 Aviary Court, Wade Road, All other warranty periods agreed are subject to a formal written agreement. Basingstoke, During the warranty period, TAKEX Europe Ltd. will repair or replace, as its sole HANTS RG24 8PE option, free of charge, any defective parts returned prepaid.
