Takex PXB-50HF-KH Instruction Manual

PXB- 50HF-KH: OUTDOOR 165ft ( 50m)
PXB- 100HF-KH: OUTDOOR 330ft (100m)
PXB- 200HF-KH: OUTDOOR 660ft (200m)
Thank you for purchasing this product.
Read this instruction manual before using the product to make sure that you use it correctly.

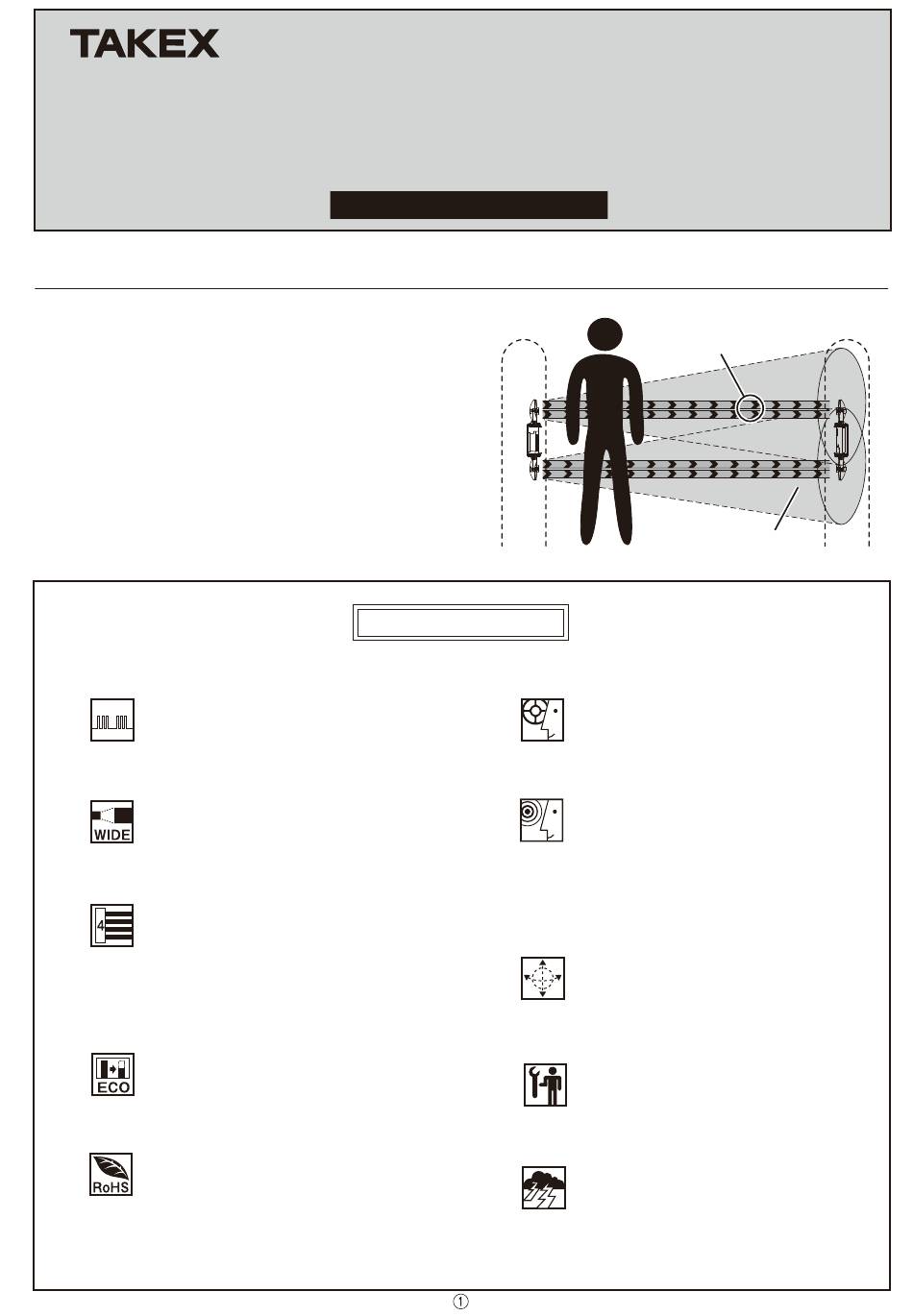

This device is an opposed type photoelectric beam sensor that consists
of a photo transmitter that transmits infrared light, and a photo
receiver for the transmitted light, as shown in the illustration on the
right.
The infrared light transmitted from the transmitter expands in a cone
shape, while the light beams enter the receiver.
The straight line that connects the transmitter with the receiver is the
detection line.
If the detection line is obstructed (light is obstructed for more than
0.05 – 0.7 seconds), the receiver detects this break in the light beams,
and outputs a signal.
In order to ensure that the detection line has sufficient margin of
sensitivity, adjust the direction of the light beams before placing the
system into operation. Providing sufficient margin of sensitivity
reduces the occurrence of malfunction caused by dense fog, heavy rain,
frost, snow, and other such weather conditions.
(1) DOUBLE MODULATION
Double
distinguish the external lights.
It increases the reliability in the outdoor security
system.
(2) WIDE BEAM
The pitch between upper beam and lower one is
widened more than old models.
False alarm by birds and falling leaves reduces
drastically.
(3) QUAD HIGH POWER BEAM
The beam power is 100 times of
requirement.
The beam distance is 10 times of the described
specifi cation.
This high power beam also realizes the reliability
against the harsh conditions like fog, snow, heavy
rain.
(4) LOW CURRENT CONSUMPTION
50% less than remaining models. The battery size
may reduce,
installation cost may decrease.
(5) ECOLOGY
RoHS adapted – Environment friendly. Free from
Lead, Mercury, Cadmium, Hexavalent chromium,
Polybrominated biphenyl, Polybrominated diphenyl
ether.
PHOTOELECTRIC BEAM SENSOR
Instruction Manual
Main Features
modulated beams are designed
the minimum
wiring diameter may
Transmitter
(6) DUAL RING SIGHT
to Enables better and clear view for easy beam
alignment.
(7) TARGET COLOR
The vivid color of the internal structure can be
recognized easily from the far end in the beam
alignment procedure.
The color differs between a transmitter and a
receiver which helps easy installation and
checking.
(8) INCREASED ANGLE
ADJUSTMENT ALLOWANCE
Vertically ±20˚ compared with previous version.
It may adapt to the slope installation fl exibly.
(9) WIRELESS ALIGNMENT CHECKER
Enables easy and accurate beam alignment.
lessen,
(Sold separately)
(10) LIGHTNING PROTECTION
Minimize the damage by the induced thunder
through wirings.
It may stand 10000V under normal mode,
15000V under common mode.
Detection line
Coverage of light beams
Receiver
