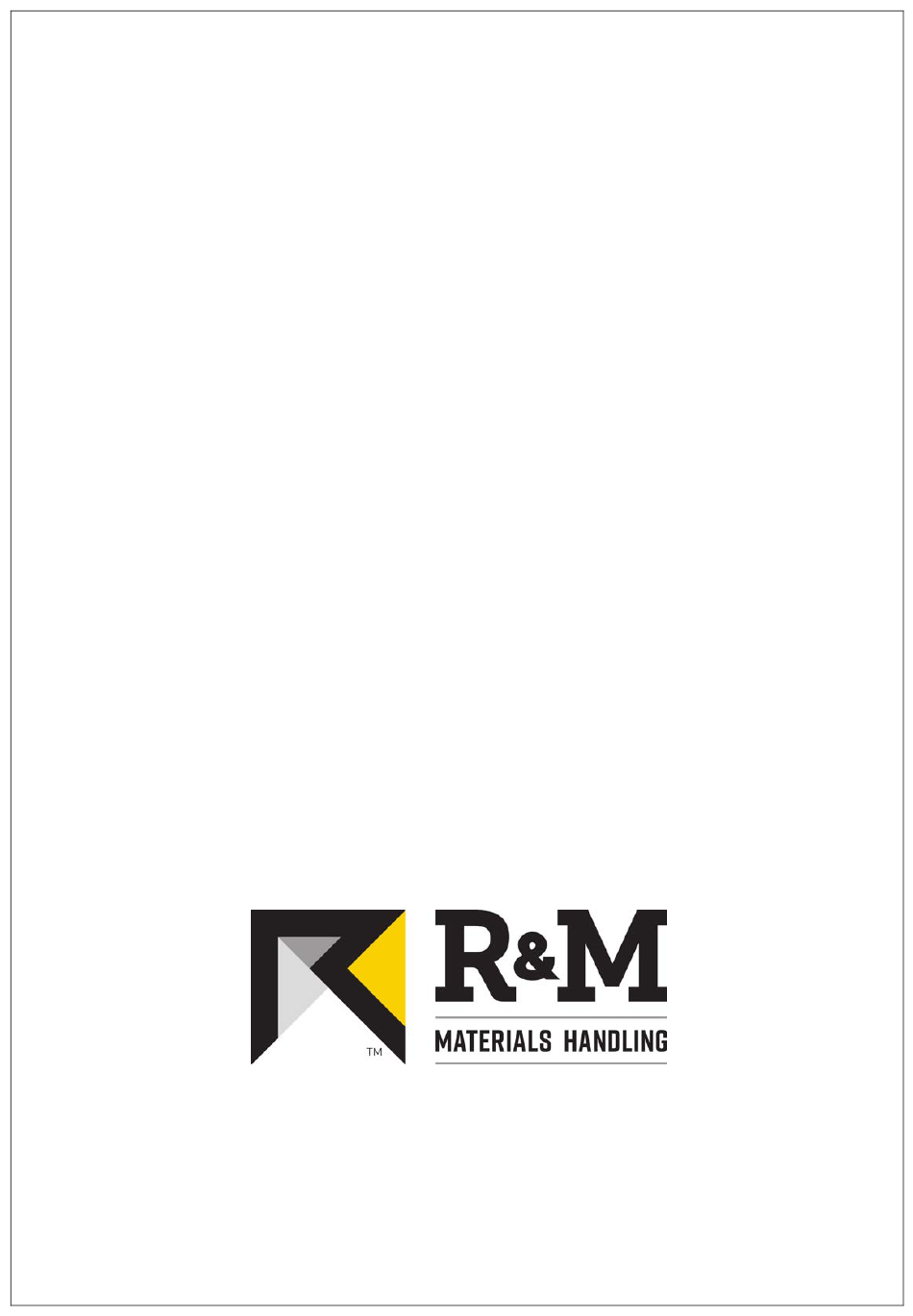

INSTALLATION AND
MAINTENANCE MANUAL
LM CHAIN HOIST
LOADMATE
English
STD-R-KHA-F-CQD-ENG
This document and the information contained herein, is the exclusive property of R&M Materials Handling, Inc., and represents a non-public, confidential and proprietary trade secret that
may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of R&M Materials Handling, Inc.
Copyright © (2010) R&M Materials Handling, Inc. All rights reserved.
®
LM1

Advertisement

Table of Contents
loading

Related Manuals for R&M LOADMATE LM Series

Summary of Contents for R&M LOADMATE LM Series

  • Page 1 INSTALLATION AND MAINTENANCE MANUAL LM CHAIN HOIST ® LOADMATE English STD-R-KHA-F-CQD-ENG This document and the information contained herein, is the exclusive property of R&M Materials Handling, Inc., and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of R&M Materials Handling, Inc. Copyright ©...
  • Page 2 LM01 I&M MANUAL/EN/11.30.2010 THIS PAGE INTENTIONALLY LEFT BLANK 2/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...

  • Page 3: Table Of Contents

    LM01 I&M MANUAL/EN/11.30.2010 CAUTION: Read the instructions supplied with the product before installation and commissioning. CAUTION: Keep the instructions in a safe place for future reference. Table of contents INTRODUCTION ............................5 Contact Information ........................... 5 Warranty ............................5 Disclaimer ............................5 Safety ..............................
  • Page 4 LM01 I&M MANUAL/EN/11.30.2010 5.9.2 Control Fuses..........................35 5.10 Control Panel Layout – Three Phase – Two Speed ................ 36 5.11 Control Panel Layout – Single Phase – Single Speed – 115 Volt ........... 37 5.12 Wiring Diagrams ..........................38 5.12.1 Wiring Diagram –...

  • Page 5: Introduction

    LM01 I&M MANUAL/EN/11.30.2010 INTRODUCTION Contact Information Please do not hesitate to use the following contact information in the event that you may need assistance: R&M MATERIALS HANDLING, INC. 4501 Gateway Boulevard Springfield, OH 45502 General Telephone: 937 - 328-5100 Toll Free Telephone (US): 800 - 955-9967 General Fax: 937 - 325-5319...

  • Page 6: Safety

    LM01 I&M MANUAL/EN/11.30.2010 Safety Read and understand this manual before using the hoist. Important issues to remember during installation, operation, maintenance, and inspection are provided at the hoist control stations, at various locations on the hoist, in this manual, and in the LoadMate®...
  • Page 7 LM01 I&M MANUAL/EN/11.30.2010 The words SHALL and SHOULD are used throughout this manual in accordance with definitions in the ASME B30 standards as follows: SHALL indicates a rule is mandatory and must be followed. SHOULD indicates a rule is a recommendation, the advisability of which depends on the facts in each situation.

  • Page 8: Placards And Instructions

    LM01 I&M MANUAL/EN/11.30.2010 NOTICE: It is a responsibility of the owner / user to install, inspect, test, maintain, and operate a hoist in accordance with the ASME B30.16 Safety Standard, OSHA Regulations, and ANSI / NFPA 70, National Electric Code. If the hoist is installed as part of a total lifting system, it is also the responsibility of the owner / user to comply with the applicable ASME B30 volume that addresses other types of equipment used in the system.

  • Page 9: Installation

    LM01 I&M MANUAL/EN/11.30.2010 INSTALLATION DANGER: Before installing, removing, inspection, or performing any maintenance on a hoist, the main switch shall be de-energized. Lock and tag the main switch in the de- energized position in accordance with ANSI Z244.1. Follow other maintenance procedures outlined in this manual and ASME B30.16.

  • Page 10: Mounting

    LM01 I&M MANUAL/EN/11.30.2010 Mounting Below are three types of mounting: 1. Hook Mounted 2. Base Mounted 3. Coupling Mounted 4. Trolley Mounted – NOT SHOWN – is accomplished via a Hook or Trolley Coupling to the Trolley Assembly. Figure 1. Mounting Types For all trolley-mounted hoists, refer to appropriate trolley manual for trolley installation instructions.

  • Page 11: Electrical Connection

    LM01 I&M MANUAL/EN/11.30.2010 Electrical Connection The user / owner must provide the main power supply hardware (cable, conductor bar, fuses, disconnect switch, etc.). CAUTION: Make sure that the power supply voltage is the same as that shown on hoist serial plate / nameplate.

  • Page 12: Three Phase Power Connections

    LM01 I&M MANUAL/EN/11.30.2010 Three Phase Power Connections Figure 2. Three Phase Control Box Power Connections 1. Remove control box cover. 2. Insert power supply cable through cable gland or assemble to (optional) plug. 3. Connect power leads L1, L2, and L3 to relay K21. 4.

  • Page 13: Single Phase Power Connections

    LM01 I&M MANUAL/EN/11.30.2010 Single Phase Power Connections Figure 3. Single Phase Control Box Power Connections PUSHBUTTON POWER PLUG CABLE GLAND 1. Remove control box cover. 2. Insert power supply cable through power cable gland (Figure 3). 3. Connect power leads L1 and L2 to terminal strip (Figure 3). 4.

  • Page 14: Initial Start-Up

    LM01 I&M MANUAL/EN/11.30.2010 INITIAL START-UP WARNING: Before connecting power to hoist, check all “motion” buttons on pendant control assembly to make sure that they operate freely without binding or sticking. Check pendant cable and strain relief connection to ensure that they are not damaged. General Initial start-up procedures are as follows: Read all attached WARNING tags and placards affixed to hoist.

  • Page 15: Operational Checks - No Load

    LM01 I&M MANUAL/EN/11.30.2010 Operational Checks – No Load Check hoist motor brake function. Run empty load block up or down to check that load block does not drift more than 1.0 inch [25mm]. If so, adjust brake as described in Section 5.3 of this manual. Run empty load block down to check that fall stop (located on free end of load chain) makes proper contact with upper / lower travel safety limit switch and that limit switch functions properly.

  • Page 16: Hoist Operation

    LM01 I&M MANUAL/EN/11.30.2010 HOIST OPERATION WARNING: BEFORE PROCEEDING WITH THE NORMAL OPERATION OF THIS HOIST, THE OPERATOR/(S) SHALL BE TRAINED IN ACCORDANCE WITH THE LoadMate® Electric Chain Hoist Operator’s Manual AS SUPPLIED WITH THIS HOIST. WARNING: FAILURE TO READ AND COMPLY WITH ANY ONE OF THE LIMITATIONS NOTED IN THIS MANUAL AND THE LoadMate®...

  • Page 17: Maintenance

    LM01 I&M MANUAL/EN/11.30.2010 MAINTENANCE Basic Hoist Construction Figure 4. Basic Hoist Components 1. LOAD BLOCK ASSEMBLY (2-FALL SHOWN) 2. LOAD CHAIN 3. ELECTRICAL CONTROL ENCLOSURE 4. TOP HOOK 5. HOIST GEAR BOX ASSEMBLY 6. CHAIN CONTAINER & HARDWARE 7. HOIST BODY / MOTOR 8.

  • Page 18: Hoist Motor Brake And Load-Limiting Device

    LM01 I&M MANUAL/EN/11.30.2010 Hoist Motor Brake and Load-Limiting Device The hoisting motor is equipped with a D.C. electromagnetic disc brake. The brake brings the load to a smooth and quick stop and holds the load when the motor is not energized. An energized coil releases the hoist brake to allow the hoisting motor to run freely when in use.
  • Page 19 LM01 I&M MANUAL/EN/11.30.2010 Figure 5. Cross Section of Hoist Brake / Slip Clutch P01017 Table 1. Hoist Brake / Slip Clutch Parts List ITEM DESCRIPTION ELECTROMAGNETIC COIL BRAKE LINING PLATE BRAKE AND SLIP CLUTCH DISC SLIP CLUTCH LINING DISC SCREWS SLEEVE ELASTIC WASHERS MOTOR SHAFT...

  • Page 20: Slip Clutch Adjustment After Installation

    LM01 I&M MANUAL/EN/11.30.2010 SEE Figure 5 CAUTION: Make sure the motor is not running before placing tool on the nut to adjust it. Do not touch any moving components. CAUTION: The slip-clutch generates heat when slipping. ITEMS 3 & 4 absorb this heat. When these items become too hot, clutch adjustment may be difficult due to unstable behavior of friction surfaces.

  • Page 21: Hoist Motor Brake Adjustment (See Figure 5)

    LM01 I&M MANUAL/EN/11.30.2010 5.3.3 Hoist Motor Brake Adjustment (See Figure 5) If maximum air gap of brake has been reached or will be exceeded before next inspection, readjust air gap. Minimum air gap Maximum air gap X = 0.006” [ 0.15 mm ] X = 0.020”...

  • Page 22: Replacement Criteria For Motor Brakes

    LM01 I&M MANUAL/EN/11.30.2010 5.3.4 Replacement Criteria for Motor Brakes Table 2. Replacement Criteria for Motor Brakes THICKNESS AS NEW REPLACE WHEN LM 01 0.260 inches (6.6 mm) 0.220 inches (5.6 mm) LM 05 0.370 inches (9.4 mm) 0.330 inches (8.4 mm) LM 10 0.055 inches (1.4 mm) 0.016 inches (0.4 mm)

  • Page 23: Load Chain

    LM01 I&M MANUAL/EN/11.30.2010 Load Chain 5.4.1 General CAUTION: A hoist SHALL NEVER be used if the load chain shows any evidence of mechanical damage or excessive wear. Never use the load chain as a sling. Use only original equipment chain as supplied by a factory authorized source. Improper load chain storage or installation can render the load chain unusable prior to the first lift.
  • Page 24 LM01 I&M MANUAL/EN/11.30.2010 Measure the following chain dimensions at several points on chain: (Figure 6) Dimensions of one link ( d x t ) where, d = diameter and t = pitch Length over 11 links ( 11 t ) Replace load chain if any one of these dimensions exceeds maximum allowed wear.

  • Page 25: Load Chain Specifications (See Figure 6)

    LM01 I&M MANUAL/EN/11.30.2010 5.4.3 Load Chain Specifications (see Figure 6) Chain use: Load chain Chain type: Standard - Galvanized Size: (d) diameter x (t) pitch: 0.122” [3.1 mm] / 0.366” [9.3 mm] Class: Grade: H8S or HE G80 RAS Maximum working stress: 14,516.1 lbs / in [100 N / mm Hardened surface:...

  • Page 26: Installing The Load Chain

    LM01 I&M MANUAL/EN/11.30.2010 5.4.5 Installing the Load Chain Figure 7. Chain Installation Figure 7-A. Chain Orientation 1-FALL CHAIN INSTALLATION 1. Attach last link of chain onto hook of CHAIN INSERTION TOOL (item 1, Figure 7). 2. If the insertion tool is not in the hoist (removal procedure), insert other end of CHAIN INSERTION TOOL into chain opening closest to chain container side.
  • Page 27 LM01 I&M MANUAL/EN/11.30.2010 2-FALL CHAIN INSTALLATION 1. If the chain insertion tool is not in the hoist (removal procedure), attach last link of chain onto hook of CHAIN INSERTION TOOL (item 1, Figure 7). 2. Insert other end of CHAIN INSERTION TOOL into chain opening closest to chain container. CAUTION: For a 2-Fall load block assembly, make sure the chain weld on chain link faces inward toward chain wheel pocket on hoist and away from idler sprocket of hook block assembly.

  • Page 28: Fall Stop Assembly

    LM01 I&M MANUAL/EN/11.30.2010 Fall Stop Assembly 5.5.1 General The slack fall stop is a safety stop, not a functional stop. The fall stop must be located at least six (6.0) inches [150mm] from end of last chain link. Figure 8. Cross Section of Slack Fall Stop 5.5.2 Fall Stop Installation 1.

  • Page 29: Chain Container

    LM01 I&M MANUAL/EN/11.30.2010 Chain Container Figure 9. Chain Container Installation CAUTION: Chain container must be installed for effective operation of travel limit switch. Removing Chain Container 1. Remove clip (item 3) from end of pin (item 2). 2. Pull pin (item 2) out while supporting chain container (item 1) at same time. 3.

  • Page 30: Limit Switches

    LM01 I&M MANUAL/EN/11.30.2010 Limit Switches 5.7.1 Upper and Lower Travel Safety Limit Switch The Upper and Lower Travel Limit Switch is an automatic reset type switch and connected to the control circuit. The switch housing is recessed into the underside of hoist body. The upper and lower limit switches are emergency protection devices and are not to be used as a continuous stop.

  • Page 31: Upper And Lower Rotary Travel Limit Switch (Optional Only On 3-Phase Units)

    LM01 I&M MANUAL/EN/11.30.2010 5.7.2 Upper and Lower Rotary Travel Limit Switch (Optional Only on 3-Phase units) The rotary limit switch is adjustable and provides over-travel protection for the upper and lower limits of hoist travel. The limit switch is connected to the control circuit. Note: Not available on Single Phase –...

  • Page 32: Hooks

    LM01 I&M MANUAL/EN/11.30.2010 Hooks 5.8.1 General Check hooks for deformation or cracks. Hooks must be replaced if throat opening has increased by more than 15%, or if throat opening has more than 10-degree twist from plane of straight hook. Figure 10. Measuring Hook Deformation Due to many types and sizes of hooks that can be furnished and/or specified by the user / owner, it is recommended that user / owner measure the actual throat opening of hook as originally furnished.

  • Page 33: Inspection

    LM01 I&M MANUAL/EN/11.30.2010 5.8.2 Inspection Inspection for wear on top hook and load hook SHALL be checked routinely. Measure the throat opening. (dimension-a2). If throat opening exceeds maximum opening allowed, replace hook. Damaged safety latches SHALL be replaced immediately. Maximum throat opening allowed: Hook Class: 012P load hook top hook...

  • Page 34: Top Hook

    LM01 I&M MANUAL/EN/11.30.2010 5.8.4 Top Hook Figure 12. Top Hook Orientation CHAIN CONTAINER BRACKET CAUTION: Before removing Top Hook, de-energize the power to the hoist per ANSI Z244.1 and make certain that any load is removed from the load hook. Also support the total weight of the hoist, including chain, prior to removing the Top Hook.

  • Page 35: Controls

    LM01 I&M MANUAL/EN/11.30.2010 Controls 5.9.1 General Three-phase, two-speed hoists are available for most three-phase power supply voltages. The controls of two-speed hoists cannot be connected to more than one power supply voltage. The control panel layouts and wiring diagrams found in this manual are for standard hoist controls. The hoist motor brake rectifier is part of the PC (printed circuit) board assembly.

  • Page 36: Control Panel Layout - Three Phase - Two Speed

    LM01 I&M MANUAL/EN/11.30.2010 5.10 Control Panel Layout – Three Phase – Two Speed Figure 13. Control Panel Components and Layout – Three Phase – Two Speed 36/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC.

  • Page 37: Control Panel Layout - Single Phase - Single Speed - 115 Volt

    LM01 I&M MANUAL/EN/11.30.2010 5.11 Control Panel Layout – Single Phase – Single Speed – 115 Volt Figure 14. Control Panel Components and Layout – Single Phase – Single Speed 1. Power Supply Gland (Plug Connection Optional) 2. Pushbutton plug connection 3.

  • Page 38: Wiring Diagrams

    LM01 I&M MANUAL/EN/11.30.2010 5.12 Wiring Diagrams 5.12.1 Wiring Diagram – Three Phase – Two-speed Hoist 3 PHASE POWER SUPPLY CONNECTIONS PLUG X23 – P/ B CONTROL HOIST SUPPLY – PHASE A 1 - CONTROL VOLTAGE SUPPLY HOIST SUPPLY – PHASE B 2 - HOIST UP HOIST SUPPLY –...

  • Page 39: Wiring Diagram - Single Phase - Connections And Components

    LM01 I&M MANUAL/EN/11.30.2010 5.12.2 Wiring Diagram – Single Phase – Connections and Components Connections, Terminals, and Components for Single Phase L1 – SINGLE PHASE POWER SUPPLY L2 – SINGLE PHASE NEUTRAL PE – GROUND – MOTOR BRAKE SUPPLY + – MOTOR BRAKE SUPPLY U1V1 –...

  • Page 40: Wiring Diagram - Single Phase - Power Circuit

    LM01 I&M MANUAL/EN/11.30.2010 5.12.3 Wiring Diagram – Single Phase – Power Circuit 40/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...

  • Page 41: Wiring Diagram - Single Phase - Control Circuit

    LM01 I&M MANUAL/EN/11.30.2010 5.12.4 Wiring Diagram – Single Phase – Control Circuit 41/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...

  • Page 42: Wiring Diagram - 3 Button - Push Button

    LM01 I&M MANUAL/EN/11.30.2010 5.12.5 Wiring Diagram – 3 Button – Push Button 42/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...

  • Page 43: Wiring Diagram - 5 Button - Push Button

    LM01 I&M MANUAL/EN/11.30.2010 5.12.6 Wiring Diagram – 5 Button – Push Button 43/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...

  • Page 44: Wiring Diagram - 7 Button - Push Button

    LM01 I&M MANUAL/EN/11.30.2010 5.12.7 Wiring Diagram – 7 Button – Push Button 44/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...

  • Page 45: Preventative Maintenance

    LM01 I&M MANUAL/EN/11.30.2010 PREVENTATIVE MAINTENANCE Maintenance and Inspection Table Table 6. Maintenance and Inspection Schedule INSPECTION CHECK INTERVAL QUALIFIED PERSON BRAKE OPERATION FOR HOLDING AND RELEASING DAILY OPERATOR LOAD CHAIN FOR DAMAGE DAILY OPERATOR SUSPENSION SUPPORT OF P/B ASSEMBLY DAILY OPERATOR CLEANLINESS &...

  • Page 46: Lubrication

    LM01 I&M MANUAL/EN/11.30.2010 Lubrication OPEN WHEEL GEARING: MOBILUX EP1 OR EQUIVALENT Table 7. Lubrication Specifications LUBRICATION POINT / QTY SPECIFICATIONS POSSIBLE BRANDS AS REQUIRED Oil or liquid grease Chain lubricant (Ceplattyn or similar) EP-90 AS REQUIRED GREASE (without MoS2) BP Energrease LS - EP 2 KP 2 (DIN 51 502) ESSO Unirex N2 Soap-based lithium...

  • Page 47: Recommended Technical Support For Various Spare Parts

    LM01 I&M MANUAL/EN/11.30.2010 Recommended Technical Support for Various Spare Parts Table 8. Recommended Technical Support for Various Spare Parts SPARE PART REPLACED BY Upper chain guide Qualified Electrician & Mechanic Output shaft Qualified Electrician & Mechanic PG cable gland Qualified Electrician Gear shaft + nuts Qualified Mechanic Motor end cap...

  • Page 48: Troubleshooting

    LM01 I&M MANUAL/EN/11.30.2010 Troubleshooting Table 10. Troubleshooting PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Emergency stop button is Hoist does not lift or lower load Deactivate button activated Blown fuse Replace the fuse Motor thermal protection Allow motor to cool down activated Pendant plug pin pushed out Reinstall plug pin Contactor terminal screws loose...
  • Page 49 LM01 I&M MANUAL/EN/11.30.2010 THIS PAGE INTENTIONALLY LEFT BLANK 49/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...

  • Page 50: Parts Illustration

    LM01 I&M MANUAL/EN/11.30.2010 PARTS ILLUSTRATION Hoist Body 50/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...
  • Page 51 LM01 I&M MANUAL/EN/11.30.2010 Table 11. Hoist Body Parts List ITEM PART NUMBER DESCRIPTION 52292290 TWO SPEED BODY & CONTROLS: 208/230V – 3 PHASE 52292289 TWO SPEED BODY & CONTROLS: 460V – 3 PHASE 52292291 TWO SPEED BODY & CONTROLS: 575V – 3 PHASE 52315417 SINGLE SPEED BODY &...

  • Page 52: Helical Gear Mechanism & Brake

    LM01 I&M MANUAL/EN/11.30.2010 Helical Gear Mechanism & Brake 52/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...
  • Page 53 LM01 I&M MANUAL/EN/11.30.2010 Table 12. Helical Gear Mechanism and Brake Parts List ITEM PART NUMBER DESCRIPTION 2218040 ROTOR ASSEMBLY – 3 PHASE POWER SUPPLY 52315094 ROTOR ASSEMBLY – 1 PHASE POWER SUPPLY 2218041 CHAIN SPROCKET ASSEMBLY 2218042 FRICTION DISC ASSEMBLY FOR SLIP CLUTCH 52253656 SLIP CLUTCH FRICTION DISC 2218043...

  • Page 54: Lifting Assembly

    LM01 I&M MANUAL/EN/11.30.2010 Lifting Assembly 54/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...
  • Page 55 LM01 I&M MANUAL/EN/11.30.2010 Table 13. Lifting Assembly Parts List ITEM PART NUMBER DESCRIPTION 2218045 1-FALL LOAD BLOCK ASSEMBLY 001512 1-FALL SAFETY LATCH – WIRE TYPE 2212016 1-FALL SAFETY LATCH – STEEL PLATE 2218046 1-FALL LOAD HOOK 2218047 1-FALL LOAD BLOCK HALVES, PIN AND HARDWARE 2213454001 1-FALL LOAD BLOCK CAPACITY STICKER –...

  • Page 56: Control Panel Assembly - 3 Phase Power Supply

    LM01 I&M MANUAL/EN/11.30.2010 Control Panel Assembly – 3 Phase Power Supply Table 14. Control Panel Assembly (3-Phase Power Supply) Parts List ITEM PART NUMBER DESCRIPTION 2218078 CONTROL BOX COVER SET 2218095 PC BOARD 208/230VAC – TWO SPEED ( 115V CONTROL VOLTAGE ) 2218094 PC BOARD 460VAC –...

  • Page 57: Control Panel Assembly - 115 Volt 1-Phase Power Supply

    LM01 I&M MANUAL/EN/11.30.2010 Control Panel Assembly – 115 Volt 1-Phase Power Supply Table 15. Control Panel Assembly (115v 1-Phase Power Supply) Parts List PART ITEM DESCRIPTION NUMBER 52314680 CONTROLS & ENCLOSURE ASSEMBLY – 1+2+3+4 2218078 ELECTRICAL ENCLOSURE SET – BASE AND COVER 52315603 CONTACTORS K21 or K22 –...

  • Page 58: Gear Limit Switch (Option)

    LM01 I&M MANUAL/EN/11.30.2010 Gear Limit Switch (OPTION) Table 16. Gear Limit Switch (Option) Parts List PART ITEM DESCRIPTION NUMBER 52265594 COMPLETE SET OF GEAR LIMIT SWITCHES 52265595 SPECIAL GEAR LIMIT SWITCH FLANGE 52265597 LOCATION BEARING 52265596 LIMIT SWITCH AXLE 52265598 FIXING PLATE 52293717 PINION...

  • Page 59: Push Button Assembly - Horizontal Pairs Of Buttons

    LM01 I&M MANUAL/EN/11.30.2010 Push Button Assembly – Horizontal Pairs of Buttons Table 17. Push Button Assembly (Horizontal Pairs of Buttons) Parts List ITEM PART NUMBER DESCRIPTION 2309765010 P/B ASSEMBLY 10 FT, E-STOP, TWO SPEED HOIST 2309765015 P/B ASSEMBLY 15 FT, E-STOP, TWO SPEED HOIST 2309765020 P/B ASSEMBLY 20 FT, E-STOP, TWO SPEED HOIST 2309767010...

  • Page 60: Push Button Assembly - Horizontal Pairs Of Buttons

    LM01 I&M MANUAL/EN/11.30.2010 Push Button Assembly – Horizontal Pairs of Buttons Table 18. Push Button Assembly – Horizontal Pairs of Buttons Parts List PART ITEM DESCRIPTION NUMBER 52301832 PISTOL GRIP P/B CONTROL ASSEMBLY – TWO SPEED 2213466004 P/B CONTROL ASSEMBLY – TWO SPEED – 5 BUTTON 2213466005 P/B CONTROL ASSEMBLY –...
  • Page 61 LM01 I&M MANUAL/EN/11.30.2010 THIS PAGE INTENTIONALLY LEFT BLANK 61/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...

  • Page 62: Push Button Assembly - Vertical Pairs Of Buttons (Option)

    LM01 I&M MANUAL/EN/11.30.2010 Push Button Assembly – Vertical Pairs of Buttons (Option) 62/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...
  • Page 63 LM01 I&M MANUAL/EN/11.30.2010 Table 19. Push Button Assembly – Vertical Pairs of Buttons (Option) Parts List PART ITEM DESCRIPTION NUMBER 2309673010 E-STOP, SINGLE SPEED HOIST – 10 FT P/B ASSEMBLY E-STOP, SINGLE SPEED HOIST – 15 FT P/B ASSEMBLY 2309673015 E-STOP, SINGLE SPEED HOIST –...

  • Page 64: Push Button Assembly - Vertical Buttons (Option)

    LM01 I&M MANUAL/EN/11.30.2010 7.10 Push Button Assembly – Vertical Buttons (Option) Table 20. Push Button Assembly - Vertical Buttons (Option) Parts List PART ITEM DESCRIPTION NUMBER 2212932011 3 BUTTON P/B TELEMECANIQUE – S*, 1H 2212932012 3 BUTTON P/B TELEMECANIQUE – S*, 2H 2212932032 5 BUTTON P/B TELEMECANIQUE –...
  • Page 65 LM01 I&M MANUAL/EN/11.30.2010 THIS PAGE INTENTIONALLY LEFT BLANK 65/65 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise emplo yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC. Copyright ©...
