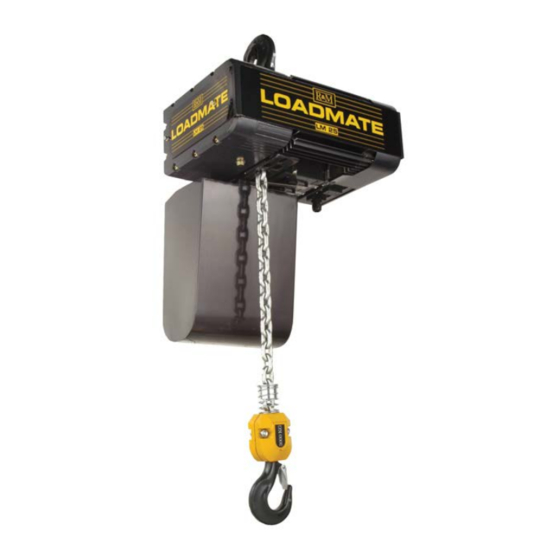

Electric chain hoist
Hide thumbs Also See for LOADMATE LM01:
Table of Contents

Advertisement

Quick Links

Download this manual

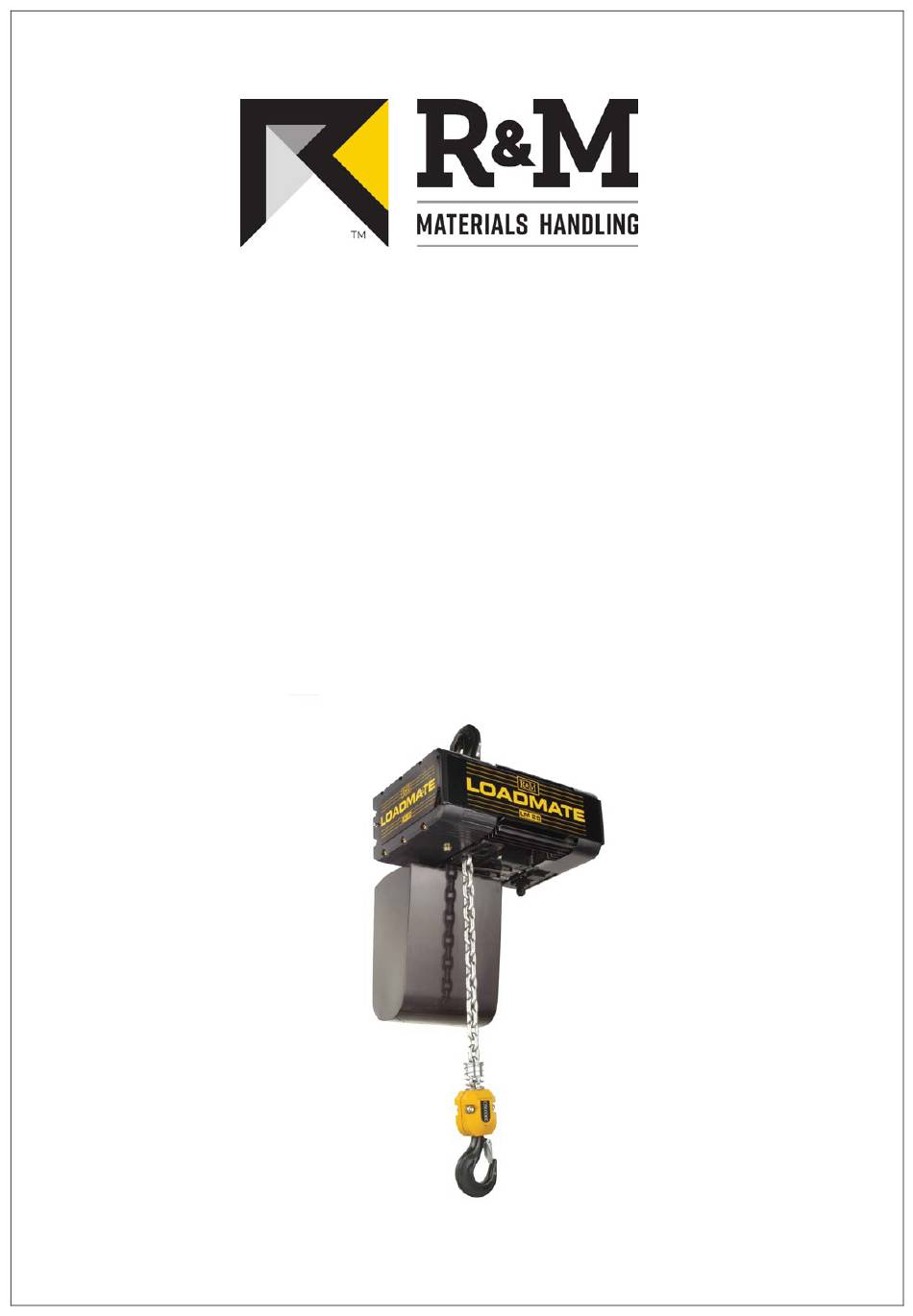

OPERATOR'S MANUAL
ELECTRIC CHAIN HOIST
LOADMATE
English
STD-R-KHA-F-CQD-ENG
This document and the information contained herein, is the exclusive property of R&M Materials Handling, Inc., and represents a non-public, confidential and proprietary trade secret that
may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of R&M Materials Handling, Inc.
Copyright © (2010) R&M Materials Handling, Inc. All rights reserved.
®
LM1-LM05-LM10-LM16/20/25

Advertisement

Table of Contents
loading

Related Manuals for R&M LOADMATE LM01

Summary of Contents for R&M LOADMATE LM01

  • Page 1 OPERATOR’S MANUAL ELECTRIC CHAIN HOIST ® LOADMATE LM1-LM05-LM10-LM16/20/25 English STD-R-KHA-F-CQD-ENG This document and the information contained herein, is the exclusive property of R&M Materials Handling, Inc., and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of R&M Materials Handling, Inc. Copyright ©...
  • Page 2 Electric Chain Hoist Operator’s Manual/EN/11.30.10 THIS PAGE INTENTIONALLY LEFT BLANK 1/41 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC.

  • Page 3: Table Of Contents

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 CAUTION: Read the instructions supplied with the product before installation and commissioning. CAUTION: Keep the instructions in a safe place for future reference. Table of contents INTRODUCTION ............................3 Contact Information ........................... 3 Disclaimer of Warranty..........................3 Disclaimer of Liability ..........................

  • Page 4: Introduction

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 INTRODUCTION Contact Information R&M MATERIALS HANDLING, INC. 4501 Gateway Boulevard Springfield, OH 45502 General Telephone: 937 - 328-5100 Toll Free Telephone (US): 800 - 955-9967 General Fax: 937 - 325-5319 Parts Department Fax (US): 800 - 955-5162 Parts Dept.

  • Page 5: Indemnity

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Indemnity By referring to, or otherwise employing this manual the user agrees to defend, protect, indemnify, and hold R&M Materials Handling, Inc., its successors, assigns, officers, agents, employees and member harmless of, from and against all claims, losses, expenses, damages and liabilities, direct, incidental or consequential, arising from use of this manual including loss or profits and reasonable counsel fees, which may arise out of the use or alleged use of such manual, it being the intent of this provision and of the user to absolve and protect R&M...

  • Page 6: Scope And Purpose

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 SCOPE AND PURPOSE Scope This Manual has been prepared by R&M Materials Handling, Inc. to provide recommendations for safe LoadMate ® Series Electric Chain Hoists operation of with warnings against specific hazards so as to avoid personal injury and/or damage to property.

  • Page 7: Safety

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 SAFETY Training Requirements LoadMate ® Series Electric Chain Hoist operator, inspector, and maintenance personnel training programs should be based on requirements in accordance with the latest edition of: ASME B30.16 Safety Standard for Overhead Hoists ( Underhung ) Such training programs should also provide information for compliance with any Federal, State, or Local Code LoadMate ®...

  • Page 8: Introduction To Safety

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Introduction to Safety Read and understand this manual before using the hoist. Important issues to remember during installation, operation, maintenance, and inspection are provided at the hoist control stations, at various locations on the hoist, in this manual, and in the LoadMate®...

  • Page 9: Owner / User / Operator Responsibilities

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Owner / User / Operator Responsibilities READ and OBEY all DANGER, WARNING, CAUTION, and OPERATION INSTRUCTIONS on the hoist and in this manual. Make sure that all placards are in place and legible. Failure to comply with safety precautions in this manual and on the hoist is a safety violation that may result in product failure, serious injury, death, or property damage.
  • Page 10 Electric Chain Hoist Operator’s Manual/EN/11.30.10 WARNING: Before installing, removing, inspecting or performing any maintenance on a hoist the main switch shall be de-energized. Lock and tag the main switch in the de- energized position in accordance with ANSI Z244.1. Follow other maintenance procedures outlined in the Installation and Maintenance Manual furnished by R&M Materials Handling, Inc., and ASME B30.16.

  • Page 11: Recommended Operator Qualifications

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Recommended Operator Qualifications HOIST OPERATORS SHALL: Be required to read this manual (Electric Chain Hoist Operator’s Manual). Be required to read the warnings in Installation and Maintenance Manual supplied with hoist. Be required to read the instructions and warning labels on the hoist. Be required to read the operating section of ASME B30.16.

  • Page 12: Electric Chain Hoist Construction

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 ELECTRIC CHAIN HOIST CONSTRUCTION General Hoist Construction Overhead hoists are defined in the ANSI / ASME standards as a machinery unit that is used for vertical lifting service involving material handling of freely suspended (unguided) loads. Overhead hoists are a basic and versatile piece of equipment used in manufacturing, warehousing, construction, and numerous other applications to aid workers in the handling and moving of loads.

  • Page 13: Suspension Types

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Electric Power The hoisting motion (lifting or lowering) of an electric powered hoist is initiated when the operator grasps and activates a control device. The control device has push buttons that energize, through a series of contractors and other electrical components, an electric motor.
  • Page 14 Electric Chain Hoist Operator’s Manual/EN/11.30.10 Trolley Mounted Trolley mounted hoists are hook mounted or lug mounted hoists suspended from a trolley; or a hoist having an integral trolley as part of the hoist frame, that allows travel motion on the lower flange of a monorail beam, or the lower flange of the bridge beam of an overhead crane.

  • Page 15: Directional Travel Of Overhead Hoists

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Directional Travel of Overhead Hoists Hoist motion is the vertical travel motion direction of the hoist load hook. The hoist operator should be familiar with the hoist (or crane) controls and understand what type of motion will occur when any one of the control devices is activated.
  • Page 16 Electric Chain Hoist Operator’s Manual/EN/11.30.10 All motions of multi-speed powered hoists should be started in the slowest speed available for that motion, and then the speed should be increased until the desired speed is obtained. At the beginning of hoisting motion, the load should be lifted only a few inches and stopped to check the holding brake before continuing with the lift.

  • Page 17: Principal Parts Of An Electric Chain Hoist

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Principal Parts of an Electric Chain Hoist Hoist operators should be familiar with the parts of a hoist and have a thorough knowledge of hoist control device functions. Figure 1. Parts of an Electric Chain Hoist 1 - LOAD BLOCK ASSEMBLY (2-FALL SHOWN) 2 - LOAD CHAIN 3 - ELECTRICAL CONTROL ENCLOSURE...
  • Page 18 Electric Chain Hoist Operator’s Manual/EN/11.30.10 Trolley Assemblies Figure 2. Plain (Push) Trolley CRANE BEAM OR MONORAIL PLAIN TROLLEY ASSEMBLY BASIC ELECTRIC CHAIN HOIST Figure 3. Hand Geared Trolley CRANE BEAM OR MONORAIL HAND GEARED TROLLEY ASSEMBLY HAND CHAIN DRIVE WHEEL BASIC ELECTRIC CHAIN HOIST 17/41 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC.
  • Page 19 Electric Chain Hoist Operator’s Manual/EN/11.30.10 Figure 4. Motorized Trolley Assembly CRANE BEAM OR MONORAIL MOTORIZED TROLLEY ASSEMBLY TROLLEY DRIVE MOTOR BASIC ELECTRIC CHAIN HOIST 18/41 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC.
  • Page 20 Electric Chain Hoist Operator’s Manual/EN/11.30.10 Figure 5. Push Button Control Assembly - Complete 1 – P/B CONTROL ENCLOSURE 2 – UPPER SUSPENSION KIT 3 – P/B CABLE PLUG ASSEMBLY 4 – SUSPENSION UNIT 5 – P/B ELECTRICAL CABLE 6 – OPERATOR’S WARNING TAG 7 –...
  • Page 21 Electric Chain Hoist Operator’s Manual/EN/11.30.10 The following pushbutton controllers are examples of several variations that may be encountered with the LoadMate ® Series Electric Chain Hoist. The operator must become familiar with the location and function of each button. Any hoist operator who is not familiar with a given installation SHALL operate the controller (WITH NO LOAD ATTACHED) to become familiar with the response of pressing each button and the relative movement of the load block within the surroundings of the hoist installation.
  • Page 22 Electric Chain Hoist Operator’s Manual/EN/11.30.10 Figure 6. Pushbutton Controller – Vertical Pairs (Multiple) WARNING: EMERGENCY STOP BUTTON (RED) PRESS TO STOP ALL ELECTRICALLY CONTROLLED MOTIONS BLANK – NOT IN USE HOISTING MOTION “UP” & “DOWN” TROLLEY MOTION (OPTIONAL) “LEFT” & “RIGHT” BRIDGE MOTION (OPTIONAL) “FORWARD”...
  • Page 23 Electric Chain Hoist Operator’s Manual/EN/11.30.10 Figure 8. Pushbutton Controller – “Digichain” WARNING: EMERGENCY STOP BUTTON (RED) PRESS TO STOP ALL ELECTRICALLY CONTROLLED MOTIONS HOISTING “UP” BUTTON HOISTING “DOWN” BUTTON Figure 9. Pushbutton Controller – Horizontal Pairs (Multiple) BLANK – NOT IN USE WARNING: EMERGENCY STOP BUTTON (RED) PRESS TO STOP ALL ELECTRICALLY...
  • Page 24 Electric Chain Hoist Operator’s Manual/EN/11.30.10 Figure 10. Pushbutton Label Symbols Columns A, B, C, and D represent sets of symbols. In order to meet local requirements, the purchaser specifies a particular set of symbols. Rows 1, 2, and 3 represent the pairs of buttons for a particular button. For example, row 1 represents the pair of buttons for the hoisting motion, row 2 represents the pair of buttons for the trolley motion (optional), and row 3 represents the pair of buttons for the bridge motion (optional).

  • Page 25: Safe Operating Practices

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 SAFE OPERATING PRACTICES The operation of an electric chain hoist can be categorized by the various sequential parts of a particular cycle of use. The typical sub-sections are: BEFORE EACH SHIFT or THE FIRST TIME THE HOIST IS USED EACH SHIFT BEFORE OPERATING A HOIST AND APPLYING A LOAD MOVING THE LOAD PARKING THE LOAD...
  • Page 26 Electric Chain Hoist Operator’s Manual/EN/11.30.10 Daily inspection items that should be performed by the operator at the start of each shift, or at the time the hoist is first used during the shift, include the below items: ITEM INSPECTION CHECK POINTS Tagged Hoist Check that hoist is not tagged with an out-of-order sign.
  • Page 27 Electric Chain Hoist Operator’s Manual/EN/11.30.10 SHALL visually inspect hook latches for proper operation or damage that does not allow roper • operation. SHALL test operation of the primary upper limit device of the hoisting motion. • SHALL report to supervisor if warning label or labels are missing or illegible. •...

  • Page 28: Before Operating A Hoist And Applying A Load

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Before Operating A Hoist and Applying a Load Bring the hoist directly over the load. Lower the load hook so it can be attached directly to the load, the slings, or any other device used to rig the load.
  • Page 29 Electric Chain Hoist Operator’s Manual/EN/11.30.10 SHALL report to the supervisor any damage or malfunctions. SHALL NOT operate hoist if it is tagged with an out-of-order sign. SHALL center hoist over load. SHALL NOT operate a hook mounted hoist when the hoist is restricted from forming a straight line from top hook to load hook in the direction of loading.

  • Page 30: Moving The Load

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Moving the Load WARNING: DO NOT LIFT PERSONNEL. DO NOT LIFT LOADS OVER PEOPLE. NOTE: Hoists are intended only for vertical lifting service of freely suspended, unguided loads. Do not use a hoist to lift loads that are not lifted vertically, loads that are not freely suspended, or loads that are guided.

  • Page 31: Parking The Load

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 SHALL avoid unnecessary inching and quick reversals of direction. SHALL only lift the load a few inches to verify that the load is properly balanced before continuing with the lift. SHALL only lift the load a few inches to verify that the hoist braking system is functioning properly before continuing with the lift.

  • Page 32: Hoist Limit Devices

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Hoist Limit Devices Powered hoists must be equipped with an upper limit device that will prevent the hoist load block from exceeding the upper limit of travel. Depending on the shape or size of the load being lifted, it may be impossible for some part of the load to come into contact with some part of the hoist, trolley, crane, or building structure before the load block reaches the upper limit of travel.

  • Page 33: Recommended General Do Not's

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Recommended General Do Not’s It is Recommended that the Operator: DO NOT operate a hoist that is damaged or has any actual or suspected mechanical or electrical malfunction. DO NOT attempt to lengthen load chain or repair damaged load chain. DO NOT use the load chain, any part of the hoist, or the load block and hook as a ground for •...

  • Page 34: Operator Hand Signals

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 Operator Hand Signals Hoist operators are normally involved in rigging the load, attaching the load to the hoist load hook, and other tasks related to the load for which they have skills in addition to those required for operation of the hoist. Therefore, in addition to the specific information required to operate the hoist, hoist operators should be familiar with rigging procedures and practices.

  • Page 35: Appendix - A - Definitions Of Electric Chain Hoist Terms

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 APPENDIX – A – DEFINITIONS OF ELECTRIC CHAIN HOIST TERMS below-the-hook lifting devices – Devices that are not normally reeved onto the hoist chain, such as hook-on buckets, magnets, grabs, and other supplemental devices used for ease of handling certain types of loads.
  • Page 36 Electric Chain Hoist Operator’s Manual/EN/11.30.10 load, rated – The maximum load for which a hoist is designated by the manufacturer or a qualified person. load block – The assembly of hook or shackle, swivel, bearing, sheaves, sprockets, pins, and frame suspended by the hoisting load chain.
  • Page 37 Electric Chain Hoist Operator’s Manual/EN/11.30.10 sprocket, load – A hoist component that transmits motion to the load chain. This component is sometimes load wheel, load sheave, pocket wheel, chain wheel called switch – A device for making, breaking, or changing the connections in an electric or pneumatic circuit (valve). trolley –...

  • Page 38: Appendix - B - References

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 APPENDIX – B – REFERENCES NOTE: The current edition date of a listed document or standard, in effect at the time of publication of this manual, is shown. It is recommended that the reader refer to the latest edition. HMI Hoist Operator’s Manual HMI Recommended Practices –...
  • Page 39 Electric Chain Hoist Operator’s Manual/EN/11.30.10 CMAA Specification No. 70, Revised 1999 Specification for Top Running Bridge and Gantry Type Multiple Girder Electric Overhead Traveling Cranes CMAA Specification No. 74, Revised 1999 Specifications for Top Running & Under Running Single Girder Electric Overhead Traveling Cranes Utilizing Under Running Trolley Hoist CMAA Crane Operators Manual Publisher:...

  • Page 40: Appendix - C - Recommended Practices - Electric Powered Hoists

    Electric Chain Hoist Operator’s Manual/EN/11.30.10 APPENDIX – C – RECOMMENDED PRACTICES – ELECTRIC POWERED HOISTS RECOMMENDED PRACTICES - ELECTRIC POWERED HOISTS Because R&M Materials Handling, Inc. has no direct control over the hoist and its operation, conformance with good safety practice is the responsibility of the user and operating personnel. ANSI/ASME B30.16 has been used as a guide in preparing this list of SHALLs and SHALL NOTs.
  • Page 41 Electric Chain Hoist Operator’s Manual/EN/11.30.10 DISCLAIMER CAUTION: Improper operation of a hoist can create a Under no circumstances does R&M Materials potentially hazardous situation, which, if not Handling, Inc. assume any liability for the use of avoided, could result in minor or moderate these voluntary recommendations, and no injury.
  • Page 42 Electric Chain Hoist Operator’s Manual/EN/11.30.10 THIS PAGE INTENTIONALLY LEFT BLANK 41/41 This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC.
