5G Module Series
RMU500-EK User Guide
3.2. M.2 Interface
The M.2 connector is designed to accommodate the module. The following figure shows the connection
between RM500Q module and EVB.

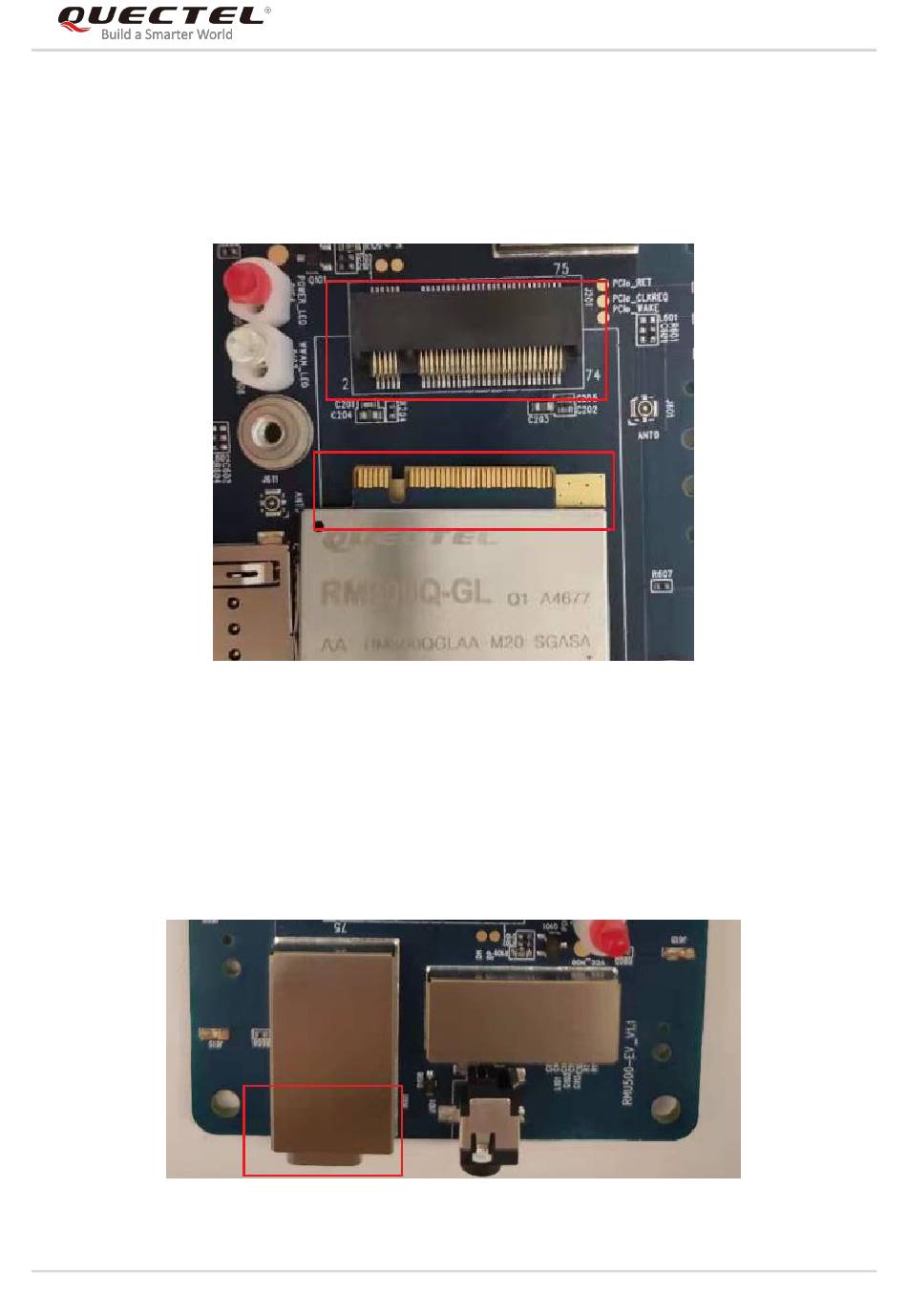

Figure 4: Connection Between RM500Q Module and EVB
3.3. USB Interface
The EVB provides a Type-C USB connector J301 for connection with a host.
Figure 5: USB Connector
RMU500-EK_User_Guide
13 / 26
