3
EVB Components Application
This chapter mainly describes the following EVB components application:
Power supply
USB interface
M.2 interface
(U)SIM interface
RF cables & antennas
It also provides information about status indication LEDs to help customers use the EVB.
3.1. Power Supply
The EVB can be powered by an external power adapter through connecting with the power jack (J101) on
the EVB. The EVB can be also powered by the USB interface through connecting with the power jack
(J301) on the EVB.
The following two figures show the power supply interfaces of the EVB.
RMU500-EK_User_Guide

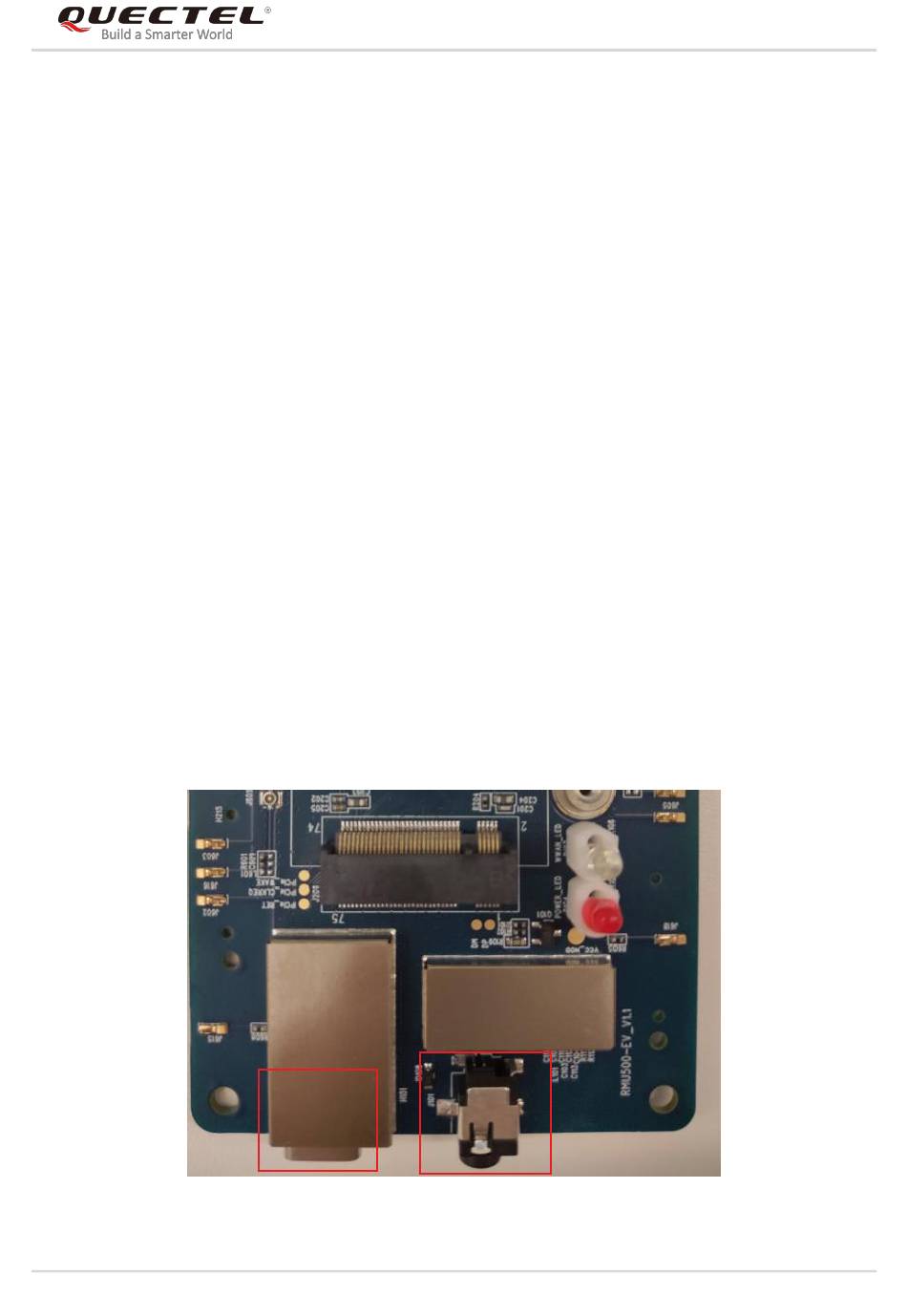

Figure 3: EVB Power Supply Interfaces
5G Module Series
RMU500-EK User Guide
12 / 26
