Auto Stop Function; M-Set Switch - Icom IC-R7000 Instruction Manual

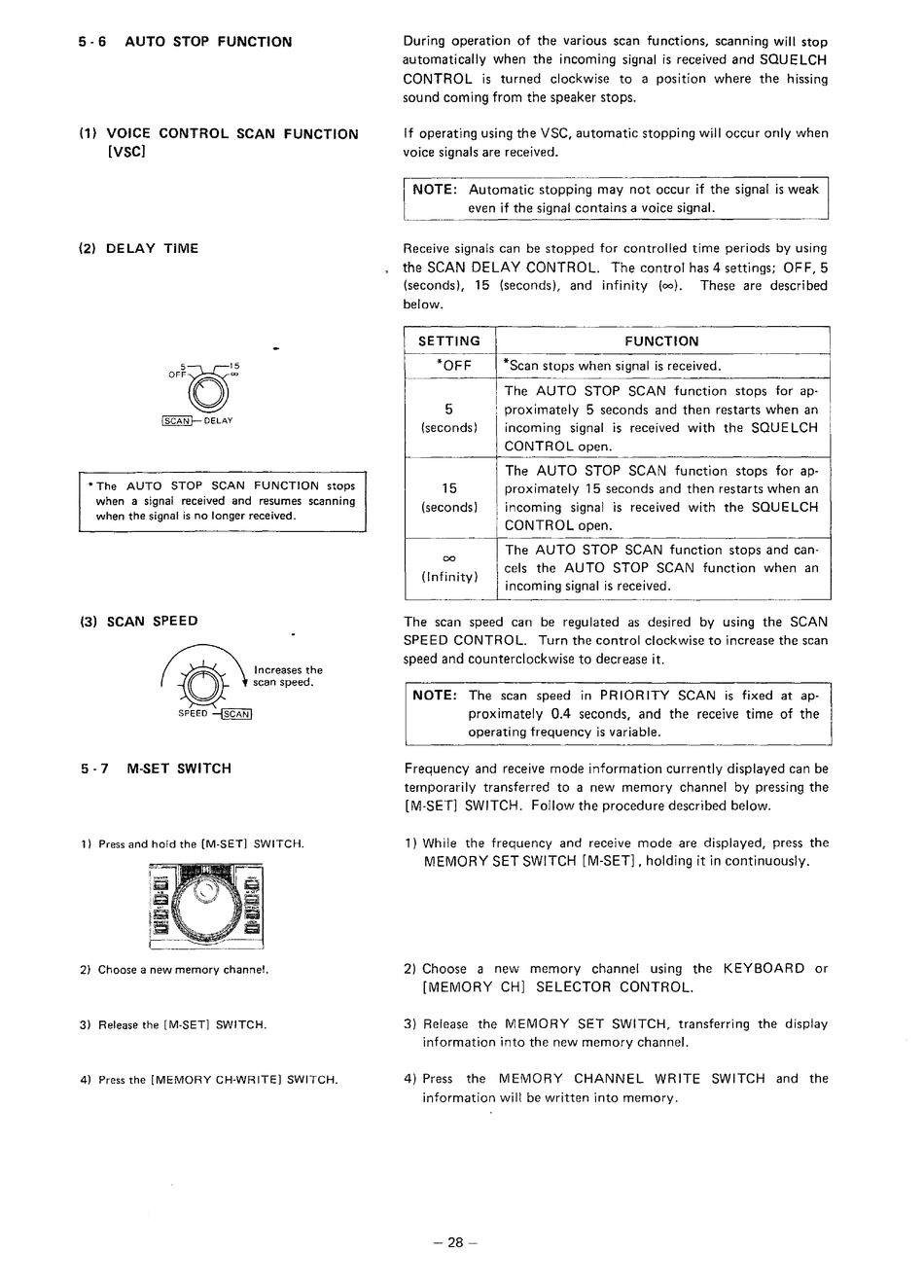

5 - 6 AUTO STOP FUNCTION
(1)
VOICE CONTROL SCAN FUNCTION
[VSC]
(2) DELAY TiME
*The AUTO STOP SCAN FUNCTION stops
when a signal received and resumes scanning
when the signal is no longer received.
(3) SCAN SPEED
~fi
Increases the
( 0 \
scan speed.
SPEED -!SCAN
I
5 - 7 M-SET SWITCH
1) Press and hold the [M-SET] SWITCH.
2) Choose a new memory channel.
3) Release the [M-SET] SWITCH.
4) Press the [MEMORY CH-WRITE] SWITCH.
During operation of the various scan functions, scanning will stop
automatically when the incoming signal is received and SQUELCH
CONTROL is turned clockwise to a position where the hissing
sound coming from the speaker stops.
If operating using the VSC, automatic stopping will occur only when
voice signals are received.
NOTE: Automatic stopping may not occur if the signal is weak
even if the signal contains a voice signal.
Receive signals can be stopped for controlled time periods by using
the SCAN DELAY CONTROL. The control has 4 settings; OFF, 5
(seconds), 15 (seconds), and infinity
(oo).
These are described
below.
SETTING FUNCTION
*OFF
*Scan stops when signal is received.
, The AUTO STOP SCAN function stops for ap-
5 ! proximately 5 seconds and then restarts when an
(seconds) incoming signal is received with the SQUELCH
CONTROL open.
The AUTO STOP SCAN function stops for ap-
15 proximately 15 seconds and then restarts when an
(seconds)
incoming signal is received with the SQUELCH
CONTROL open.
00
The AUTO STOP SCAN function stops and can-
(Infinity)
eels the AUTO STOP SCAN function when an
incoming signal is received.
The scan speed can be regulated as desired by using the SCAN
SPEED CONTROL Turn the control clockwise to increase the scan
speed and counterclockwise to decrease it.
NOTE: The scan speed in PRIORITY SCAN is fixed at ap-
proximately 0.4 seconds, and the receive time of the
operating frequency is variable.
Frequency and receive mode information currently displayed can be
temporarily transferred to a new memory channel by pressing the
[M-SET] SWITCH. Follow the procedure described below.
1) While the frequency and receive mode are displayed, press the
MEMORY SET SWITCH [M-SET], holding it in continuously.
2) Choose a new memory channel using the KEYBOARD or
[MEMORY CH] SELECTOR CONTROL.
3) Release the MEMORY SET SWITCH, transferring the display
information into the new memory channel.
4) Press the MEMORY CHANNEL WRITE SWITCH and the
information will be written into memory.
-28-
