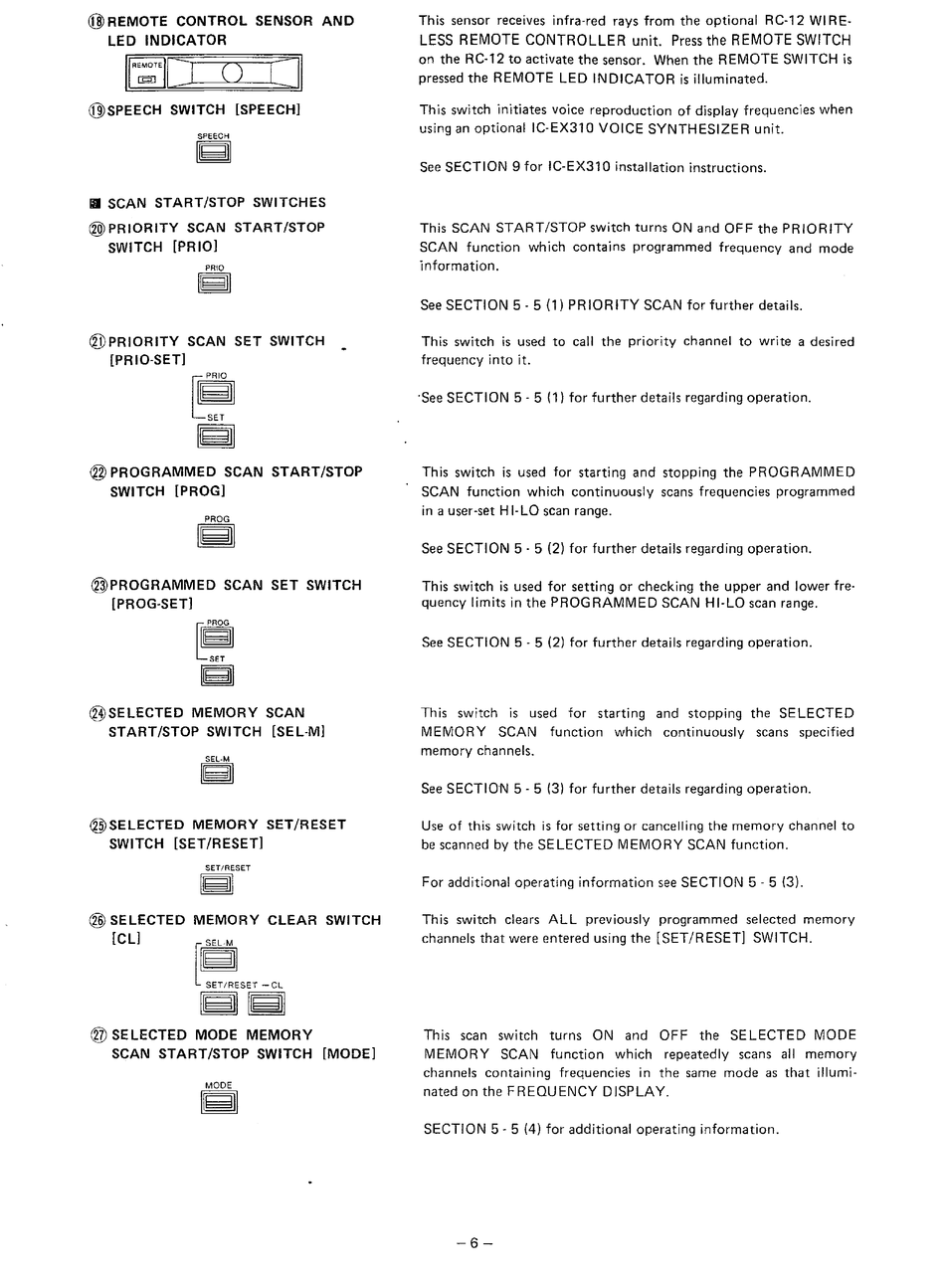

Icom IC-R7000 Instruction Manual page 9

@REMOTE CONTROL SENSOR AND
LED INDICATOR
()
@SPEECH SWITCH [SPEECH]
SPEECH
[(;;)]
ill SCAN START/STOP SWITCHES
@PRIORITY SCAN START/STOP
SWITCH [PRIO]
PAlO
I~
I
@PRIORITY SCAN SET SWITCH
[PRIO-SET]
IEIJ
LsET
1~1
@PROGRAMMED SCAN START/STOP
SWITCH [PROG]
PROG
1~1
@PROGRAMMED SCAN SET SWITCH
[PROG-SET]
l[i~J
LsET
1~11
®SELECTED MEMORY SCAN
START/STOP SWITCH [SEL-M]
SEL-M
~
@SELECTED MEMORY SET/RESET
SWITCH [SET/RESET]
SET/RESET
1~1
@SELECTED MEMORY CLEAR SWITCH
[Cll n
SEL-M
J 1 1 sm~LET
-
CL
1~11~1
@
SELECTED MODE MEMORY
SCAN START/STOP SWITCH [MODE]
MODE
1~1
This sensor receives infra-red rays from the optional RC-12 WIRE-
LESS REMOTE CONTROLLER unit. Press the REMOTE SWITCH
on the RC-12 to activate the sensor. When the REMOTE SWITCH is
pressed the REMOTE LED INDICATOR is illuminated.
This switch initiates voice reproduction of display frequencies when
using an optional IC-EX310 VOICE SYNTHESIZER unit.
See SECTION 9 for IC-EX310 installation instructions.
This SCAN START/STOP switch turns ON and OFF the PRIORITY
SCAN function which contains programmed frequency and mode
information.
See SECTION 5-5 (1) PR lOR ITY SCAN for further details.
This switch is used to call the priority channel to write a desired
frequency into it.
·See SECTION 5- 5 (1) for further details regarding operation.
This switch is used for starting and stopping the PROGRAMMED
SCAN function which continuously scans frequencies programmed
in a user-set H 1- LO scan range.
See SECTION 5- 5 (2) for further details regarding operation.
This switch is used for setting or checking the upper and lower fre-
quency limits in the PROGRAMMED SCAN HI-LO scan range.
See SECTION 5-5 (2) for further details regarding operation.
This switch is used for starting and stopping the SELECTED
MEMORY SCAN function which continuously scans specified
memory channels.
See SECTION 5-5 (3) for further details regarding operation.
Use of this switch is for setting or cancelling the memory channel to
be scanned by the SELECTED MEMORY SCAN function.
For additional operating information see SECTION 5-5 (3).
This switch clears ALL previously programmed selected memory
channels that were entered using the [SET/RESET] SWITCH.
This scan switch turns ON and OFF the SELECTED MODE
MEMORY SCAN function which repeatedly scans all memory
channels containing frequencies in the same mode as that illumi-
nated on the FREQUENCY DISPLAY.
SECTION 5-5 (4) for additional operating information.
-6-
