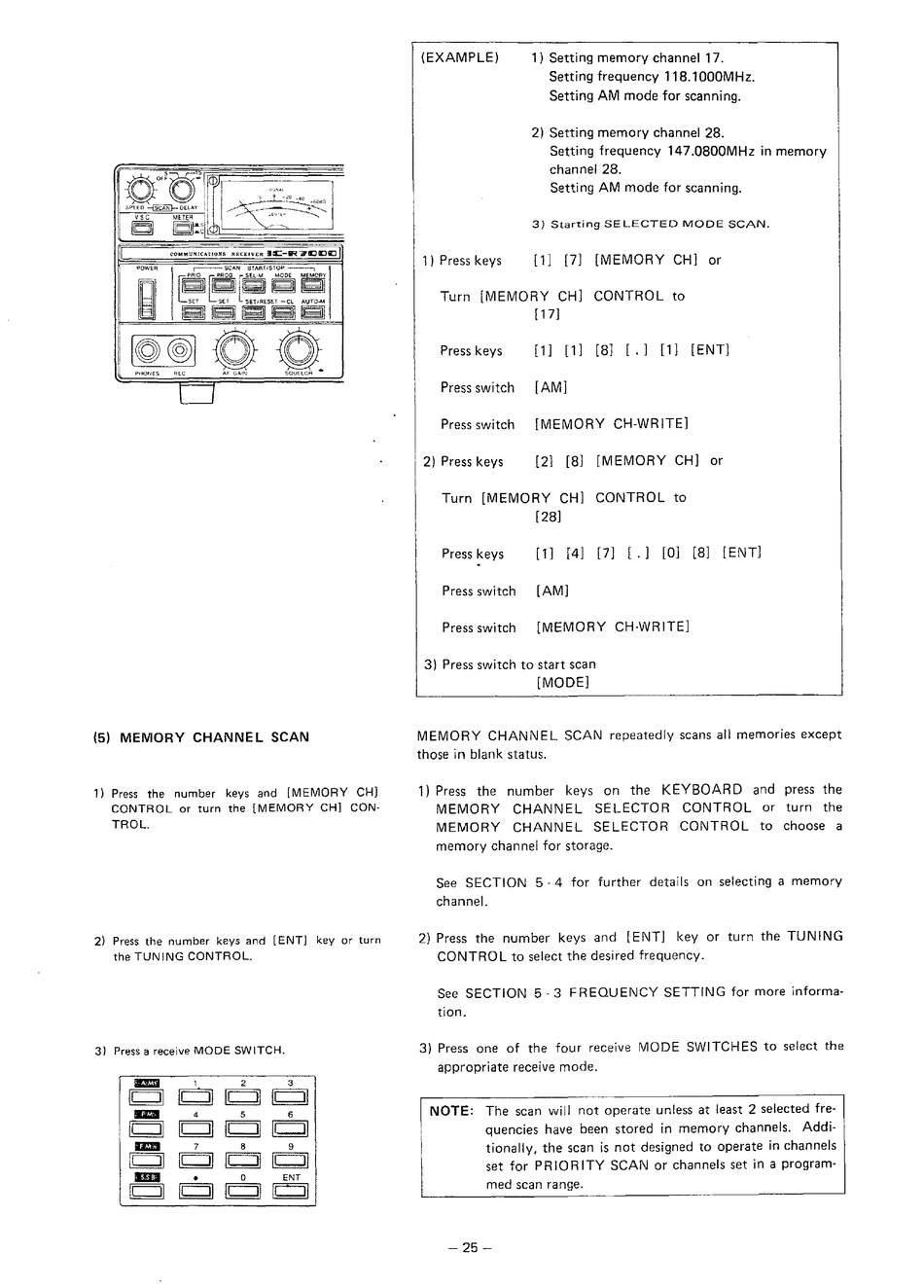

Icom IC-R7000 Instruction Manual page 28

I ~
'Q"
OFF ""
CD
II ,, . . , '
(}Oiil·''·"-"·""1
;smo~oEw 11 ~~~
I
VSC MUER
II~ ~ ~-'·''
~ ~ IC]:~I
tchJ
"'-~
=
I
COMMUNIC.\TrONS RECEIVER
IC-IR7c::J~IIJ
l
POWER r-----SCAN STARTIS10P--,
~
•l!~r==~
~SET
SET
~
SET>RESH - CL AUTO-M
~!SJ~~~
0
c
I
[~@!
PHQtJ£5 REG SQUELCH -
L:J
(5) MEMORY CHANNEL SCAN
1) Press the number keys and [MEMORY CH]
CONTROL or turn the [MEMORY CH] CON·
TROL.
2) Press the number keys and [ENT] key or turn
the TUNING CONTROL.
3) Press a receive MODE SWITCH.
11:.'113
1
2 3
II
II I t
ti
It ti I t
II
..
4 5 6
I I
I I I I
II II tl II ,,
lmll
7 8 9
II tl
I!
ti
II U
11
tl
lml
.
0
ENT
"
,,
I I ll
II
ll I I
J!
(EXAMPLE)
1 ) Press keys
1) Setting memory channel 17.
Setting frequency 118.1000MHz.
Setting AM mode for scanning.
2) Setting memory channel 28.
Setting frequency 147.0800MHz in memory
channel 28.
Setting AM mode for scanning.
3) Starting SELECTED MODE SCAN.
[1] [7] [MEMORY CH] or
Turn [MEMORY CH] CONTROL to
[ 17)
Presskeys [1] [1] [8] [.] [1] [ENT]
Press switch [AM]
Press switch [MEMORY CH·WRITE]
12) Press keys [2]
[8]
[MEMORY CH] or
Turn [MEMORY CH] CONTROL to
[28]
Press keys [1] [4] [7] [ .] [O] [8] [ENT]
Press switch [AM]
Press switch [MEMORY CH·WRITE]
3) Press switch to start scan
[MODE]
MEMORY CHANNEL SCAN repeatedly scans all memories except
those in blank status.
1) Press the number keys on the KEYBOARD and press the
MEMORY CHANNEL SELECTOR CONTROL or turn the
MEMORY CHANNEL SELECTOR CONTROL to choose a
memory channel for storage.
See SECTION 5-4 for further details on selecting a memory
channel.
2) Press the number keys and [ENT] key or turn the TUNING
CONTROL to select the desired frequency.
See SECTION 5-3 FREQUENCY SETTING for more informa·
tion.
3) Press one of the four receive MODE SWITCHES to select the
appropriate receive mode.
NOTE: The scan will not operate unless at least 2 selected fre·
quencies have been stored in memory channels. Addi·
tionally, the scan is not designed to operate in channels
set for PRIORITY SCAN or channels set in a program·
med scan range.
-25-
