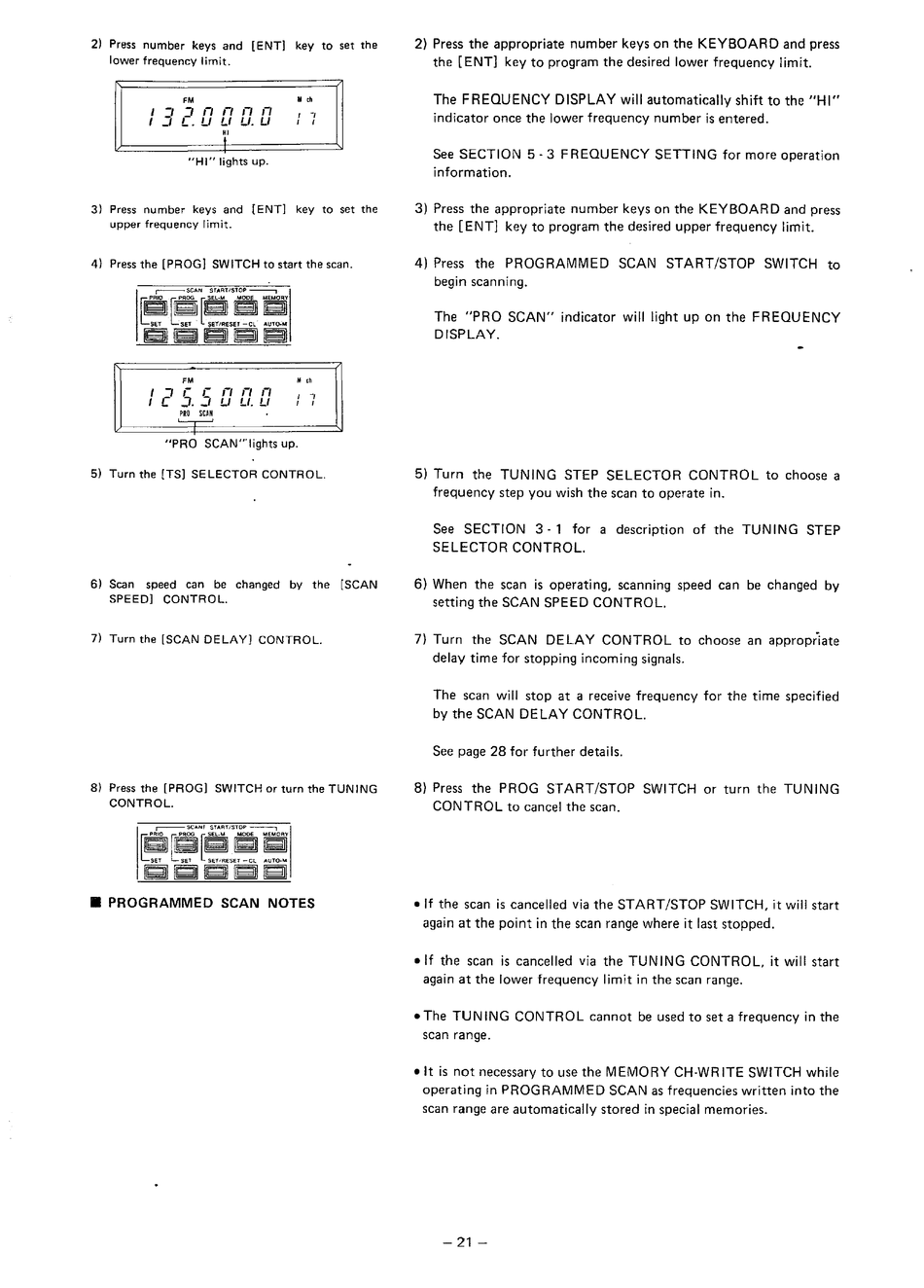

Icom IC-R7000 Instruction Manual page 24

2) Press number keys and [ENT] key to set the
lower frequency limit.
FM
,-,:.~nnnn
I
.J
L. L1 Ll Ll. Ll
~I
"HI" lights up.
M th
I -1
I I
3) Press number keys and [ENT] key to set the
upper frequency limit.
4) Press the [PROG] SWITCH to start the scan.
r---SCAN START/STOP.__...,
fiPRIO PAOG
n
SEL·M MODE MEMORY
~~L~.~~
~~t=J~~
FM
,-,,-,-,-,,-,,-,
I
C .J . .J
Ll Ll. L1
~
• th
I -1
I I
"PRO SCAN"'Iights up.
5) Turn the [TS] SELECTOR CONTROL.
6) Scan speed can be changed by the [SCAN
SPEED] CONTROL.
7) Turn the [SCAN DELAY] CONTROL.
8) Press the [PROG] SWITCH or turn the TUNING
CONTROL.
r - -
SCANf STARTfSTOP .........__._.,
fir{RIO PAOG
n
SEL-M MOOE MEMORY
~~L~.~~
aaa~~
• PROGRAMMED SCAN NOTES
2) Press the appropriate number keys on the KEYBOARD and press
the [ ENT] key to program the desired lower frequency limit.
The FREQUENCY DISPLAY will automatically shift to the "HI"
indicator once the lower frequency number is entered.
See SECTION 5-3 FREQUENCY SETTING for more operation
information.
3) Press the appropriate number keys on the KEYBOARD and press
the [ENT] key to program the desired upper frequency limit.
4) Press the PROGRAMMED SCAN START/STOP SWITCH to
begin scanning.
The "PRO SCAN" indicator will light up on the FREQUENCY
DISPLAY.
5) Turn the TUNING STEP SELECTOR CONTROL to choose a
frequency step you wish the scan to operate in.
See SECTION 3- 1 for a description of the TUNING STEP
SELECTOR CONTROL.
6) When the scan is operating, scanning speed can be changed by
setting the SCAN SPEED CONTROL.
7) Turn the SCAN DELAY CONTROL to choose an appropriate
delay time for stopping incoming signals.
The scan will stop at a receive frequency for the time specified
by the SCAN DELAY CONTROL.
See page 28 for further details.
8) Press the PROG START/STOP SWITCH or turn the TUNING
CONTROL to cancel the scan.
•If the scan is cancelled via the START/STOP SWITCH, it will start
again at the point in the scan range where it last stopped.
•If the scan is cancelled via the TUNING CONTROL. it will start
again at the lower frequency limit in the scan range.
•The TUNING CONTROL cannot be used to set a frequency in the
scan range.
• It is not necessary to use the MEMORY CH-WR ITE SWITCH while
operating in PROGRAMMED SCAN as frequencies written into the
scan range are automatically stored in special memories.
-21-
