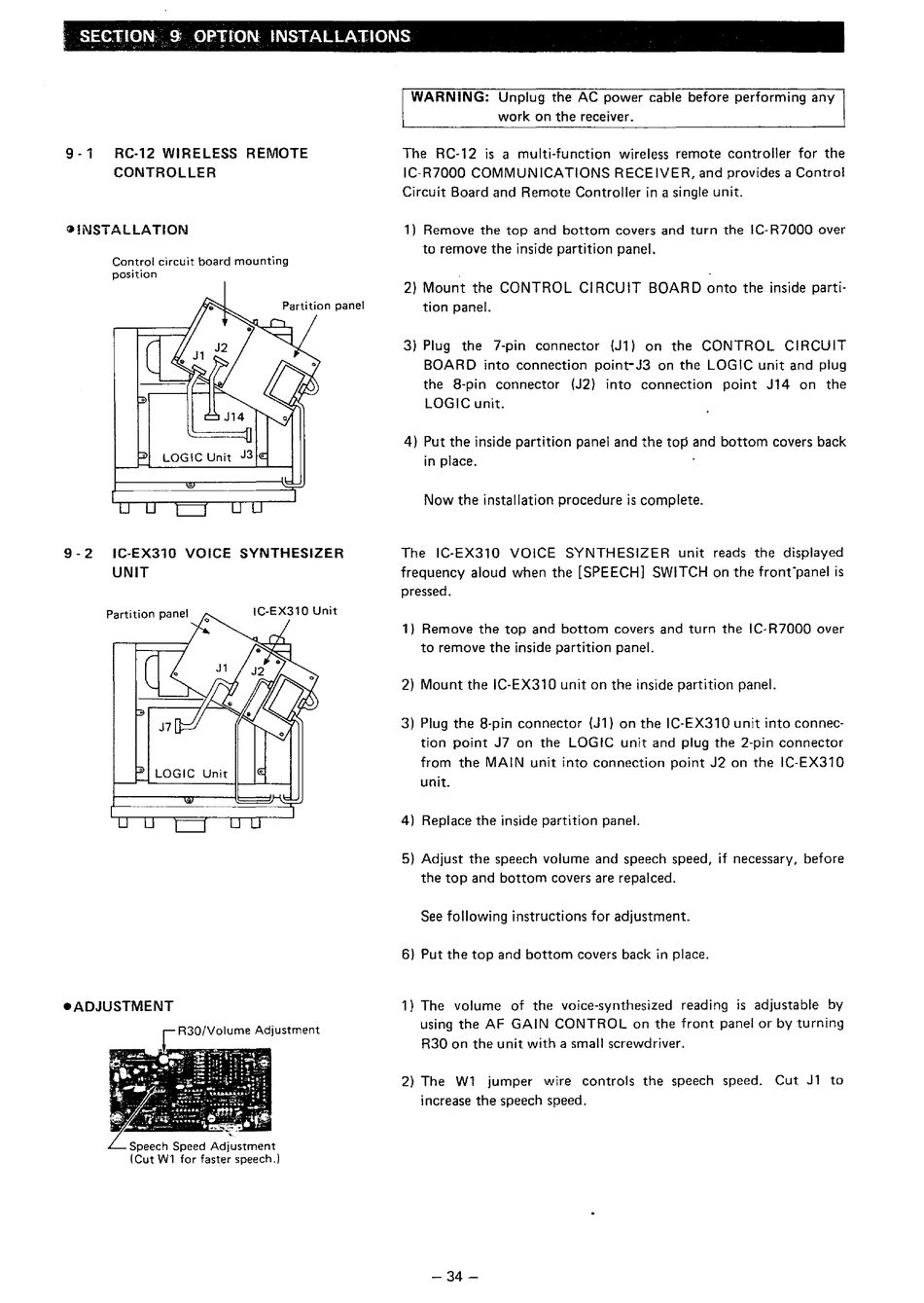

Section 9 Option Installations - Icom IC-R7000 Instruction Manual

SE£.l"l~N,,
9 OPJlON INSTALLATIONS
9-1 RC-12 WIRELESS REMOTE
CONTROLLER
~INSTALLATION
Control circuit board mounting
position
9- 2 IC-EX310 VOICE SYNTHESIZER
UNIT
IC-EX310 Unit
•ADJUSTMENT
WARNING:
Unplug the AC power cable before performing any
work on the receiver.
The RC-12 is a multi-function wireless remote controller for the
IC-R7000 COMMUNICATIONS RECEIVER, and provides a Control
Circuit Board and Remote Controller in a single unit.
1)
Remove the top and bottom covers and turn the IC·R7000 over
to remove the inside partition panel.
2) Mount the CONTROL CIRCUIT BOARD onto the inside parti-
tion panel.
3) Plug the 7-pin connector (Jl) on the CONTROL CIRCUIT
BOARD into connection point-J3 on the LOGIC unit and plug
the 8-pin connector (J2) into connection point J14 on the
LOGIC unit.
4) Put the inside partition panel and the top and bottom covers back
in place.
Now the installation procedure is complete.
The IC-EX310 VOICE SYNTHESIZER unit reads the displayed
frequency aloud when the [SPEECH] SWITCH on the front"panel is
pressed.
1) Remove the top and bottom covers and turn the IC-R7000 over
to remove the inside partition panel.
2) Mount the IC-EX310 unit on the inside partition panel.
3) Plug the 8-pin connector (J1) on the IC-EX310 unit into connec-
tion point J7 on the LOGIC unit and plug the 2-pin connector
from the MAIN unit into connection point J2 on the IC-EX310
unit.
4) Replace the inside partition panel.
5) Adjust the speech volume and speech speed, if necessary, before
the top and bottom covers are repalced.
See following instructions for adjustment.
6) Put the top and bottom covers back in place.
1) The volume of the voice-synthesized reading is adjustable by
using the AF GAIN CONTROL on the front panel or by turning
R30 on the unit with a small screwdriver.
2) The W1 jumper wire controls the speech speed. Cut J 1 to
increase the speech speed.
-34-
