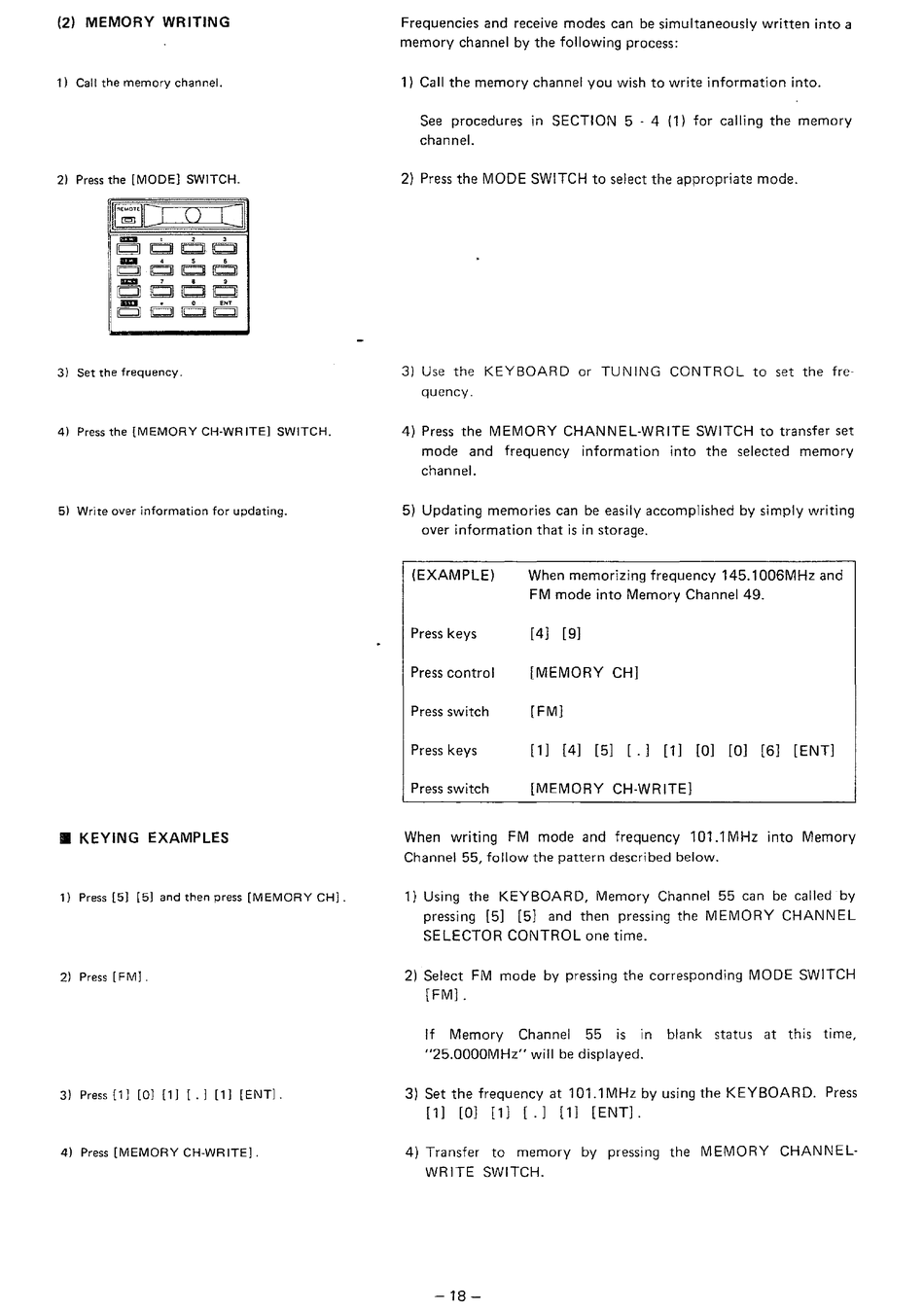

Icom IC-R7000 Instruction Manual page 21

(2)
MEMORY WRITING
1) Call the memory channel.
2) Press the [MODE] SWITCH.
' IIIZlll
I
[QJ
lilll:l
4
s
&
: [gJ lQ [gJ [Q]
!e3l~t6!6
~~~16~
3) Set the frequency.
4) Press the [MEMORY CH-WR ITE] SWITCH.
5) Write over information for updating.
B KEYING EXAMPLES
1) Press [5] [5] and then press [MEMORY CH].
2) Press [ FM].
3) Press [1] [0] [1] [.] [1] [ENT].
4) Press [MEMORY CH-WRITE].
Frequencies and receive modes can be simultaneously written into a
memory channel by the following process:
1) Call the memory channel you wish to write information into.
See procedures in SECTION 5 - 4 (1) for calling the memory
channel.
2) Press the MODE SWITCH to select the appropriate mode.
3)
Use the KEYBOARD or TUNING CONTROL to set the fre-
quency.
4) Press the MEMORY CHANNEL-WRITE SWITCH to transfer set
mode and frequency information into the selected memory
channel.
5) Updating memories can be easily accomplished by simply writing
over information that is in storage.
(EXAMPLE)
Press keys
Press control
Press switch
Press keys
Press switch
When memorizing frequency 145.1 006MHz and
FM mode into Memory Channel
49.
[4] [9]
[MEMORY CH]
[FM]
[1]
[4] [5] [ .] [1]
[0] [0] [6] [ENT]
[MEMORY CH-WRITE)
When writing FM mode and frequency 101.1MHz into Memory
Channel 55, follow the pattern described below.
1) Using the KEYBOARD, Memory Channel 55 can be called by
pressing [5] [5] and then pressing the MEMORY CHANNEL
SELECTOR CONTROL one time.
2)
Select FM mode by pressing the corresponding MODE SWITCH
[FM].
If Memory Channel 55 is in blank status at this time,
"25.0000MHz" will be displayed.
3) Set the frequency at 101.1MHz by using the KEYBOARD. Press
[ 1] [ 0] [ 1) [ . ) [ 1) [EN T) .
4) Transfer to memory by pressing the MEMORY CHANNEL-
WRITE SWITCH.
-18-
